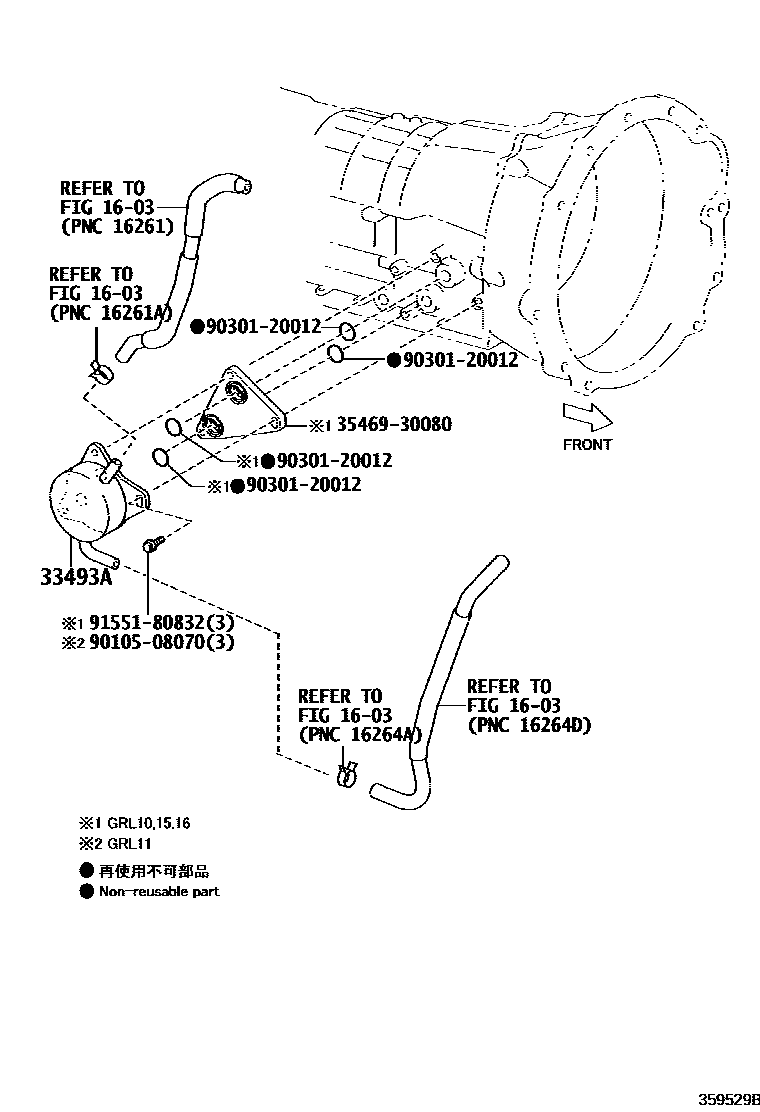

OIL COOLER & TUBE (ATM)

0001 1A760E,A760H,A960E 0002 1AA81E

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

33493ACOOLER, TRANSMISSION OIL(ATF WARMER)

main33493-30020201112-202007

main33493-30040201309-202007

main33493-30050201510-201908

3546930080SPACER (FOR VALVE BODY DOWN SHIFT PLUG)

main35469-30080

9010508070

main90105-08070

9030120012

main90301-20012

9155180832

main91551-80832

6 parts on this diagram · 2 diagrams in section
