1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

1703AIR CLEANER

→ Go to FIG 17-03

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-31020i201201-201510

main22030-31040i201112-201510

main22030-31070i201203-201809

main22030-31100i201510-202007

main22030-36050i201510-201908

22271GASKET, THROTTLE BODY

main22271-31020i201112-201809

main22271-31030i201201-201510

main22271-31040i201510-202007

main22271-36040i201510-201908

22273AGASKET, THROTTLE BODY, NO.2

main22271-36040i201510-201908

23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)

main23100-39645i201112-201510

main23101-31090i201510-202007

main23101-36080i201510-201908

23224GASKET, FUEL PUMP SPACER, RH

main23224-31010i201203-201809

23224DGASKET, FUEL PUMP SPACER

main23224-31020i201510-202007

main23224-36020i201510-201908

23250INJECTOR ASSY, FUEL

main23209-39057-A0i201201-201510

MARK BLACK

main23209-39057-B0i201201-201510

MARK BROWN

23250BRING, O(FOR FUEL INJECTOR)

main90301-05011i201203-201901

main90301-05013i201902-202007

main90301-06018i201112-201510

main90301-07037i201510-201908

23250EINJECTOR ASSY, FUEL(FOR DIRECT)

main23209-31120-01i201203-201809

MARK 1

main23209-31120-02i201203-201809

MARK 2

main23209-31120-03i201203-201809

MARK 3

main23209-31170-06i201510-202007

MARK 6

main23209-31170-07i201510-202007

MARK 7

main23209-31170-08i201510-202007

MARK 8

main23209-36030-01i201510-201908

MARK 1,REFER REPAIR MANUAL

main23209-36030-02i201510-201908

MARK 2,REFER REPAIR MANUAL

main23209-36030-03i201510-201908

MARK 3,REFER REPAIR MANUAL

main23209-39155-A0i201112-201510

MARK YELLOW

main23209-39155-B0i201112-201510

MARK BLACK

main23209-39155-C0i201112-201510

MARK BROWN

main23209-39155-D0i201112-201510

MARK GREEN

23250FINJECTOR ASSY, FUEL(FOR PORT)

main23209-31070i201112-201510

main23209-39275i201510-201908

main23209-39325i201203-201809

main23209-39325i201510-202002

MARK=23250-31140

main23209-39435i202002-202007

MARK=23250-31230

23255ASEAL, FUEL INJECTOR

main23255-31010i201112-201510

main23255-31020i201203-201901

main23255-31030i201902-202007

23256RING, FUEL INJECTOR BACK-UP, NO.1

main23256-25010i201902-202007

NO.1

main23256-25010i201902-201908

main23256-31010i201203-201809

main23256-31010i201510-202007

NO.2

main23256-31010i201510-201901

NO.1

main23256-74010i201112-201510

23256ARING, FUEL PIPE, NO.1

main23256-31010i201510-201511

main23256-31010i201511-201908

ENGINE NO.=W******

23257RING, FUEL INJECTOR BACK-UP, NO.2

main23257-47010i201510-202007

main23257-47010i201511-201908

ENGINE NO.=W******

main23257-74010i201112-201510

23258RING, FUEL INJECTOR BACK-UP, NO.3

main23258-28011i201112-201510

main23258-31010i201203-201809

main23258-31020i201510-202007

main23258-36010i201510-201908

23258ARING, FUEL PIPE, NO.3

main23258-28011i201112-201510

main23258-31010i201510-202007

main23258-31010i201511-201908

ENGINE NO.=W******

23291INSULATOR, INJECTOR VIBRATION

main23291-23010i201203-201804

main23291-28020i201510-201908

main23291-31011i201112-201510

main23291-31030i201510-202007

23291AINSULATOR, INJECTOR VIBRATION

main23291-23010i201510-201803

main23291-28020i201804-202007

main23291-31020i201203-201908

23470LIFTER ASSY, FUEL PUMP

main23470-25010i201704-202007

main23470-31010i201203-201709

main23470-36020i201510-201908

23477GUIDE, FUEL PUMP LIFTER

main23477-31010i201203-201809

main23477-31020i201510-202007

main23477-36020i201510-201908

23695ACLAMP, NOZZLE HOLDER

main23695-31010i201112-201510

main23695-31020i201203-202007

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-31200i201203-201809

main23801-31210i201510-202007

main23801-36031i201510-201809

main23801-36031i201809-201908

ENGINE NO.=W******

main23801-36110i201809-201908

ENGINE NO.=Z******

23801YGASKET

main23893-47010i201510-202007

main23893-47010i201809-201908

ENGINE NO.=W******

23807PIPE SUB-ASSY, FUEL DELIVERY

main23800-36020i201809-201908

ENGINE NO.=Z******

main23800-36050i201510-201809

main23800-36050i201809-201908

ENGINE NO.=W******

main23807-31140i201203-201809

main23807-31150i201112-201510

23809SUPPORT SUB-ASSY, FUEL PIPE

main23809-36010i201510-201809

main23809-36010i201809-201908

ENGINE NO.=W******

23814BPIPE, FUEL DELIVERY

main23800-36040i201510-201908

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-28010i201510-201908

main23842-38010i201203-201809

23881BBRACKET, FUEL HOSE

main23881-36090i201510-201908

23891SPACER, FUEL DELIVERY

main23891-36030i201510-201908

23901TUBE SUB-ASSY, FUEL

main23901-31270i201203-201809

main23901-31280i201510-202007

NO.1

main23901-31310i201112-201510

main23901-31330i201510-202007

NO.2

main23901-36190i201510-201908

23902TUBE SUB-ASSY, FUEL

main23902-31012i201112-201510

main23902-31040i201203-201809

main23902-31090i201510-202007

main23902-36070i201510-201908

7701FUEL TANK & TUBE

→ Go to FIG 77-01

77285NCLAMP, FUEL TUBE, NO.1

main77285-30380i201510-201908

77286GCLAMP, FUEL TUBE, NO.2

main77281-78020i201510-201908

1770347010CASE SUB-ASSY, BOTTOM AIR CLEANER FILTER

main17703-47010

9011006022

main90110-06022

9012608062

main90126-08062

9030105011

main90301-05011

9030105013

main90301-05013

9030131017

main90301-31017

9052014004

main90520-14004

9155180665

main91551-80665

9155180865

main91551-80865

91551G0835

main91551-G0835

91551L0830

main91551-L0830

9167180614

main91671-80614

9415120841

main94151-20841

9672319010

main96723-19010

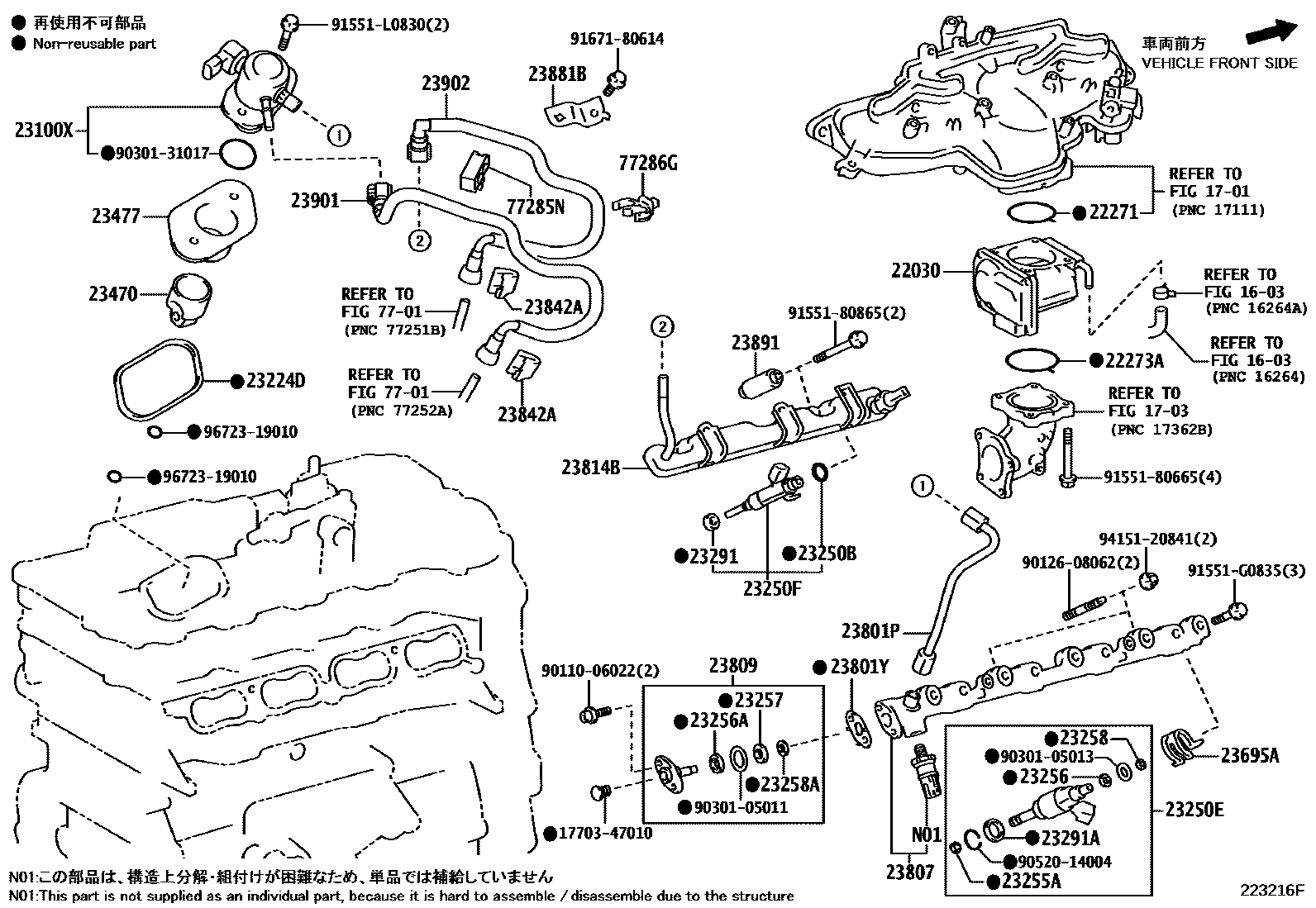

FUEL INJECTION SYSTEM
