ENGINE OVERHAUL GASKET KIT

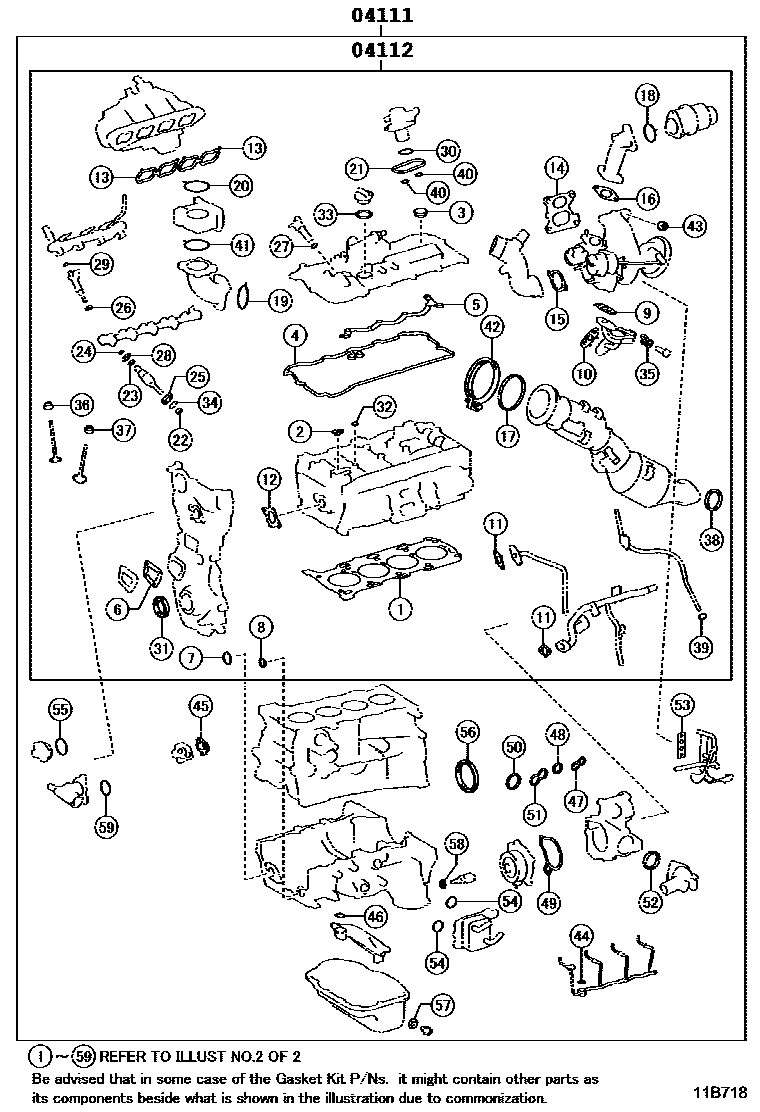

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-31783i201201-201510
sub04111-31D60
main04111-31941i201112-201503
main04111-31942i201503-201505
main04111-31943i201505-201510
main04111-31950i201203-201206
main04111-31951i201206-201503
main04111-31952i201503-201510
sub04111-31D50
main04111-31C30i201510-201706
main04111-31C31i201706-202007
sub04111-31C32
main04111-31C40i201510-201706
main04111-31C41i201706-202007
sub04111-31C42
main04111-36290i201510-201710
main04111-36291i201710-201908
main04111-31602supersedes 04111-31941i201112-201411
KOREA SPEC
04112GASKET KIT, ENGINE VALVE GRIND
main04112-31333i201201-201510
sub04112-31334
main04112-31681i201112-201510
main04112-31690i201203-201206
main04112-31691i201206-201510
sub04112-31692
main04112-31880i201510-201706
main04112-31881i201706-202007
sub04112-31882
main04112-36240i201510-201710
main04112-36241i201710-201908
main04112-31363supersedes 04112-31681i201112-201309
KOREA SPEC

2 parts on this diagram · 12 diagrams in section
