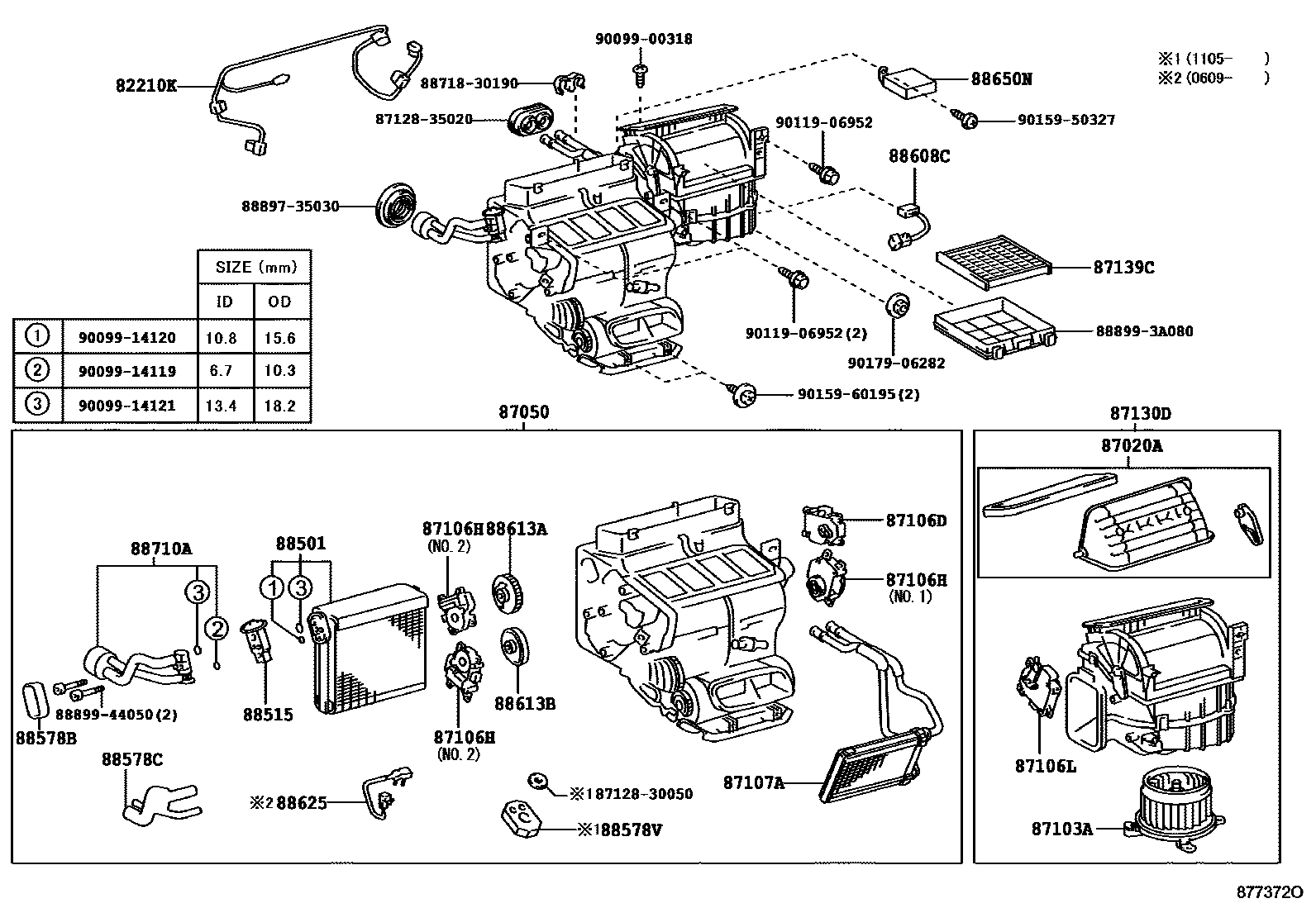

HEATING & AIR CONDITIONING - COOLER UNIT
82210KHARNESS ASSY, AIR CONDITIONER
87020ADAMPER ASSY, HEATER AIR
87050RADIATOR ASSY, AIR CONDITIONER
87103AMOTOR SUB-ASSY, COOLING UNIT, W/FAN
87106DSERVO SUB-ASSY, DAMPER, NO.1
87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)
NO.1
NO.2
87106LSERVO SUB-ASSY, DAMPER
87107AUNIT SUB-ASSY, HEATER RADIATOR
87139CFILTER, CLEAN AIR
MICRO DUST FILTER,OE PART
DEODORANT FILTER
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88515VALVE, COOLER EXPANSION
88578BPACKING, COOLING UNIT, NO.1
88578CPACKING, COOLING UNIT, NO.2
88578VPACKING, COOLING UNIT, NO.3
88608CHARNESS SUB-ASSY, WIRING AIR INDICATOR, NO.2
88613ALEVER, COOLER CONTROL, NO.1
88613BLEVER, COOLER CONTROL, NO.2
88625THERMISTOR, COOLER, NO.1
88650NAMPLIFIER ASSY, AIR CONDITIONER
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT)
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT)
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT)
VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT)
VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT)
VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT)
VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT)
WINDSHIELD DEICER-WITH
WINDSHIELD DEICER-WITH
WINDSHIELD DEICER-WITH; WINDSHIELD DEICER-WITH&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT)
WINDSHIELD DEICER-WITH; WINDSHIELD DEICER-WITH&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT)
VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT)
VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT)
WINDSHIELD DEICER-WITH
WINDSHIELD DEICER-WITH
WINDSHIELD DEICER-WITH; WINDSHIELD DEICER-WITH&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT)
WINDSHIELD DEICER-WITH; WINDSHIELD DEICER-WITH&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT)
VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT)
VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT)
WINDSHIELD DEICER-WITH
WINDSHIELD DEICER-WITH
WINDSHIELD DEICER-WITH; WINDSHIELD DEICER-WITH&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT)
WINDSHIELD DEICER-WITH; WINDSHIELD DEICER-WITH&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT)
88710ATUBE ASSY, AIR CONDITIONER
8712830050GROMMET, HEATER
main87128-30050
8712835020GROMMET, HEATER
main87128-35020
8871830190PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-30190
8889735030VALVE, COOLER MAGNET
main88897-35030
888993A080COVER, EVAPORATOR
main88899-3A080
8889944050COVER, EVAPORATOR
main88899-44050
9009900318
main90099-00318
9009914119
main90099-14119
9009914120
main90099-14120
9009914121
main90099-14121
9011906952
main90119-06952
9015950327
main90159-50327
9015960195
main90159-60195
9017906282
main90179-06282
35 parts on this diagram · 1 diagram in section
