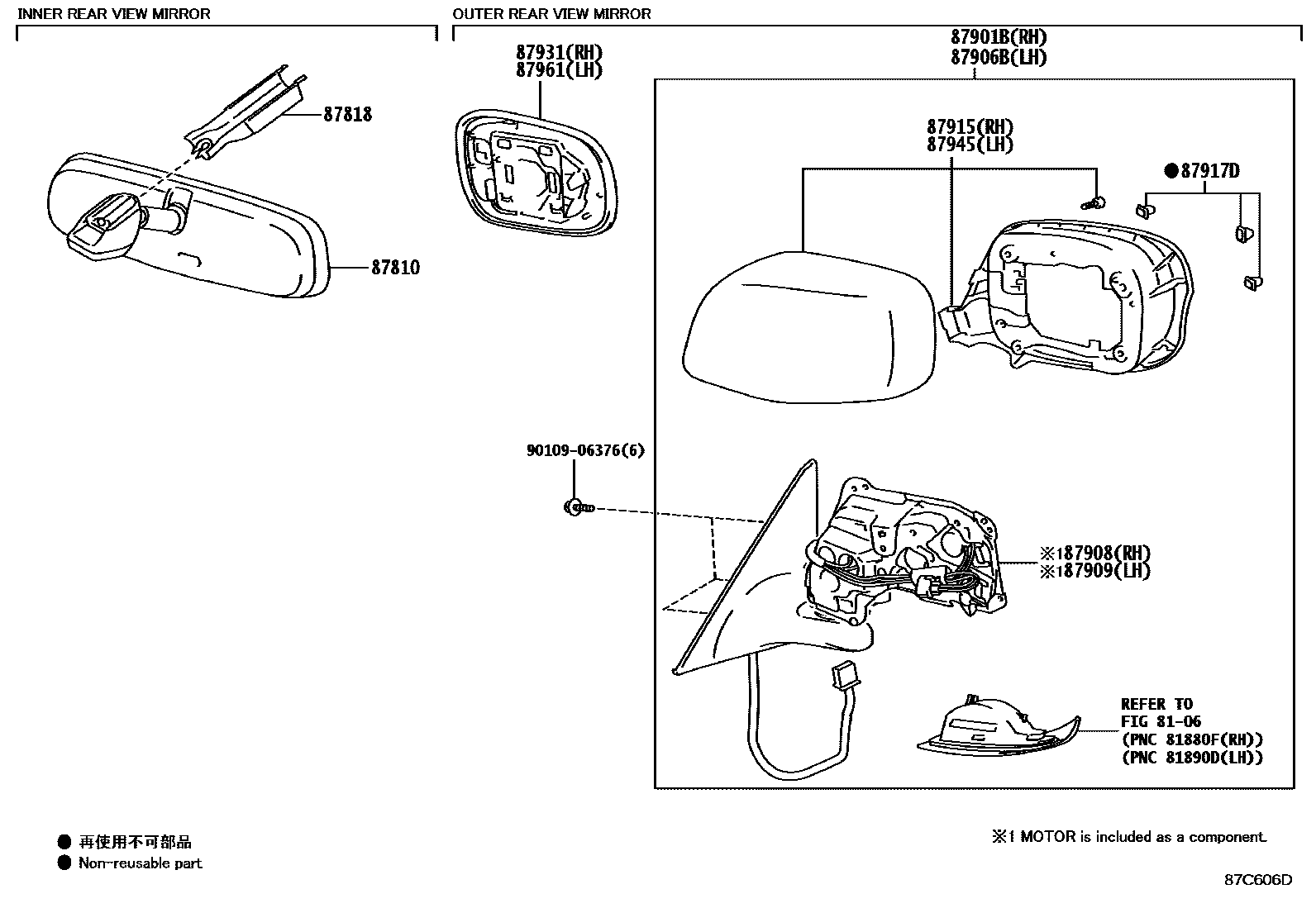

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

87810MIRROR ASSY, INNER REAR VIEW

main87810-30340i200501-200709

main87810-0W241i201007-201010

WITH(*EMV & HDD NAVIGATION SYSTEM)

main87810-0W860supersedes 87810-30341i201010-201112

WITH(*EMV & HDD NAVIGATION SYSTEM)

main87810-30330i200501-200611

KOREA SPEC; TAIWAN SPEC

main87810-30331i200709-200908

KOREA SPEC; TAIWAN SPEC

main87810-30332i200909-201007

KOREA SPEC; TAIWAN SPEC

87818COVER, INNER RR VIEW MIRROR

main87818-30020i200501-200607

main87818-30050i200909

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87901-30210-A0i200709-200909

WHITE PEARL CS.,077

main87901-30210-B0i200709-200909

PREMIUM SILVER,1F2

main87901-30210-B1i200709-200909

DK.GRAY MC.,1G0

main87901-30210-B2i200709-200909

FROSTY PEARL MC.,1G5

main87901-30210-C0i200709-200909

BLACK,212

main87901-30210-D0i200709-200909

RED MC.CS.,3R1

main87901-30210-E0i200709-200909

BEIGE ME.,4T1

main87901-30210-G0i200709-200909

JADE GREEN ME.,6V0

main87901-30210-J0i200709-200909

PREMIUM LT.BLUE.,8T9

main87901-30210-J1i200709-200909

DK.BLUE MC. CC.,8U0

main87901-30240-A0i200501-200607

WHITE PEARL CS.,062

main87901-30240-A1i200501-200709

BLUISH PEARL CS.,074

main87901-30240-A2i200607-200709

WHITE PEARL CS.,077

main87901-30240-B0i200501-200607

DK.GRAY MC.,1E0

main87901-30240-B1i200501-200709

PREMIUM SILVER,1F2

main87901-30240-B2i200607-200709

DK.GRAY MC.,1G0

main87901-30240-C0i200501-200607

BLACK,202

main87901-30240-C1i200607-200709

BLACK,212

main87901-30240-D0i200501-200709

RED MC.CS.,3R1

main87901-30240-E0i200501-200709

PREMIUM BEIGE,4S7

main87901-30240-G0i200501-200607

OLIVE M.M.,6T7

main87901-30240-G1i200607-200709

JADE GREEN ME.,6V0

main87901-30240-J0i200501-200607

DARK BLUE MC.,8P8

main87901-30240-J1i200607-200709

PREMIUM LT.BLUE.,8T9

main87901-30240-J2i200607-200709

DK.BLUE MC. CC.,8U0

main87901-30240-K0i200501-200709

DK.PURPLE M.M.,9AB

main87901-30280-A0i200909-201112

WHITE PEARL CS.,077

main87901-30280-B0i200909-201112

PREMIUM SILVER,1F2

main87901-30280-B1i200909-201112

DK.GRAY MC.,1G0

main87901-30280-B2i200909-201112

FROSTY PEARL MC.,1G5

main87901-30280-C0i200909-201112

BLACK,212

main87901-30280-C2i201007-201112

STARLIGHT BLACK GF.,217

main87901-30280-D0i200909-201112

RED MC.CS.,3R1

main87901-30280-E0i200909-201112

SLEEK ECRU ME.,4U7

main87901-30280-G0i200909-201112

DEEP PERIDOT MC.,6V6

main87901-30280-J0i200909-201007

PREMIUM LT.BLUE.,8T9

main87901-30280-J1i200909-201112

LAPIS LAZULI MC.,8V3

main87901-30210-C1i200709-200909

TAIWAN SPEC,BLACK OPAL MC.,214

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87906-30270-A0i200709-200909

WHITE PEARL CS.,077

main87906-30270-B0i200709-200909

PREMIUM SILVER,1F2

main87906-30270-B1i200709-200909

DK.GRAY MC.,1G0

main87906-30270-B2i200709-200909

FROSTY PEARL MC.,1G5

main87906-30270-C0i200709-200909

BLACK,212

main87906-30270-D0i200709-200909

RED MC.CS.,3R1

main87906-30270-E0i200709-200909

BEIGE ME.,4T1

main87906-30270-G0i200709-200909

JADE GREEN ME.,6V0

main87906-30270-J0i200709-200909

PREMIUM LT.BLUE.,8T9

main87906-30270-J1i200709-200909

DK.BLUE MC. CC.,8U0

main87906-30300-A0i200501-200607

WHITE PEARL CS.,062

main87906-30300-A1i200501-200709

BLUISH PEARL CS.,074

main87906-30300-A2i200607-200709

WHITE PEARL CS.,077

main87906-30300-B0i200501-200607

DK.GRAY MC.,1E0

main87906-30300-B1i200501-200709

PREMIUM SILVER,1F2

main87906-30300-B2i200607-200709

DK.GRAY MC.,1G0

main87906-30300-C0i200501-200607

BLACK,202

main87906-30300-C1i200607-200709

BLACK,212

main87906-30300-D0i200501-200709

RED MC.CS.,3R1

main87906-30300-E0i200501-200709

PREMIUM BEIGE,4S7

main87906-30300-G0i200501-200607

OLIVE M.M.,6T7

main87906-30300-G1i200607-200709

JADE GREEN ME.,6V0

main87906-30300-J0i200501-200607

DARK BLUE MC.,8P8

main87906-30300-J1i200607-200709

PREMIUM LT.BLUE.,8T9

main87906-30300-J2i200607-200709

DK.BLUE MC. CC.,8U0

main87906-30300-K0i200501-200709

DK.PURPLE M.M.,9AB

main87906-30340-A0i200909-201112

WHITE PEARL CS.,077

main87906-30340-B0i200909-201112

PREMIUM SILVER,1F2

main87906-30340-B1i200909-201112

DK.GRAY MC.,1G0

main87906-30340-B2i200909-201112

FROSTY PEARL MC.,1G5

main87906-30340-C0i200909-201112

BLACK,212

main87906-30340-C2i201007-201112

STARLIGHT BLACK GF.,217

main87906-30340-D0i200909-201112

RED MC.CS.,3R1

main87906-30340-E0i200909-201112

SLEEK ECRU ME.,4U7

main87906-30340-G0i200909-201112

DEEP PERIDOT MC.,6V6

main87906-30340-J0i200909-201007

PREMIUM LT.BLUE.,8T9

main87906-30340-J1i200909-201112

LAPIS LAZULI MC.,8V3

main87906-30270-C1i200709-200909

TAIWAN SPEC,BLACK OPAL MC.,214

87908ACTUATOR ASSY, OUTER MIRROR, RH

main87908-30A00-A0i200501-200607

WHITE PEARL CS.,062

main87908-30A00-A1i200501-200709

BLUISH PEARL CS.,074

main87908-30A00-A2i200607-200709

WHITE PEARL CS.,077

main87908-30A00-B0i200501-200607

DK.GRAY MC.,1E0

main87908-30A00-B1i200501-200709

PREMIUM SILVER,1F2

main87908-30A00-B2i200607-200709

DK.GRAY MC.,1G0

main87908-30A00-C0i200501-200607

BLACK,202

main87908-30A00-C1i200607-200709

BLACK,212

main87908-30A00-D0i200501-200709

RED MC.CS.,3R1

main87908-30A00-E0i200501-200709

PREMIUM BEIGE,4S7

main87908-30A00-G0i200501-200607

OLIVE M.M.,6T7

main87908-30A00-G1i200607-200709

JADE GREEN ME.,6V0

main87908-30A00-J0i200501-200607

DARK BLUE MC.,8P8

main87908-30A00-J1i200607-200709

PREMIUM LT.BLUE.,8T9

main87908-30A00-J2i200607-200709

DK.BLUE MC.CC.,8U0

main87908-30A00-K0i200501-200709

DK.PURPLE M.M.,9AB

main87908-30A70-A0i200709-200909

WHITE PEARL CS.,077

main87908-30A70-B0i200709-200909

PREMIUM SILVER,1F2

main87908-30A70-B1i200709-200909

DK.GRAY MC.,1G0

main87908-30A70-B2i200709-200909

FROSTY PEARL MC.,1G5

main87908-30A70-C0i200709-200909

BLACK,212

main87908-30A70-D0i200709-200909

RED MC.CS.,3R1

main87908-30A70-E0i200709-200909

BEIGE ME.,4T1

main87908-30A70-G0i200709-200909

JADE GREEN ME.,6V0

main87908-30A70-J0i200709-200909

PREMIUM LT.BLUE.,6V0 ,8T9

main87908-30A70-J1i200709-200909

DK.BLUE MC. CC.,8U0

main87908-30B80-A0i200909-201112

WHITE PEARL CS.,077

main87908-30B80-B0i200909-201112

PREMIUM SILVER,1F2

main87908-30B80-B1i200909-201112

DK.GRAY MC.,1G0

main87908-30B80-B2i200909-201112

FROSTY PEARL MC.,1G5

main87908-30B80-C0i200909-201112

BLACK,212

main87908-30B80-C2i201007-201112

STARLIGHT BLACK GF.,217

main87908-30B80-D0i200909-201112

RED MC.CS.,214 ,3R1

main87908-30B80-E0i200909-201112

SLEEK ECRU ME.,3R1 ,4U7

main87908-30B80-G0i200909-201112

DEEP PERIDOT MC.,4T1 ,6V6

main87908-30B80-J0i200909-201007

PREMIUM LT.BLUE.,6V0 ,8T9

main87908-30B80-J1i200909-201112

LAPIS LAZULI MC.,8T9 ,8V3

87909ACTUATOR ASSY, OUTER MIRROR, LH

main87909-30A30-A0i200501-200607

WHITE PEARL CS.,062

main87909-30A30-A1i200501-200709

BLUISH PEARL CS.,074

main87909-30A30-A2i200607-200709

WHITE PEARL CS.,077

main87909-30A30-B0i200501-200607

DK.GRAY MC.,1E0

main87909-30A30-B1i200501-200709

PREMIUM SILVER,1F2

main87909-30A30-B2i200607-200709

DK.GRAY MC.,1G0

main87909-30A30-C0i200501-200607

BLACK,202

main87909-30A30-C1i200607-200709

BLACK,212

main87909-30A30-D0i200501-200709

RED MC.CS.,3R1

main87909-30A30-E0i200501-200709

PREMIUM BEIGE,4S7

main87909-30A30-G0i200501-200607

OLIVE M.M.,6T7

main87909-30A30-G1i200607-200709

JADE GREEN ME.,6V0

main87909-30A30-J0i200501-200607

DARK BLUE MC.,8P8

main87909-30A30-J1i200607-200709

PREMIUM LT.BLUE.,8T9

main87909-30A30-J2i200607-200709

DK.BLUE MC.CC.,8U0

main87909-30A30-K0i200501-200709

DK.PURPLE M.M.,9AB

main87909-30B20-A0i200709-200909

WHITE PEARL CS.,077

main87909-30B20-B0i200709-200909

PREMIUM SILVER,1F2

main87909-30B20-B1i200709-200909

DK.GRAY MC.,1G0

main87909-30B20-B2i200709-200909

FROSTY PEARL MC.,1G5

main87909-30B20-C0i200709-200909

BLACK,212

main87909-30B20-D0i200709-200909

RED MC.CS.,214 ,3R1

main87909-30B20-E0i200709-200909

BEIGE ME.,4T1

main87909-30B20-G0i200709-200909

JADE GREEN ME.,6V0

main87909-30B20-J0i200709-200909

PREMIUM LT.BLUE.,6V0 ,8T9

main87909-30B20-J1i200709-200909

DK.BLUE MC. CC.,8U0

main87909-30C50-A0i200909-201112

WHITE PEARL CS.,077

main87909-30C50-B0i200909-201112

PREMIUM SILVER,1F2

main87909-30C50-B1i200909-201112

DK.GRAY MC.,1G0

main87909-30C50-B2i200909-201112

FROSTY PEARL MC.,1G5

main87909-30C50-C0i200909-201112

BLACK,212

main87909-30C50-C2i201007-201112

STARLIGHT BLACK GF.,217

main87909-30C50-D0i200909-201112

RED MC.CS.,214 ,3R1

main87909-30C50-E0i200909-201112

SLEEK ECRU ME.,3R1 ,4U7

main87909-30C50-G0i200909-201112

DEEP PERIDOT MC.,4T1 ,6V6

main87909-30C50-J0i200909-201007

PREMIUM LT.BLUE.,6V0 ,8T9

main87909-30C50-J1i200909-201112

LAPIS LAZULI MC.,8T9 ,8V3

87915COVER, OUTER MIRROR, RH

main87915-50030-A0i200501-200607

WHITE PEARL CS.,062

main87915-50030-A3i200501-200709

BLUISH PEARL CS.,074

main87915-50030-A4i200607-200709

WHITE PEARL CS.,077

main87915-50030-B1i200501-200607

DK.GRAY MC.,1E0

main87915-50030-B2i200501-200709

PREMIUM SILVER,1F2

main87915-50030-B3i200607-200709

DK.GRAY MC.,1G0

main87915-50030-C0i200501-200607

BLACK,202

main87915-50030-C1i200607-200709

BLACK,212

main87915-50030-D2i200501-200709

RED MC.CS.,3R1

main87915-50030-E2i200501-200709

PREMIUM BEIGE,4S7

main87915-50030-G2i200501-200607

OLIVE M.M.,6T7

main87915-50030-G3i200607-200709

JADE GREEN ME.,6V0

main87915-50030-J0i200501-200607

DARK BLUE MC.,8P8

main87915-50030-J2i200607-200709

PREMIUM LT.BLUE.,8T9

main87915-50030-J3i200607-200709

DK.BLUE MC. CC.,8U0

main87915-50030-K0i200501-200709

DK.PURPLE M.M.,9AB

87917DCLIP, OUTER MIRROR

main87917-3A060×2i200501-200709

87931OUTER MIRROR, RH

main87931-30A70i200709-201112

main87931-50460i200501-200709

main87931-30A90i200709-201112

TAIWAN SPEC

87945COVER, OUTER MIRROR, LH

main87945-50030-A0i200501-200607

WHITE PEARL CS.,062

main87945-50030-A3i200501-200709

BLUISH PEARL CS.,074

main87945-50030-A4i200607-200709

WHITE PEARL CS.,077

main87945-50030-B1i200501-200607

DK.GRAY MC.,1E0

main87945-50030-B2i200501-200709

PREMIUM SILVER,1F2

main87945-50030-B3i200607-200709

DK.GRAY MC.,1G0

main87945-50030-C0i200501-200607

BLACK,202

main87945-50030-C1i200607-200709

BLACK,212

main87945-50030-D2i200501-200709

RED MC.CS.,3R1

main87945-50030-E2i200501-200709

PREMIUM BEIGE,4S7

main87945-50030-G2i200501-200607

OLIVE M.M.,6T7

main87945-50030-G3i200607-200709

JADE GREEN ME.,6V0

main87945-50030-J0i200501-200607

DARK BLUE MC.,8P8

main87945-50030-J2i200607-200709

PREMIUM LT.BLUE.,8T9

main87945-50030-J3i200607-200709

DK.BLUE MC. CC.,8U0

main87945-50030-K0i200501-200709

DK.PURPLE M.M.,9AB

87961MIRROR OUTER, LH

main87961-30B20i200709-201112

main87961-50430i200501-200709

main87961-30B40i200709-201112

TAIWAN SPEC

9010906376

main90109-06376
