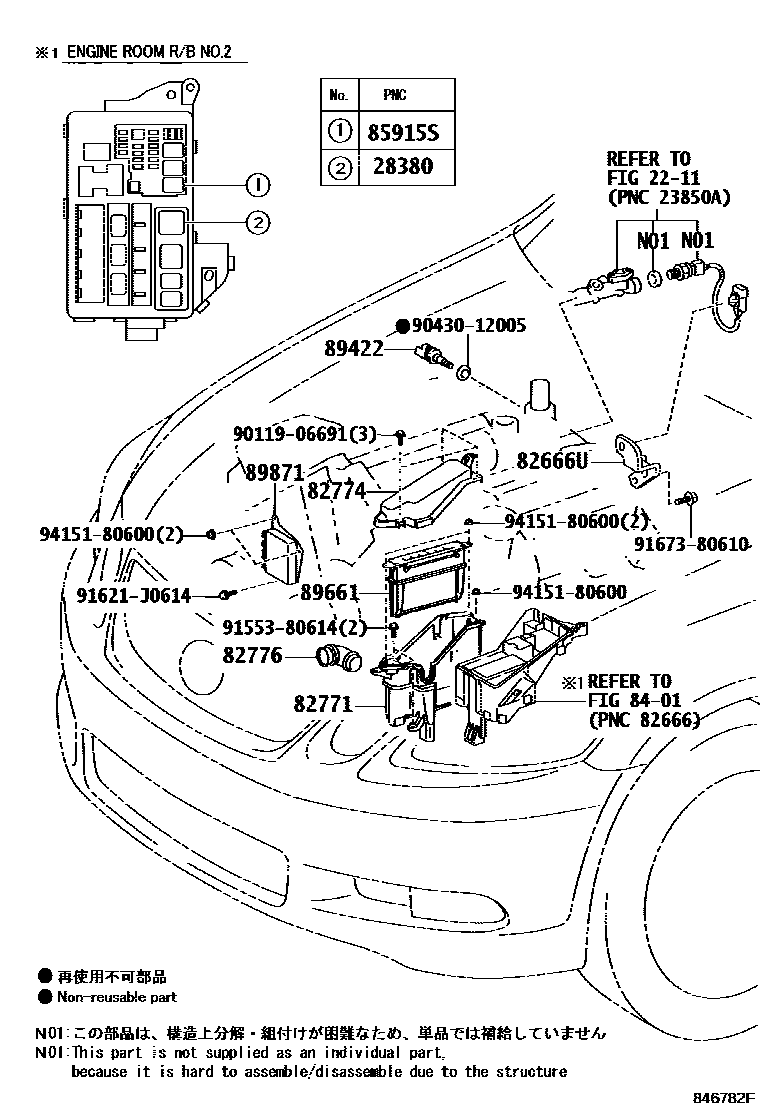

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

28380RELAY ASSY, FUEL PUMP

main90987-03003i2GRFSE,3GRFSE,3UZFE..GRS19#,UZS190200501-200709

82666UHOLDER, CONNECTOR

main82666-30780iGRS19#200501-200607

82771BOX, ENGINE ROOM ECU

main82771-30040iGRS19#,UZS190200501-200709

main82771-30060iURS190200709-201112

82774COVER, ENGINE ROOM ECU

main82774-30050iGRS19#200501-200607

main82774-30060iURS190200709

82776DUCT, ENGINE ROOM ECU OUTLET

main82776-30100iGRS19#200501-200607

main82776-30110iURS190200709

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85915SRELAY, HEATER (FOR AIR FUEL RATIO SENSOR)

main90987-02027iGRS19#200501-200709

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-30030iUZS190200501-200709

main89422-33030iGRS19#200501-200709

89661COMPUTER, ENGINE CONTROL

main89661-30D91iGRS191200706-200709

main89661-30E00iGRS196200607-200705

main89661-30E01iGRS196200706-200709

main89661-30J20iGRS191200709-200801

main89661-30J21iGRS191200802-200805

main89661-30J30iGRS196200709-200801

main89661-30J31iGRS196200802-200805

main89661-30J32iGRS196200806-200809

main89661-30K00iURS190200709-200806

main89661-30L60iURS190200809-200812

main89661-30L61iURS190200901-200909

main89661-30M40iGRS191200809-200903

main89661-30M41iGRS191200904-200909

main89661-30M50iGRS196200809-200903

main89661-30M51iGRS196200904-200909

main89661-30P90iURS190201007-201109

main89661-30P91iURS190201110-201112

main89661-30R00iGRS196200909-201006

main89661-30T20iGRS191201007-201112

main89661-30T30iGRS196201007-201112

main89666-30280iUZS190200501-200506

main89666-30281iUZS190200507-200510

main89666-30360iGRS195200501-200504

main89666-30361iGRS195200505-200602

main89666-30362iGRS195200602-200607

main89661-30A10supersedes 89666-30351iGRS190200501-200504

KOREA SPEC

main89661-30A11supersedes 89666-30351iGRS190200505-200602

KOREA SPEC

main89661-30A12supersedes 89666-30352iGRS190200602-200607

KOREA SPEC

main89661-30A20supersedes 89666-30351iGRS190200501-200504

TAIWAN SPEC

main89661-30A21supersedes 89666-30351iGRS190200505-200602

TAIWAN SPEC

main89661-30A22supersedes 89666-30352iGRS190200602-200607

TAIWAN SPEC

main89661-30B50supersedes 89666-30282iUZS190200501-200607

TAIWAN SPEC

main89661-30B70supersedes 89666-30282iUZS190200501-200607

KOREA SPEC

main89661-30D70supersedes 89661-30D60iUZS190200607-200709

KOREA SPEC

main89661-30E30supersedes 89661-30D90iGRS191200607-200709

TAIWAN SPEC

main89661-30E40supersedes 89661-30D90iGRS191200607-200709

KOREA SPEC

main89661-30E80supersedes 89661-30D60iUZS190200607-200709

TAIWAN SPEC

main89661-30J60supersedes 89661-30J22iGRS191200709-200809

KOREA SPEC; TAIWAN SPEC

main89661-30K60supersedes 89661-30K01iURS190200709-200809

KOREA SPEC

main89661-30M10iURS190200809-200909

KOREA SPEC

main89661-30M80iGRS191200809-200909

KOREA SPEC; TAIWAN SPEC

main89661-30P80supersedes 89661-30P30iURS190200909-201111

KOREA SPEC

main89661-30R30supersedes 89661-30Q90iGRS191200909-201112

KOREA SPEC; TAIWAN SPEC

89871DRIVER, INJECTOR

main89871-30030iGRS19#200501-200607

main89871-50010×2iURS190200709-201112

main89871-53010iGRS19#200709-201112

9011906691

main90119-06691

9043012005

main90430-12005

9155380614

main91553-80614

91621J0614

main91621-J0614

9167380610

main91673-80610

9415180600

main94151-80600

17 parts on this diagram · 3 diagrams in section
