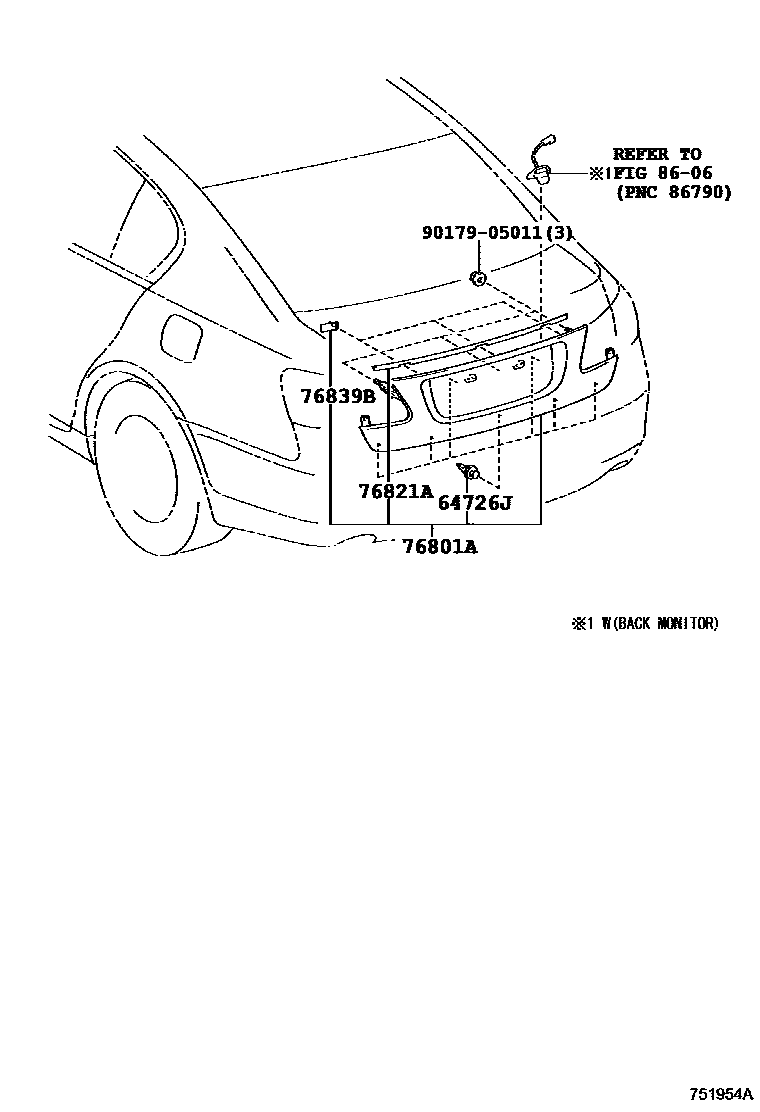

64726JCLIP, LUGGAGE TRIM, REAR

main64726-30080×7i200501-200607

76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE

main76801-30150-A0supersedes 76801-30140-A0i200501-200607

WITH(BACK MONITOR),WHITE PEARL CS.,062

main76801-30150-A1supersedes 76801-30140-A1i200501-200709

WITH(BACK MONITOR),BLUISH PEARL CS.,074

main76801-30150-A2supersedes 76801-30140-A2i200607-200709

WITH(BACK MONITOR),WHITE PEARL CS.,077

main76801-30150-B0supersedes 76801-30140-B0i200501-200607

WITH(BACK MONITOR),DK.GRAY MC.,1E0

main76801-30150-B1supersedes 76801-30141-B1i200709-201006

WITH(BACK MONITOR),PREMIUM SILVER,1F2

main76801-30150-B2supersedes 76801-30141-B2i200709-201006

WITH(BACK MONITOR),DK.GRAY MC.,1G0

main76801-30150-B3supersedes 76801-30141-B3i200709-201006

WITH(BACK MONITOR),FROSTY PEARL MC.,1G5

main76801-30150-C0supersedes 76801-30140-C0i200501-200607

WITH(BACK MONITOR),BLACK,202

main76801-30150-C1supersedes 76801-30141-C1i200709-201006

WITH(BACK MONITOR),BLACK,212

main76801-30150-C2supersedes 76801-30140-C2i200709-201006

WITH(BACK MONITOR),BLACK OPAL MC.,214

main76801-30150-D0supersedes 76801-30140-D0i200501-200709

WITH(BACK MONITOR),RED MC.CS.,3R1

main76801-30150-E0supersedes 76801-30140-E0i200501-200709

WITH(BACK MONITOR),PREMIUM BEIGE,4S7

main76801-30150-E1supersedes 76801-30140-E1i200709-200909

WITH(BACK MONITOR),BEIGE ME.,4T1

main76801-30150-E2supersedes 76801-30140-E2i200909-201006

WITH(BACK MONITOR),SLEEK ECRU ME.,4U7

main76801-30150-G0supersedes 76801-30140-G0i200501-200607

WITH(BACK MONITOR),OLIVE M.M.,6T7

main76801-30150-G1supersedes 76801-30140-G1i200709-200909

WITH(BACK MONITOR),JADE GREEN ME.,6V0

main76801-30150-G2supersedes 76801-30140-G2i200909-201006

WITH(BACK MONITOR),DEEP PERIDOT MC.,6V6

main76801-30150-J0supersedes 76801-30140-J0i200501-200607

WITH(BACK MONITOR),DARK BLUE MC.,8P8

main76801-30150-J1supersedes 76801-30140-J1i200607-200709

WITH(BACK MONITOR),PREMIUM LT.BLUE.,8T9

main76801-30150-J2supersedes 76801-30140-J2i200709-200909

WITH(BACK MONITOR),DK.BLUE MC. CC.,8U0

main76801-30150-J3supersedes 76801-30140-J3i200909-201006

WITH(BACK MONITOR),LAPIS LAZULI MC.,8V3

main76801-30150-K0supersedes 76801-30140-K0i200501-200709

WITH(BACK MONITOR),DK.PURPLE M.M.,9AB

main76801-30151-A2supersedes 76801-30141-A2i201006-201112

WITH(BACK MONITOR),WHITE PEARL CS.,077

main76801-30151-B1supersedes 76801-30141-B1i201006-201112

WITH(BACK MONITOR),PREMIUM SILVER,1F2

main76801-30151-B2supersedes 76801-30141-B2i201006-201112

WITH(BACK MONITOR),DK.GRAY MC.,1G0

main76801-30151-B3supersedes 76801-30141-B3i201006-201112

WITH(BACK MONITOR),FROSTY PEARL MC.,1G5

main76801-30151-C1supersedes 76801-30141-C1i201006-201112

WITH(BACK MONITOR),BLACK,212

main76801-30151-C3supersedes 76801-30141-C3i201007-201112

WITH(BACK MONITOR),STARLIGHT BLACK GF.,217

main76801-30151-D0supersedes 76801-30141-D0i201006-201112

WITH(BACK MONITOR),RED MC.CS.,3R1

main76801-30151-E2supersedes 76801-30141-E2i201006-201112

WITH(BACK MONITOR),SLEEK ECRU ME.,4U7

main76801-30151-G2supersedes 76801-30141-G2i201006-201112

WITH(BACK MONITOR),DEEP PERIDOT MC.,6V6

main76801-30151-J3supersedes 76801-30141-J3i201006-201112

WITH(BACK MONITOR),LAPIS LAZULI MC.,8V3

76821APROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH

main76821-30020i200501-200607

76839BCOVER, BACK DOOR GARNISH

main76839-30010×3i200501-200607

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

9017905011

main90179-05011

REAR MOULDING
