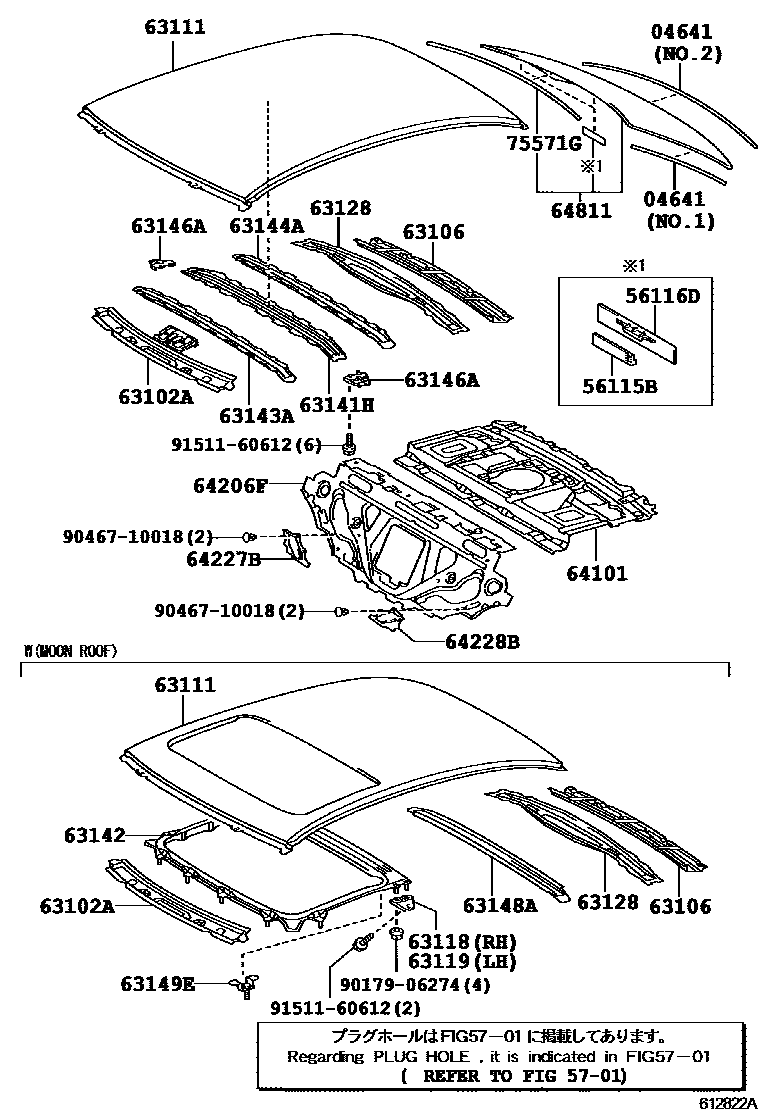

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1MOON ROOF

04641DAM KIT, BACK WINDOW GLASS

main56117-30350×2iGRS19#200501-200607

NO.1

main56118-30090iGRS191,196,UZS190200501-200709

NO.2

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30120×2iGRS19#200501-200607

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050×2iGRS191,196,UZS190200501-200709

5701HOLE PLUG

→ Go to FIG 57-01

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-30270iGRS19#,URS190; GRS191; GRS191,URS190200709-200902

KOREA SPEC&MOON ROOF-WITH; MOON ROOF-WITH; TAIWAN SPEC&MOON ROOF-WITH

main63102-30901iGRS19#,URS190; GRS191; GRS191,URS190200903

KOREA SPEC&MOON ROOF-WITH; MOON ROOF-WITH; TAIWAN SPEC&MOON ROOF-WITH

63106REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.4

main63106-30080iGRS19#200501-200607

63111PANEL, ROOF

main63111-30620iGRS191; GRS191,URS190200709

KOREA SPEC; TAIWAN SPEC

main63111-30630iGRS191,UZS190200607-200709

KOREA SPEC&MOON ROOF-WITH; TAIWAN SPEC&MOON ROOF-WITH

main63111-30650supersedes 63111-30640iGRS19#,UZS190200607-200709

MOON ROOF-WITH

63118SUPPORT, ROOF PANEL, RH

main63118-30121iGRS191,UZS190200607-200709

KOREA SPEC&MOON ROOF-WITH; TAIWAN SPEC&MOON ROOF-WITH

63119SUPPORT, ROOF PANEL, LH

main63118-30121iGRS19#200501-200607

MOON ROOF-WITH

63128REINFORCEMENT, ROOF PANEL, NO.6

main63128-30040iGRS191,196,UZS190200501-200709

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-30210iGRS19#200501-200607

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-30120iGRS19#200501-200607

MOON ROOF-WITH

63143AREINFORCEMENT, ROOF PANEL

main63143-30250iGRS19#200501-200607

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-30180iGRS19#200501-200607

63146ABRACKET, ROOF PANEL REINFORCEMENT, NO.1

main63146-30110×2iGRS19#200501-200607

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-30110iGRS19#200501-200607

MOON ROOF-WITH

63149EBRACKET, ROOF PANEL REINFORCEMENT, NO.2

main63149-30080×2iGRS19#200501-200607

MOON ROOF-WITH

64101PANEL SUB-ASSY, UPPER BACK

main64101-30860iGRS19#,UZS190200501-200709

64206FPANEL SUB-ASSY, ROOM PARTITION

main64206-30050iGRS19#,UZS190200501-200705

main64206-30051iGRS19#,UZS190200705-200709

64227BEXTENSION, CENTER FLOOR TO BLACE, NO.1

main64227-30120iGRS19#,UZS190200501-200709

64228BEXTENSION, CENTER FLOOR TO BRACE, NO.2

main64228-30100iGRS19#,UZS190200501-200709

64811GLASS, BACK WINDOW

main64801-30A30iGRS19#200501-200607

*UVCEHT,T=3.5,GREEN

main64801-30A51iGRS191,URS190200909

*UVCEHT,T=3.5,GREEN,KOREA SPEC

75571GMOULDING, BACK WINDOW, OUTSIDE UPPER, NO.1

main75571-30380iGRS19#200501-200607

9017906274

main90179-06274

9046710018

main90467-10018

9151160612

main91511-60612

26 parts on this diagram · 2 diagrams in section
