MAT & CARPET

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-30B10-A0iGRS191200709-200909

IVORY,TRIM0#

main58510-30B10-A1iGRS191200909-201112

IVORY,TRIM0#

main58510-30B10-B0iGRS191200709-201112

LT.GRAY,TRIM1#

main58510-30B10-C0iGRS191200709-201112

BLACK,TRIM2#

main58510-30B20-A0iURS190200709-200909

IVORY,TRIM0#

main58510-30B20-A1iURS190200909-201112

IVORY,TRIM0#

main58510-30B20-B0iURS190200709-201112

LT.GRAY,TRIM1#

main58510-30B20-C0iURS190200709-201112

BLACK,TRIM2#

main58510-30B40-A0iGRS196200709-200909

IVORY,TRIM0#

main58510-30B40-A1iGRS196200909-201112

IVORY,TRIM0#

main58510-30B40-B0iGRS196200709-201112

LT.GRAY,TRIM1#

main58510-30B40-C0iGRS196200709-201112

BLACK,TRIM2#

main58510-3K630-A0iGRS190,191,UZS190200501-200709

IVORY,TRIM0#

main58510-3K630-B0iGRS190,191,UZS190200501-200709

GRAY,TRIM1#

main58510-3K630-C0iGRS190,191,UZS190200501-200709

BLACK,TRIM2#

main58510-3K770-A0iGRS195,196200501-200608

IVORY,TRIM0#

main58510-3K770-B0iGRS195,196200501-200608

GRAY,TRIM1#

main58510-3K770-C0iGRS195,196200501-200608

BLACK,TRIM2#

main58510-3K771-A0iGRS196200608-200709

IVORY,TRIM0#

main58510-3K771-B0iGRS196200608-200709

GRAY,TRIM1#

main58510-3K771-C0iGRS196200608-200709

BLACK,TRIM2#

main58510-30C30-D0iGRS191200902-200903

RED X BLACK INTERIOR PACKAGE,RED,TRIM20

main58510-30C40-D0iURS190200902-200903

RED X BLACK INTERIOR PACKAGE,RED,TRIM20

main58510-30C50-D0iGRS196200902-200903

RED X BLACK INTERIOR PACKAGE,RED,TRIM20

58521BHOOK, FLOOR CARPET

main58521-30140×12iGRS19#200501-200607

58564HCLIP(FOR REAR FLOOR CARPET)

main90467-05164-B8×2iGRS19#,URS190200709-201112

LT.GRAY

58571FPAD, FRONT FLOOR, FRONT

main58571-30050iGRS190200501-200607

main58571-30060iGRS195200501-200607

main58571-30170iGRS191,URS190200709

58574EPAD, REAR FLOOR SILENCER, NO.1

main58673-30020iGRS191,196,UZS190200501-200709

58621GPAD, FRONT FLOOR SILENCER, RH

main58621-30150iGRS19#200501-200607

58622CPAD, FRONT FLOOR SILENCER, LH

main58622-30160iGRS190200501-200607

main58622-30170iGRS195200501-200607

58624CPAD, CENTER FLOOR SILENCER, RH

main58624-30140iGRS19#200501-200607

58625CPAD, CENTER FLOOR SILENCER, LH

main58625-30090iGRS19#200501-200607

58674BPAD, REAR FLOOR SILENCER, NO.2

main58674-30020iGRS19#200501-200607

6213530020FRAME, REAR SIDE WINDOW

main62135-30020

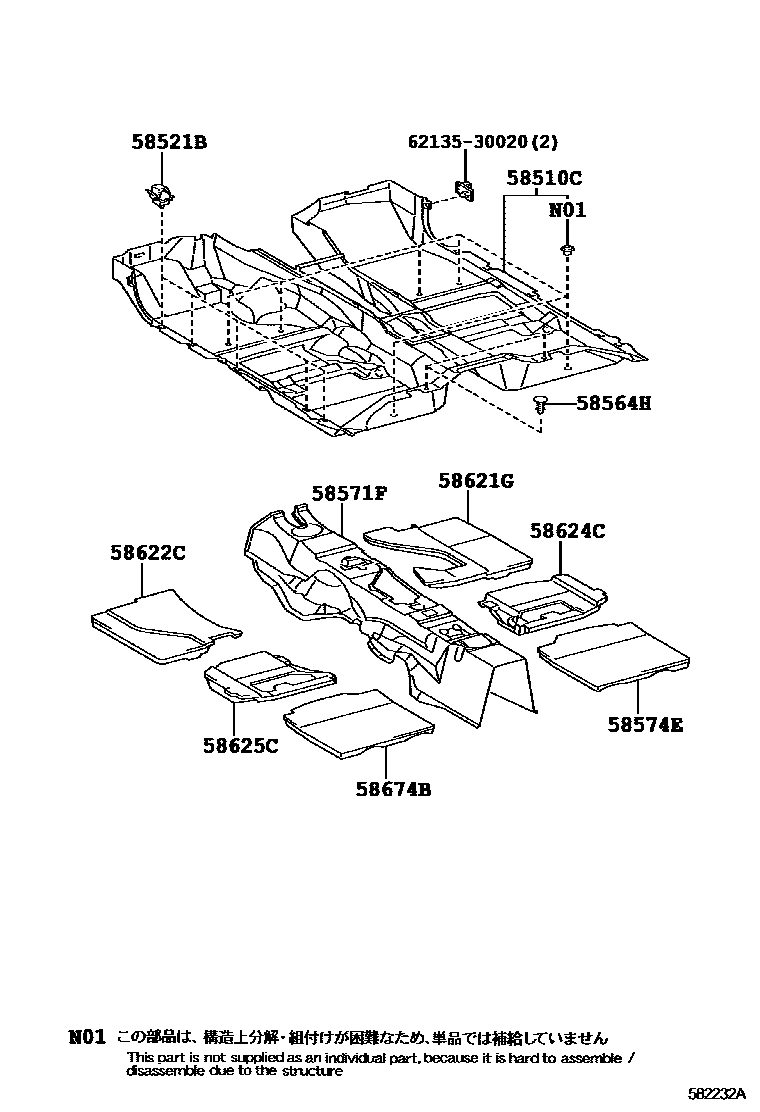

11 parts on this diagram · 1 diagram in section
