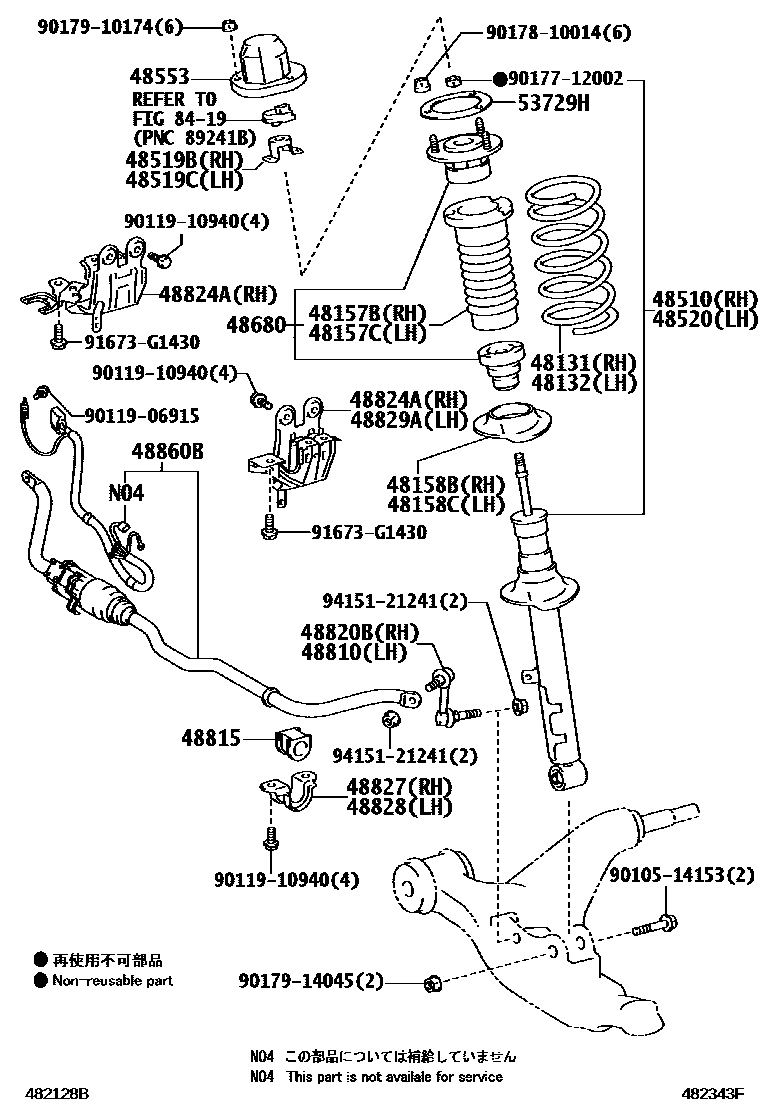

FRONT SPRING & SHOCK ABSORBER

0001 1W(ACTIVE STABILIZER SUSPENSIO0002 1 0003 1 0004 1W(ACTIVE STABILIZER SUSPENSIO

48131SPRING, FRONT COIL, RH

main48131-30A40iGRS190200501-200506

main48131-30A70iGRS191,UZS190200501-200708

main48131-30A90iGRS195200506-200607

main48131-30B00iGRS195200501-200506

main48131-30B40iGRS196200607-200704

main48131-30C00iGRS191200709-201112

main48131-30B30iUZS190200607-200708

STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)

main48131-30C20supersedes 48131-30C10iURS190200709-201112

STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)

main48131-30C30supersedes 48131-30B41iGRS196200709-201112

WITH(AVS)

48132SPRING, FRONT COIL, LH

main48131-30A40iGRS190200501-200506

main48131-30A70iGRS190200506-200607

main48131-30A90iGRS195200506-200607

main48131-30B00iGRS195200501-200506

main48131-30B40iGRS196200607-200704

main48131-30C00iGRS191200709

main48131-30B30iUZS190200607-200709

STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)

main48131-30C20supersedes 48131-30C10iURS190200709

STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)

main48131-30C30supersedes 48131-30B41iGRS196200709

WITH(AVS)

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-30250iGRS190200501-200607

main48157-30260iGRS196200709

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-30250iGRS190200501-200607

main48157-30260iGRS196200501-200709

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-30020iGRS19#,URS190200709

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-30020iGRS19#,URS190200709

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80215iGRS190200501-200506

MARK 48510-30650

main48510-80216iGRS195200501-200506

MARK 48510-30690

main48510-80217iUZS190200501-200709

MARK 48510-30680

main48510-80301iGRS190,191200506-200709

MARK 48510-30760

main48510-80302iGRS195,196200506-200709

MARK 48510-30780

main48510-80304iUZS190200607-200709

MARK 48510-30750,STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)

main48510-80387supersedes 48510-80431iGRS191200709-200711

MARK 48510-30600,WITH(AVS)

main48510-80389supersedes 48510-80437iGRS196200709-200711

MARK 48510-30630,WITH(AVS)

main48510-80393supersedes 48510-80435iURS190200709-200711

MARK 48510-30620,STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)

main48510-80430supersedes 48510-80431iGRS191200711-201112

MARK 48510-30601,WITH(AVS)

main48510-80432supersedes 48510-80437iGRS196200711-201112

MARK 48510-30631,WITH(AVS)

main48510-80436supersedes 48510-80435iURS190200711-201112

MARK 48510-30621,STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)

48519BBRACKET, ACTUATOR SUPPORT, FRONT RH

main48519-30030iUZS190200501-200709

48519CBRACKET, ACTUATOR SUPPORT, FRONT LH

main48519-30030iUZS190200501-200709

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-80041iGRS190200501-200506

MARK 48520-30130

main48520-80042iGRS195200501-200506

MARK 48520-30170

main48520-80043iUZS190200501-200709

MARK 48520-30160

main48520-80084iGRS190,191200506-200709

MARK 48520-30210

main48520-80085iGRS195,196200506-200709

MARK 48520-30230

main48520-80087iUZS190200607-200709

MARK 48520-30200,STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)

main48520-80146supersedes 48520-80178iGRS191200709-200711

MARK 48520-30300,WITH(AVS)

main48520-80148supersedes 48520-80184iGRS196200709-200711

MARK 48520-30330,WITH(AVS)

main48520-80152supersedes 48520-80182iURS190200709-200711

MARK 48520-30320,STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)

main48520-80177supersedes 48520-80178iGRS191200711-201112

MARK 48520-30301,WITH(AVS)

main48520-80179supersedes 48520-80184iGRS196200711-201112

MARK 48520-30331,WITH(AVS)

main48520-80183supersedes 48520-80182iURS190200711-201112

MARK 48520-30321,STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)

48553CAP, SHOCK ABSORBER, UPPER

main48553-30100×2iUZS190200501-200709

48680SUPPORT ASSY, FRONT SUSPENSION

main48680-30300×2iGRS190200501-200607

main48680-30310×2supersedes 48680-30300iUZS190200501-200709

main48680-30320×2iGRS195200501-200506

main48680-30350×2iGRS195200506-200607

main48680-30340×2supersedes 48680-30310iURS190200709

STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)

main48680-30400×2supersedes 48680-30350iGRS196200709

WITH(AVS)

48810LINK ASSY, FRONT STABILIZER, LH

main48810-30070iGRS190200501-200607

main48810-30080iGRS196200501-200709

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-30560×2iGRS195200501-200502

main48815-30561×2iGRS195200502-200607

main48815-30570×2iGRS190200501-200607

main48815-30571×2iGRS191,URS190201011

main48815-30620×2iUZS190200607-200709

STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-30090iGRS190200501-200607

main48820-30100iGRS196200501-200709

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48809-30060iGRS190200501-200607

main48809-30090iGRS191,URS190200709-201106

main48809-30130iGRS191,URS190201107

main48809-30080iUZS190200607-200709

STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)

main48809-30100iURS190200709

STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)

48827BRACKET, FRONT STABILIZER, NO.2 RH

main48824-30130iGRS191,UZS190200501-200709

main48824-30140iGRS196200501-200709

48828BRACKET, FRONT STABILIZER, NO.2 LH

main48824-30130iGRS191,UZS190200501-200709

main48824-30140iGRS196200501-200709

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48809-30060iGRS191,UZS190200501-200709

main48809-30090iGRS191,URS190200709-201106

main48809-30130iGRS191,URS190201107

main48807-30010iUZS190200607-200709

STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)

main48807-30030iURS190200709

STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)

48860BACTUATOR ASSY, FRONT ACTIVE STABILIZER CONTROL

main48860-30030iUZS190200607-200709

STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)

main48860-30040iURS190200709

STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)

53729HREINFORCEMENT, FRONT SPRING SUPPORT, NO.3

main53729-53020×2iGRS19#200507-200607

8419ELECTRONIC MODULATED SUSPENSION

→ Go to FIG 84-19

9010514153

main90105-14153

9011906915

main90119-06915

9011910940

main90119-10940

9017712002

main90177-12002

9017810014

main90178-10014

9017910174

main90179-10174

9017914045

main90179-14045

91673G1430

main91673-G1430

9415121241

main94151-21241

31 parts on this diagram · 4 diagrams in section
