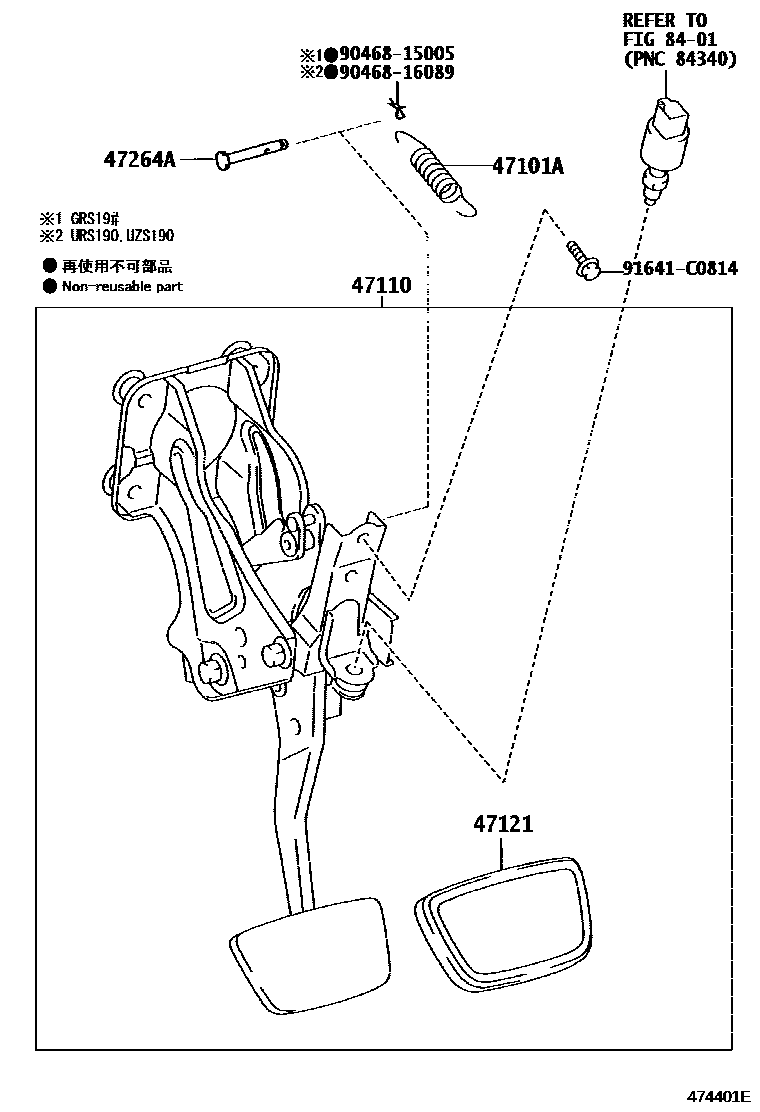

BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-13009iGRS19#200709

main90507-14017iURS190200709

main90905-07007iUZS190200501-200709

47110SUPPORT ASSY, BRAKE PEDAL

main47110-30420iGRS191200709-200909

main47110-30421iGRS191200910-201112

main47110-30430iURS190200709-200909

main47110-30431iURS190200910-201112

main47110-30440iGRS195,196200501-200709

main47110-30441iGRS196200910-201112

47121PAD, BRAKE PEDAL

main47121-50020iGRS191,196,UZS190200501-200709

47264APIN(FOR PUSH ROD)

main90249-06180iGRS19#200501-200607

main90249-10199iUZS190200501-200709

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9046815005

main90468-15005

9046816089

main90468-16089

91641C0814

main91641-C0814

8 parts on this diagram · 1 diagram in section
