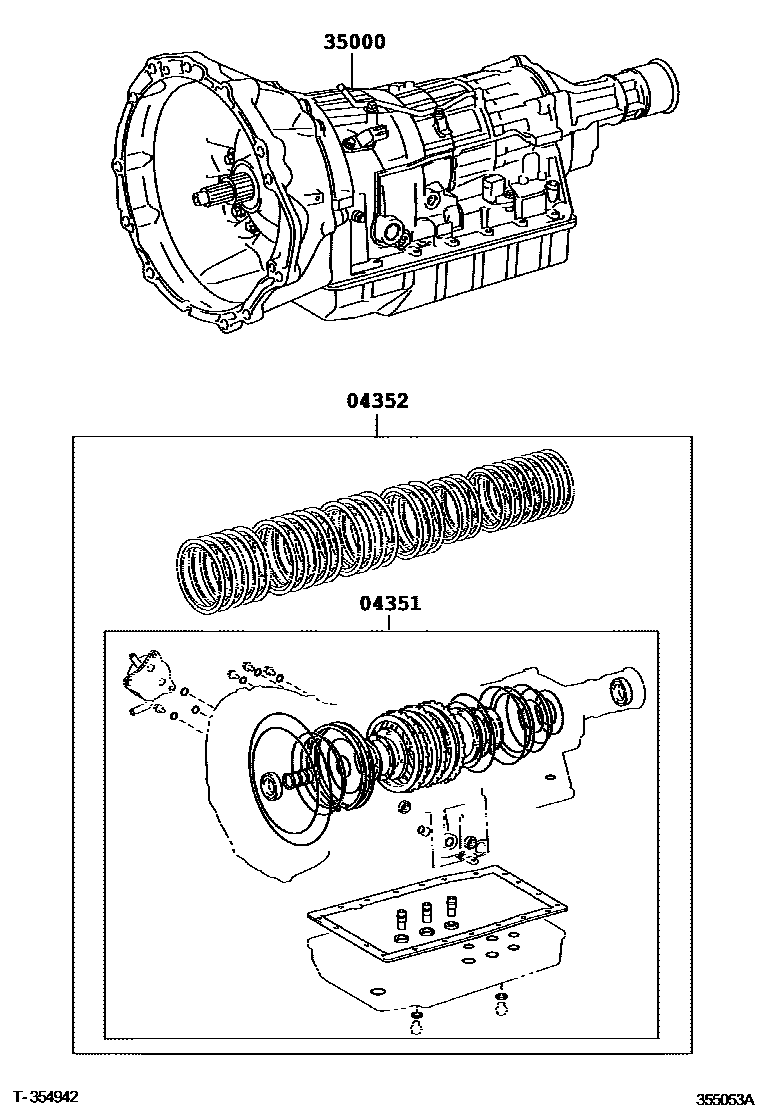

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1A960E 0002 1A760E,A761E 0003 1A760H 0004 1AA80E

04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-30541iGRS190200501-200607

main04351-30570iGRS195,196200501-200709

main04351-30590iUZS190200501-200508

main04351-30980iGRS196200709

main04351-30990iGRS191200709

main04351-50080iURS190200709

04352KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04352-30101iGRS190200501-200607

main04352-30130iGRS195200501-200508

main04352-30140iGRS196200607-200709

main04352-30150iUZS190200501-200508

main04352-30580iUZS190200508-200709

main04352-30590iGRS191200607-200709

main04352-30600iGRS195200508-200607

main04352-39010iGRS196200709

main04352-50060iURS190200709-200809

main04352-50080iURS190200809

35000TRANSMISSION ASSY, AUTOMATIC

main35000-30A60iGRS191200709

A760E

main35000-30B00iGRS190200501-200607

A960E

main35000-30B80iUZS190200501-200709

A761E

main35000-30D10iURS190200709-200809

AA80E

main35000-30D11iURS190200809

AA80E

3 parts on this diagram · 4 diagrams in section
