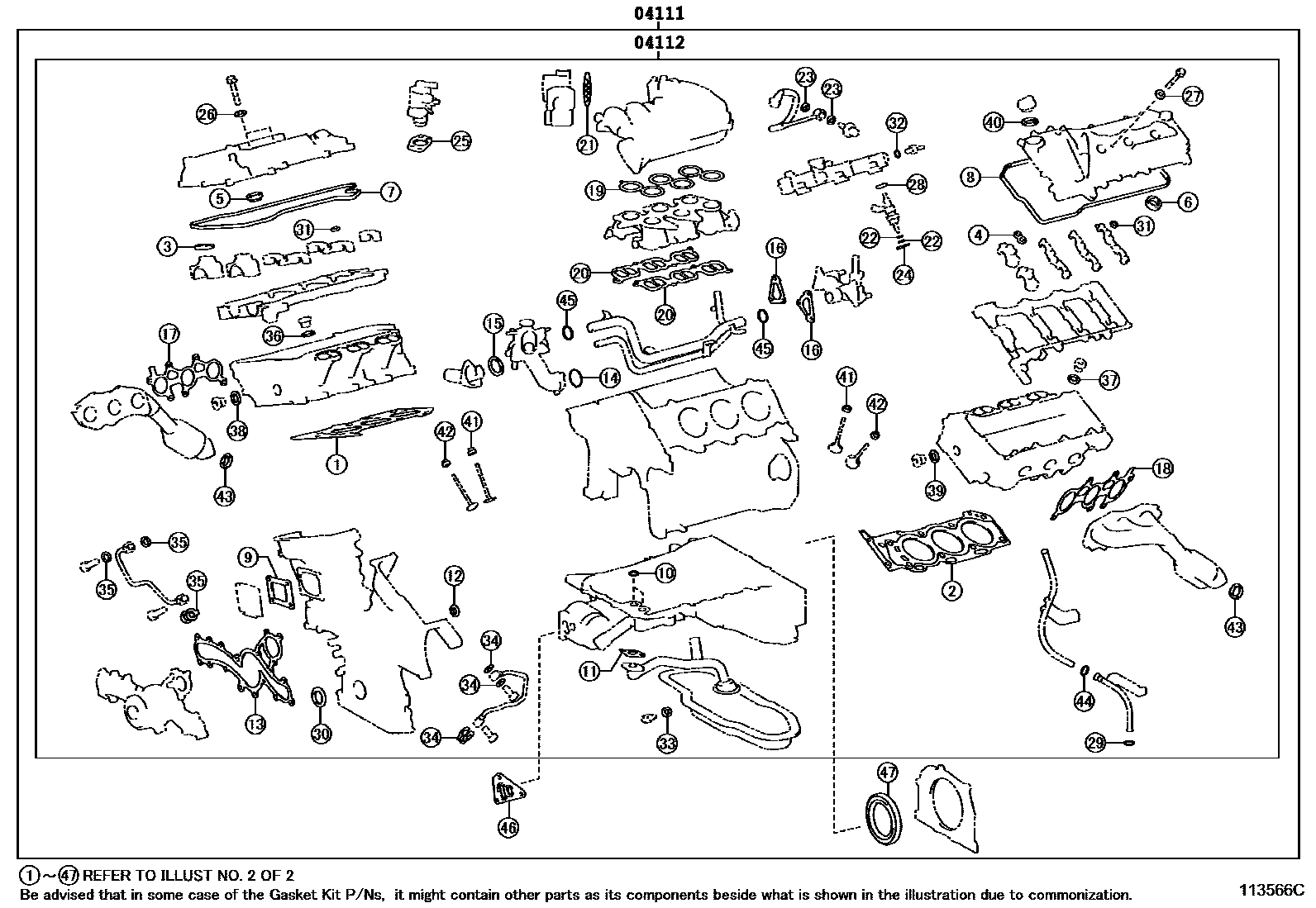

ENGINE OVERHAUL GASKET KIT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

04111GASKET KIT, ENGINE OVERHAUL

main04111-31290i3GRFSE..GRS19#200501-200607

sub04111-31291

main04111-31600i2GRFSE..GRS191200607-201108

sub04111-31601

main04111-31601i2GRFSE..GRS19#201108-201111

sub04111-31602

main04111-31760i2GRFSE..GRS191200802-201108

sub04111-31601

main04111-38170i1URFSE..URS190200709-200804

sub04111-38171

main04111-38171i1URFSE..URS190200804-201003

sub04111-38172

main04111-38172i1URFSE..URS190201003

sub04111-38173

main04111-50330i3UZFE..UZS190200501-200606

sub04111-50511

main04111-50511i3UZFE..UZS190200606-200709

sub04111-50512

04112GASKET KIT, ENGINE VALVE GRIND

main04112-31160i3GRFSE..GRS19#200501-200607

sub04112-31161

main04112-31360i2GRFSE..GRS19#200607-201108

sub04112-31362

main04112-31362i2GRFSE..GRS19#201108-201111

sub04112-31363

main04112-38160i1URFSE..URS190200709-200804

sub04112-38161

main04112-38161i1URFSE..URS190200804-201003

sub04112-38162

main04112-38162i1URFSE..URS190201003

sub04112-38163

main04112-50311i3UZFE..UZS190200606-200709

sub04112-50312

main04112-50350i3UZFE..UZS190200501-200606

sub04112-50311

2 parts on this diagram · 8 diagrams in section
