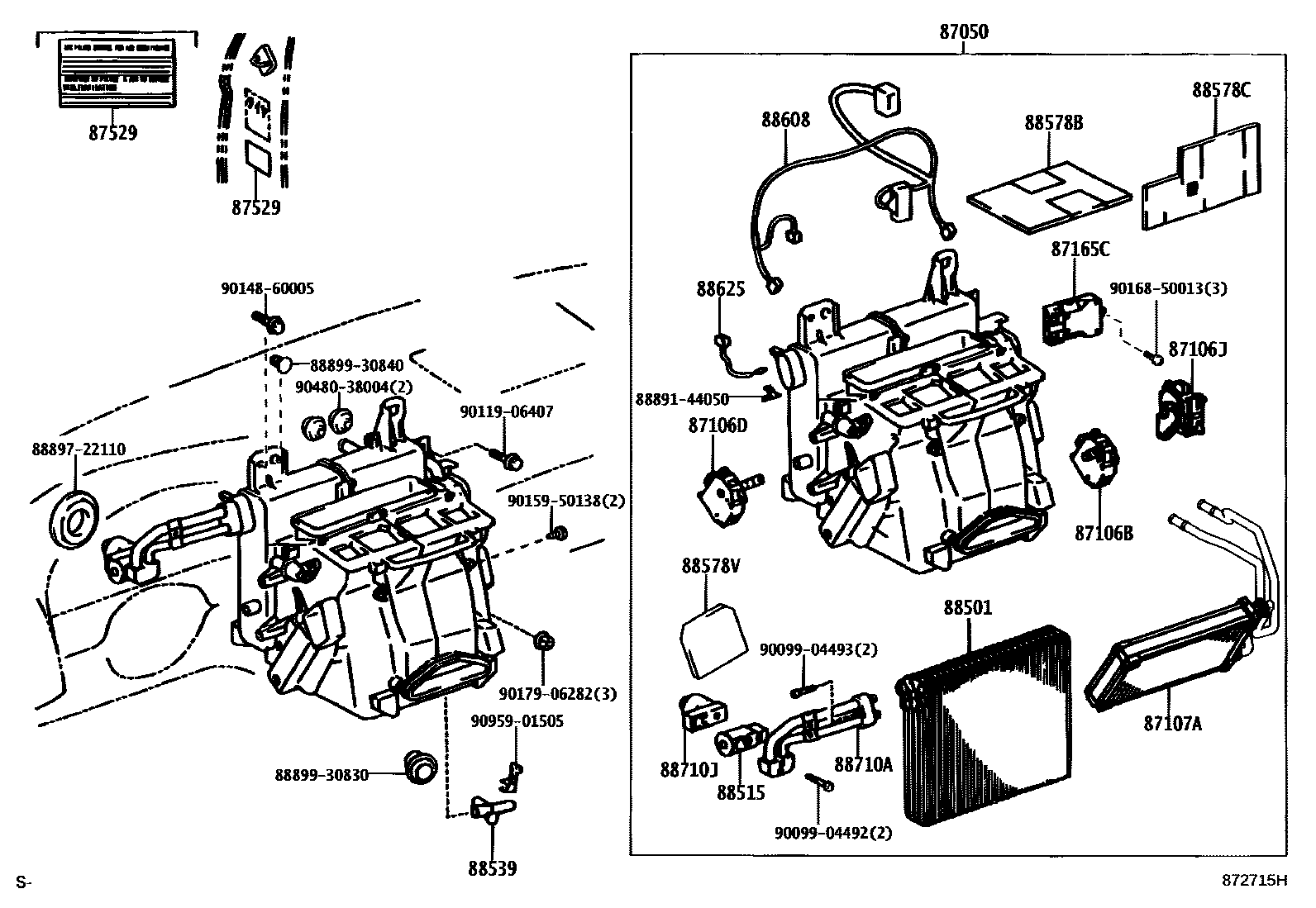

HEATING & AIR CONDITIONING - COOLER UNIT
87050RADIATOR ASSY, AIR CONDITIONER
87106BSERVO SUB-ASSY, DAMPER(FOR COOLING UNIT)
87106DSERVO SUB-ASSY, DAMPER, NO.1
87106JSERVO SUB-ASSY, DAMPER(FOR MODE)
87107AUNIT SUB-ASSY, HEATER RADIATOR
87165CCONTROL, BLOWER MOTOR
87529PLATE, AIR FILTER CAUTION
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88515VALVE, COOLER EXPANSION
88539HOSE, COOLER UNIT DRAIN, NO.1
88578BPACKING, COOLING UNIT, NO.1
88578CPACKING, COOLING UNIT, NO.2
88578VPACKING, COOLING UNIT, NO.3
88608HARNESS SUB-ASSY, WIRING AIR CONDITIONER
88625THERMISTOR, COOLER, NO.1
88710ATUBE ASSY, AIR CONDITIONER
88710JTUBE, AIR CONDITIONER CONNECTOR
8889144050PACKING (FOR COOLER)
main88891-44050
8889722110VALVE, COOLER MAGNET
main88897-22110
8889930830COVER, EVAPORATOR
main88899-30830
8889930840COVER, EVAPORATOR
main88899-30840
9009904492
main90099-04492
9009904493
main90099-04493
9011906407
main90119-06407
9014860005
main90148-60005
9015950138
main90159-50138
9016850013
main90168-50013
9017906282
main90179-06282
9048038004
main90480-38004
9095901505
main90959-01505
