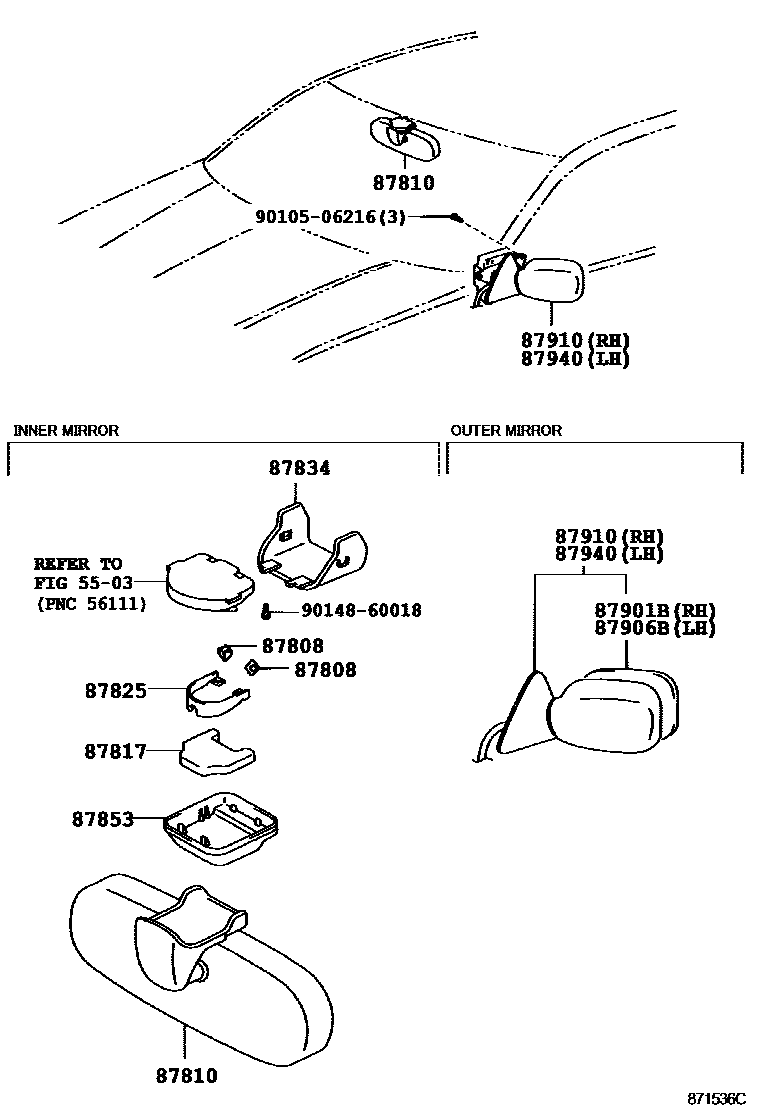

MIRROR
5503COWL PANEL & WINDSHIELD GLASS
87808HOLDER SUB-ASSY, INNER MIRROR
87810MIRROR ASSY, INNER REAR VIEW
IVORY,TRIM0#
MD.CHARCOAL,TRIM1#,2#
W(COMPASS),IVORY,TRIM0#
W(COMPASS),MD.CHARCOAL,TRIM1#,2#
87817SPACER, INNER REAR VIEW MIRROR
87825SPRING, INNER REAR VIEW MIRROR SETTING
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
IVORY,TRIM0#
MD.CHARCOAL,TRIM1#,2#
87853BASE, INNER REAR VIEW MIRROR
BLACK,TRIM0#,1#,2#
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
W(MEMORY ADJUST SYSTEM)
TAIWAN SPEC
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
W(MEMORY ADJUST SYSTEM)
TAIWAN SPEC
87910MIRROR ASSY, OUTER REAR VIEW, RH
SU.WHITE PM,051
WHITE PEARL CS.,062
SILVER ME,199
SILVER ME.,1C0
BLACK,202
RED MC.,3N1
COPPER BROWN M.M.MS.,4P1
BEIGE SF.,4P2
DK. GREEN MC.,6Q7
BLUE MC.,8M6
SU.WHITE PM,051
SILVER ME,199
BLACK,202
RED MC.,3N1
COPPER BROWN M.M.MS.,4P1
BEIGE SF.,4P2
DK. GREEN MC.,6Q7
BLUE MC.,8M6
W(MEMORY ADJUST SYSTEM),SU.WHITE PM,051
W(MEMORY ADJUST SYSTEM),WHITE PEARL CS.,062
W(MEMORY ADJUST SYSTEM),SILVER ME,199
W(MEMORY ADJUST SYSTEM),SILVER ME.,1C0
W(MEMORY ADJUST SYSTEM),BLACK,202
W(MEMORY ADJUST SYSTEM),RED MC.,3N1
W(MEMORY ADJUST SYSTEM),COPPER BROWN M.M.MS.,4P1
W(MEMORY ADJUST SYSTEM),BEIGE SF.,4P2
W(MEMORY ADJUST SYSTEM),DK. GREEN MC.,6Q7
W(MEMORY ADJUST SYSTEM),BLUE MC.,8M6
TAIWAN SPEC,SU.WHITE PM,051
TAIWAN SPEC,WHITE PEARL CS.,062
TAIWAN SPEC,SILVER ME,199
TAIWAN SPEC,SILVER ME.,1C0
TAIWAN SPEC,BLACK,202
TAIWAN SPEC,RED MC.,3N1
TAIWAN SPEC,COPPER BROWN M.M.MS.,4P1
TAIWAN SPEC,BEIGE SF.,4P2
TAIWAN SPEC,DK. GREEN MC.,6Q7
TAIWAN SPEC,BLUE MC.,8M6
WHITE PEARL CS.,062
IVORY PEARL CS.,066
SILVER ME.,1C0
SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO),DARK GRAY MC.,1C6
BLACK,202
RED MC.,3N1
BORDEAUX MC.,3P2
BEIGE SF.,4P2
BEIGE ME.,4P7
GREEN M.M.,6S5
DARK GREEN MC.,6S6
DARK BLUE MC.,8P8
BLUE M.M.,8P9
TAIWAN SPEC,WHITE PEARL CS.,062
TAIWAN SPEC,IVORY PEARL CS.,066
TAIWAN SPEC,SILVER ME.,1C0
TAIWAN SPEC,BLACK,202
TAIWAN SPEC,RED MC.,3N1
TAIWAN SPEC,BORDEAUX MC.,3P2
TAIWAN SPEC,BEIGE SF.,4P2
TAIWAN SPEC,BEIGE ME.,4P7
TAIWAN SPEC,GREEN M.M.,6S5
TAIWAN SPEC,DARK GREEN MC.,6S6
TAIWAN SPEC,DARK BLUE MC.,8P8
TAIWAN SPEC,BLUE M.M.,8P9
87940MIRROR ASSY, OUTER REAR VIEW, LH
SU.WHITE PM,051
WHITE PEARL CS.,062
SILVER ME,199
SILVER ME.,1C0
BLACK,202
RED MC.,3N1
COPPER BROWN M.M.MS.,4P1
BEIGE SF.,4P2
DK. GREEN MC.,6Q7
BLUE MC.,8M6
SU.WHITE PM,051
SILVER ME,199
BLACK,202
RED MC.,3N1
COPPER BROWN M.M.MS.,4P1
BEIGE SF.,4P2
DK. GREEN MC.,6Q7
BLUE MC.,8M6
W(MEMORY ADJUST SYSTEM),SU.WHITE PM,051
W(MEMORY ADJUST SYSTEM),WHITE PEARL CS.,062
W(MEMORY ADJUST SYSTEM),SILVER ME,199
W(MEMORY ADJUST SYSTEM),SILVER ME.,1C0
W(MEMORY ADJUST SYSTEM),BLACK,202
W(MEMORY ADJUST SYSTEM),RED MC.,3N1
W(MEMORY ADJUST SYSTEM),COPPER BROWN M.M.MS.,4P1
W(MEMORY ADJUST SYSTEM),BEIGE SF.,4P2
W(MEMORY ADJUST SYSTEM),DK. GREEN MC.,6Q7
W(MEMORY ADJUST SYSTEM),BLUE MC.,8M6
TAIWAN SPEC,SU.WHITE PM,051
TAIWAN SPEC,WHITE PEARL CS.,062
TAIWAN SPEC,SILVER ME,199
TAIWAN SPEC,SILVER ME.,1C0
TAIWAN SPEC,BLACK,202
TAIWAN SPEC,RED MC.,3N1
TAIWAN SPEC,COPPER BROWN M.M.MS.,4P1
TAIWAN SPEC,BEIGE SF.,4P2
TAIWAN SPEC,DK. GREEN MC.,6Q7
TAIWAN SPEC,BLUE MC.,8M6
WHITE PEARL CS.,062
IVORY PEARL CS.,066
SILVER ME.,1C0
SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO),DARK GRAY MC.,1C6
BLACK,202
RED MC.,3N1
BORDEAUX MC.,3P2
BEIGE SF.,4P2
BEIGE ME.,4P7
GREEN M.M.,6S5
DARK GREEN MC.,6S6
DARK BLUE MC.,8P8
BLUE M.M.,8P9
TAIWAN SPEC,WHITE PEARL CS.,062
TAIWAN SPEC,IVORY PEARL CS.,066
TAIWAN SPEC,SILVER ME.,1C0
TAIWAN SPEC,BLACK,202
TAIWAN SPEC,RED MC.,3N1
TAIWAN SPEC,BORDEAUX MC.,3P2
TAIWAN SPEC,BEIGE SF.,4P2
TAIWAN SPEC,BEIGE ME.,4P7
TAIWAN SPEC,GREEN M.M.,6S5
TAIWAN SPEC,DARK GREEN MC.,6S6
TAIWAN SPEC,DARK BLUE MC.,8P8
TAIWAN SPEC,BLUE M.M.,8P9
9010506216
main90105-06216
9014860018
main90148-60018
13 parts on this diagram · 1 diagram in section
