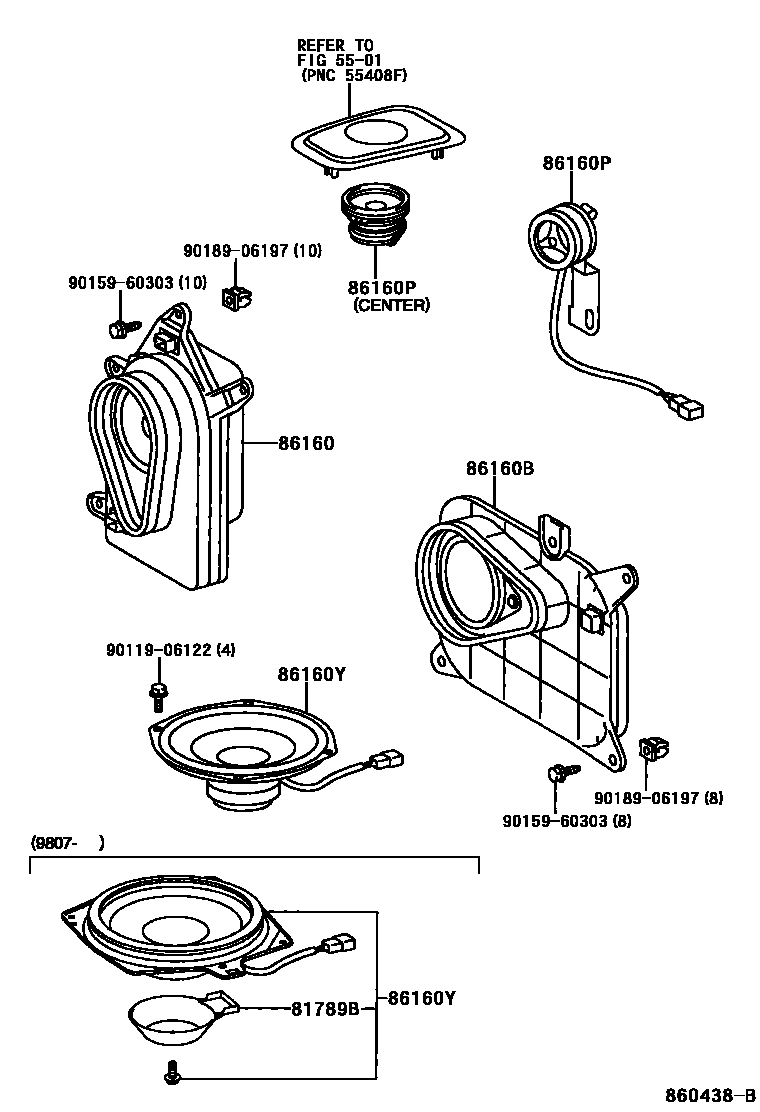

SPEAKER

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

81789BCOVER, SPEAKER

main81789-30040iJZS160,UZS16#199807-200501

PIONEER

main81789-30050iJZS160,UZS160199807-200007

NAKAMICHI

86160SPEAKER ASSY, FRONT NO.1

main86150-30290iJZS160,UZS16#199708-200501

RH,PIONEER

main86150-30300iJZS160,UZS16#199708-200501

LH,PIONEER

main86150-30330iJZS160,UZS160199708-200007

RH,NAKAMICHI

main86150-30340iJZS160,UZS160199708-200007

LH,NAKAMICHI

main86160-0W170iJZS160,UZS161200007-200501

RH,MARK LEVINSON

main86160-0W180iJZS160,UZS161200007-200501

LH,MARK LEVINSON

86160BSPEAKER ASSY, REAR

main86150-30310iJZS160,UZS16#199708-200501

RH,PIONEER

main86150-30320iJZS160,UZS16#199708-200501

LH,PIONEER

main86150-30350iJZS160,UZS160199708-200007

RH,NAKAMICHI

main86150-30360iJZS160,UZS160199708-200007

LH,NAKAMICHI

main86160-0W190iJZS160,UZS161200007-200501

RH,MARK LEVINSON

main86160-0W200iJZS160,UZS161200007-200501

LH,MARK LEVINSON

86160PSPEAKER ASSY, FRONT NO.2

main86160-0W150iJZS160,UZS161200007-200501

RH,MARK LEVINSON

main86160-0W160iJZS160,UZS161200007-200501

LH,MARK LEVINSON

main86160-0W220iJZS160,UZS161200007-200501

CENTER,MARK LEVINSON

main86160-3A340iJZS160,UZS16#199708-200501

RH,PIONEER

main86160-3A350iJZS160,UZS16#199708-200501

LH,PIONEER

main86160-3A360iJZS160,UZS160199708-200007

RH,NAKAMICHI

main86160-3A370iJZS160,UZS160199708-200007

LH,NAKAMICHI

86160YSPEAKER ASSY, REAR NO.2

main86160-0W210iJZS160,UZS161200007-200501

MARK LEVINSON

main86160-3A300iJZS160,UZS160199708-199807

NAKAMICHI

main86160-3A301iJZS160,UZS160199807-200007

NAKAMICHI

main86160-3A310iJZS160,UZS160199708-199807

PIONEER

main86160-3A311iJZS160,UZS16#199807-200501

PIONEER

9011906122

main90119-06122

9015960303

main90159-60303

9018906197

main90189-06197

9 parts on this diagram · 1 diagram in section
