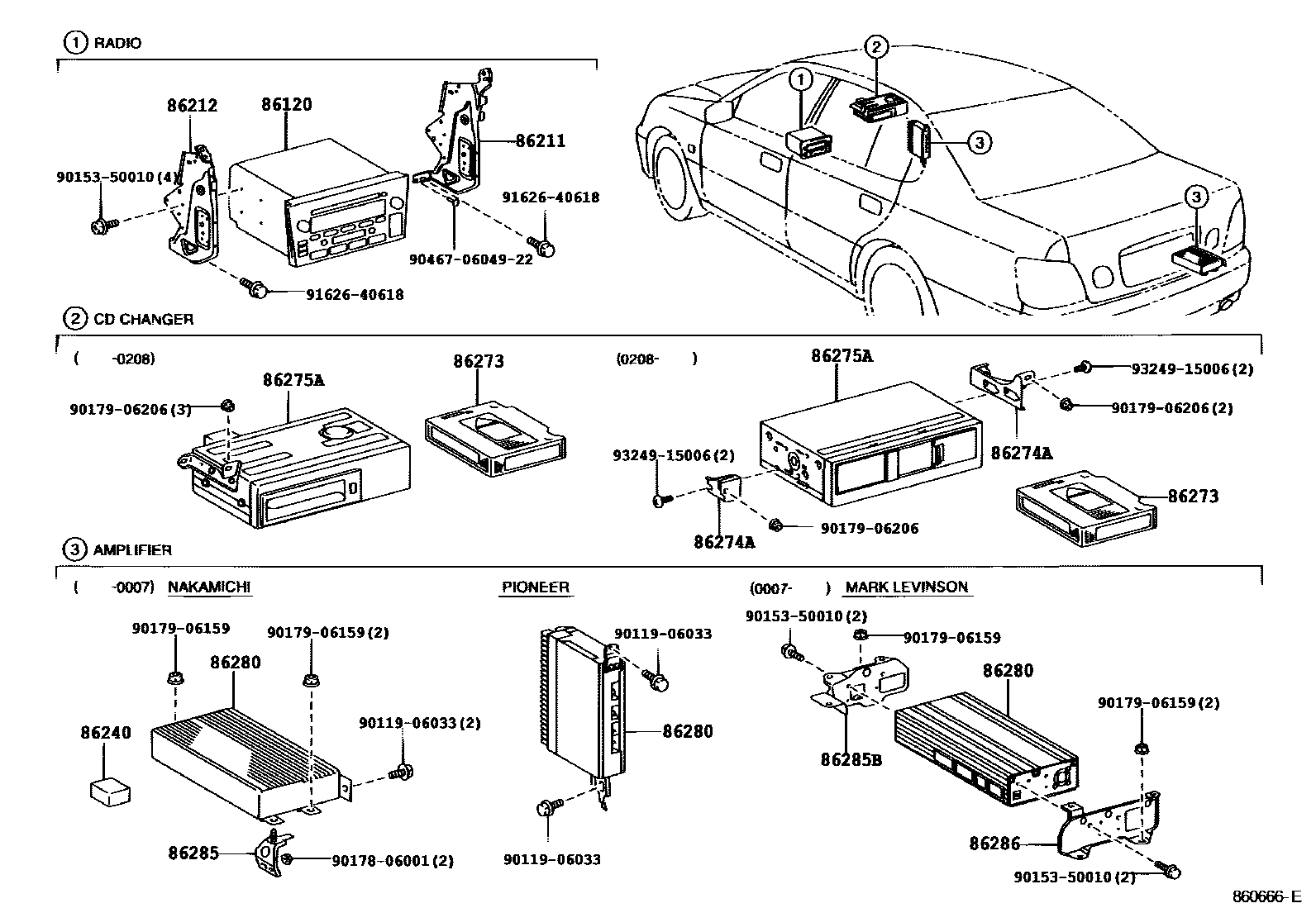

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-3A520iJZS160,UZS160199708-200007

PIONEER,ID=P1708,TYPE A:REFER TO ILLUSTRATION

main86120-3A521iJZS160,UZS161200007-200208

PIONEER,ID=P1718,TYPE E:REFER TO ILLUSTRATION

main86120-3A522iJZS160,UZS161200208

PIONEER,ID=P1740,TYPE E:REFER TO ILLUSTRATION

main86120-3A570iJZS160199708-199808

PIONEER,ID=P7509,TYPE B:REFER TO ILLUSTRATION

main86120-3A571iJZS160199808

PIONEER,ID=P7512,TYPE B:REFER TO ILLUSTRATION

main86120-3A580iJZS160,UZS160199708-199808

PIONEER,ID=P1711,TYPE C:REFER TO ILLUSTRATION

main86120-3A581iJZS160,UZS160199808-200007

PIONEER,ID=P1716,TYPE C:REFER TO ILLUSTRATION

main86120-3A582iJZS160,UZS161200007-200107

PIONEER,ID=P1719,TYPE F:REFER TO ILLUSTRATION

main86120-3A583iJZS160,UZS161200107-200208

PIONEER,ID=P1729,TYPE F:REFER TO ILLUSTRATION

main86120-3A584iJZS160,UZS161200208

PIONEER,ID=P1742,TYPE F:REFER TO ILLUSTRATION

main86120-3A620iJZS160,UZS160199708-199810

NAKAMICHI,ID=N904,TYPE D:REFER TO ILLUSTRATION

main86120-3A621iJZS160,UZS160199810-199906

NAKAMICHI,ID=N015,TYPE D:REFER TO ILLUSTRATION

main86120-3A622iJZS160,UZS160199906-200007

NAKAMICHI,ID=N016,TYPE D:REFER TO ILLUSTRATION

main86120-3A740iJZS160,UZS161200007-200107

PIONEER,ID=P1724,TYPE G:REFER TO ILLUSTRATION

main86120-3A741iJZS160,UZS161200107-200208

PIONEER,ID=P1730,TYPE G:REFER TO ILLUSTRATION

main86120-3A742iJZS160,UZS161200208

PIONEER,ID=P1743,TYPE G:REFER TO ILLUSTRATION

main86120-3A750iJZS160,UZS161200007-200208

PIONEER,ID=P1723,TYPE H:REFER TO ILLUSTRATION

main86120-3A751iJZS160,UZS161200208

PIONEER,ID=P1741,TYPE H:REFER TO ILLUSTRATION

main86120-3A810iJZS160200202-200207

main86120-3A811iJZS160200303-200307

PIONEER,ID=P1752,SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO), TYPE E:REFER TO ILLUSTRATION

main86120-3A820iJZS160200202-200207

main86120-3A821iJZS160200303-200307

PIONEER,ID=P1753,SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO), TYPE G:REFER TO ILLUSTRATION

86211BRACKET, RADIO, NO.1

main86211-30250iJZS160,UZS160199708-199907

main86211-30251iJZS160,UZS16#199907

86212BRACKET, RADIO, NO.2

main86212-30230iJZS160,UZS160199708-199907

main86212-30231iJZS160,UZS16#199907

86240EQUALIZER ASSY,STEREO COMPONENT

main86240-30010iJZS160,UZS160199708-200007

86273MAGAZINE, DISC PLAYER

main86273-50050iJZS160,UZS16#199708-200208

main86273-60040iJZS160,UZS161200208

86274ABRACKET, DISC PLAYER

main86274-30360iJZS160,UZS161200208

LH

main86274-30370iJZS160,UZS161200208

RH

86275ACHANGER, DISC PLAYER

main86270-30150iJZS160,UZS160199708-200208

W(CD AUTO CHANGER);CANADA SPEC

main86270-30160iJZS160,UZS160199708-200007

W(7 SPEAKER,NAKAMICHI & CD AUTO CHANGER)

main86275-30010iJZS160,UZS161200208

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-0W030iJZS160,UZS161200007-200107

MARKLEVINSON

main86280-0W031iJZS160,UZS161200107-200208

MARKLEVINSON

main86280-0W032iJZS160,UZS161200208

MARKLEVINSON

main86280-30370iJZS160,UZS160199708-199808

main86280-30371iJZS160,UZS160199808-200007

main86280-30372iJZS160,UZS161200007

main86280-30380iJZS160,UZS160199708-200007

W(7 SPEAKER,NAKAMICHI)

86285BRACKET, AMPLIFIER, NO.1

main86285-30050iJZS160,UZS16#199708

86285BBRACKET, AMPLIFIER, NO.1

main86285-30260iJZS160,UZS161200007

86286BRACKET, AMPLIFIER, NO.2

main86286-30030iJZS160,UZS161200007

9011906033

main90119-06033

9015350010

main90153-50010

9017806001

main90178-06001

9017906159

main90179-06159

9017906206

main90179-06206

904670604922

main90467-0604922

9162640618

main91626-40618

9324915006

main93249-15006

19 parts on this diagram · 3 diagrams in section
