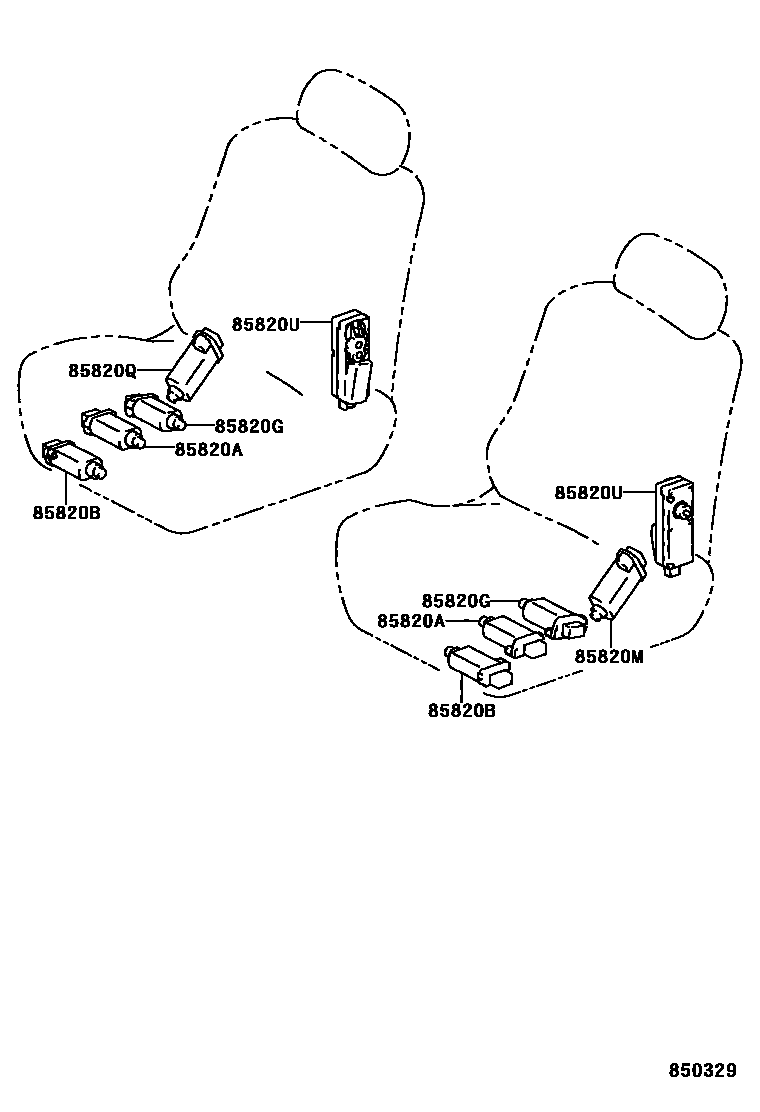

SEAT MOTOR & SEAT HEATER

85820AMOTOR ASSY, POWER SEAT (FOR FRONT UP, DOWN)

main85820-30510×2iJZS160,UZS160199708-200005

main85820-30710×2iJZS160,UZS16#200005

85820BMOTOR ASSY, POWER SEAT (FOR FRONT SLIDE)

main85820-30510×2iJZS160,UZS160199708-200005

main85820-30710×2iJZS160,UZS16#200005

85820GMOTOR ASSY, POWER SEAT

main85820-30510×2iJZS160,UZS160199708-200005

main85820-30710×2iJZS160,UZS16#200005

85820MMOTOR ASSY, POWER SEAT (FOR FRONT LH SEAT RECLINING)

main85820-30570iJZS160,UZS160199708-200005

main85820-30720iJZS160,UZS16#200005

85820QMOTOR ASSY, POWER SEAT (FOR FRONT RECLINING RH)

main85820-30690iJZS160,UZS160199708-200005

main85820-30740iJZS160,UZS161200008

85820UMOTOR ASSY, POWER SEAT(FOR LUMBAR SUPPORT)

main85820-30560iJZS160,UZS16#199708

LH

main85820-30700iJZS160,UZS16#199708

RH

6 parts on this diagram · 1 diagram in section
