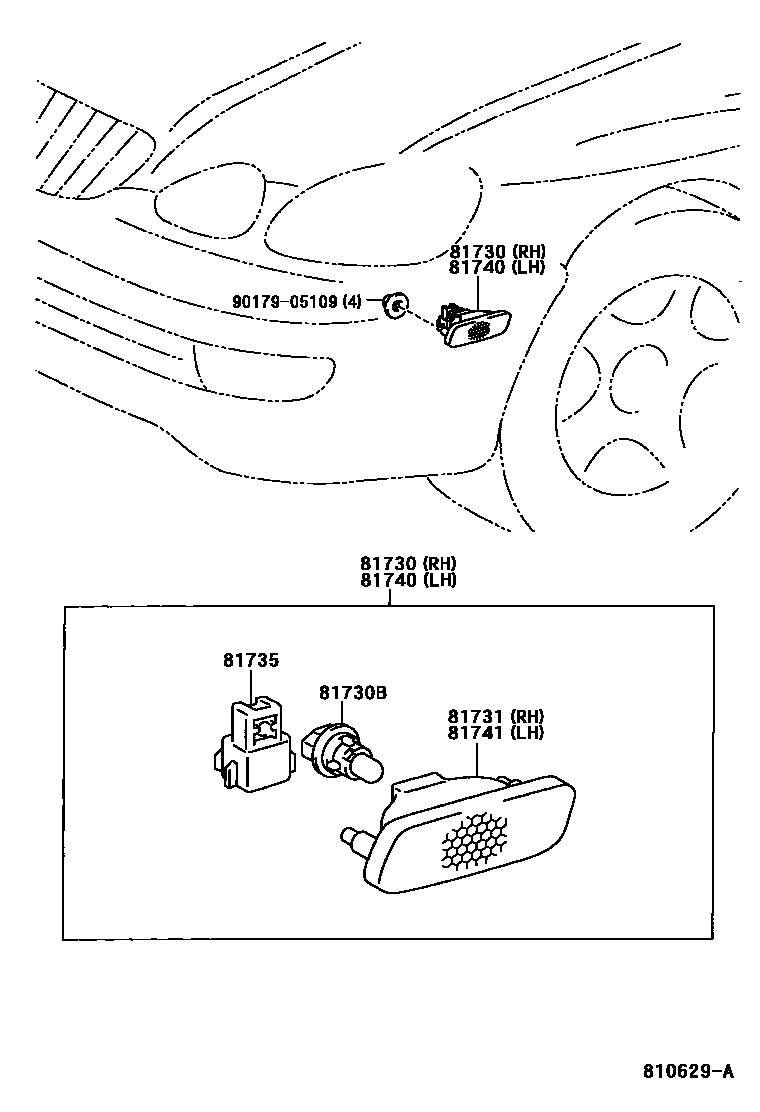

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-30110iJZS160,UZS16#199708-200501

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

main90981-11020×2iJZS160,UZS16#199708

12V 3.8W

81731LENS, SIDE TURN SIGNAL LAMP, RH

main81731-30110iJZS160,UZS16#199708

81735SOCKET AND WIRE, SIDE TURN SIGNAL LAMP

main90075-99012×2iJZS160,UZS16#199708

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81740-30120iJZS160,UZS16#199708-200501

81741LENS, SIDE TURN SIGNAL LAMP, LH

main81741-30120iJZS160,UZS16#199708

9017905109

main90179-05109

7 parts on this diagram · 1 diagram in section
