FOG LAMP

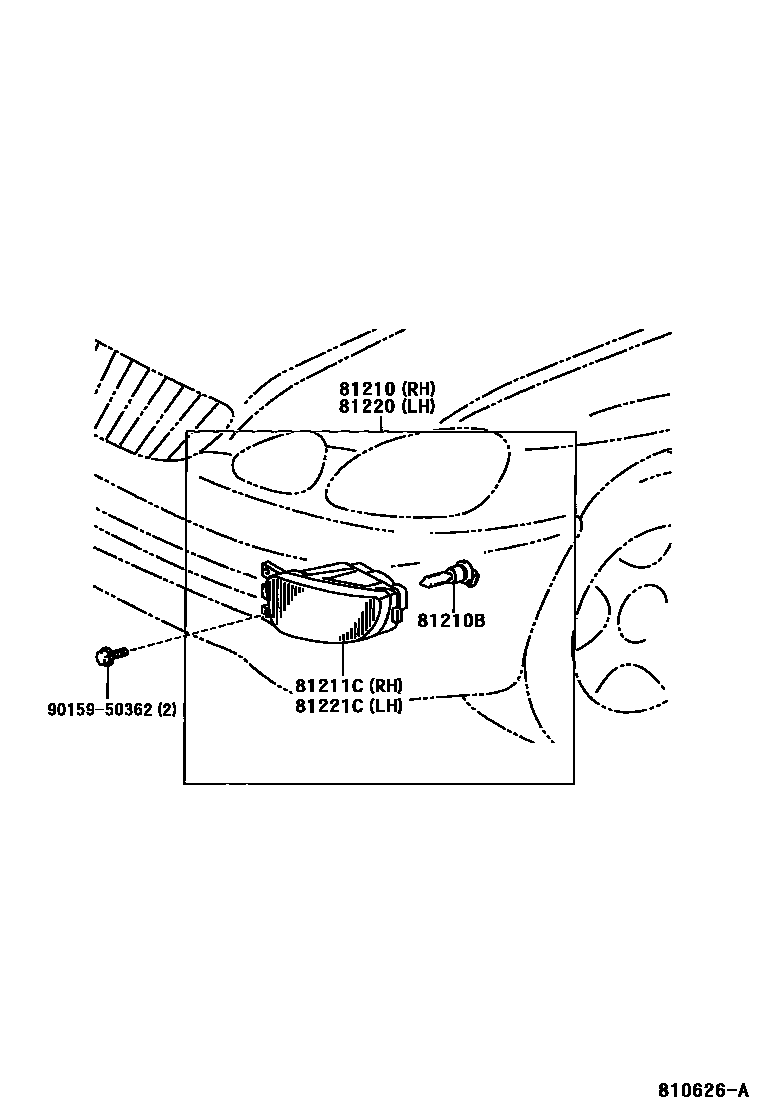

Parts diagram

81210LAMP ASSY, FOG

main81210-30230i199708-199710

main81210-30231i199710-199712

main81210-30232i199712-199807

main81210-30233i199807

main81210-30240i199708-199710

W(DISCHARGE HEADLAMP)

main81210-30241i199710-199712

W(DISCHARGE HEADLAMP)

main81210-30242i199712-199807

W(DISCHARGE HEADLAMP)

main81210-30243i199807

W(DISCHARGE HEADLAMP)

81210BBULB, FOG LAMP

main90981-13047×2i199708-200501

12V 51W,HALOGEN

81211CLAMP UNIT, FOG LAMP, RH

main81211-30230i199708-199710

main81211-30231i199710-199712

main81211-30232i199712-199807

main81211-30233i199807

main81211-30240i199708-199710

W(DISCHARGE HEADLAMP)

main81211-30241i199710-199712

W(DISCHARGE HEADLAMP)

main81211-30242i199712-199807

W(DISCHARGE HEADLAMP)

main81211-30243i199807

W(DISCHARGE HEADLAMP)

81220LAMP ASSY, FOG, LH

main81220-30210i199708-199710

main81220-30211i199710-199712

main81220-30212i199712-199807

main81220-30213i199807-200007

main81220-30220i199708-199710

W(DISCHARGE HEADLAMP)

main81220-30221i199710-199712

W(DISCHARGE HEADLAMP)

main81220-30222i199712-199807

W(DISCHARGE HEADLAMP)

main81220-30223i199807-200007

W(DISCHARGE HEADLAMP)

81221CLAMP UNIT, FOG LAMP, LH

main81221-30210i199708-199710

main81221-30211i199710-199712

main81221-30212i199712-199807

main81221-30213i199807

main81221-30220i199708-199710

W(DISCHARGE HEADLAMP)

main81221-30221i199710-199712

W(DISCHARGE HEADLAMP)

main81221-30222i199712-199807

W(DISCHARGE HEADLAMP)

main81221-30223i199807-200007

W(DISCHARGE HEADLAMP)

9015950362

main90159-50362

6 parts on this diagram · 1 diagram in section
