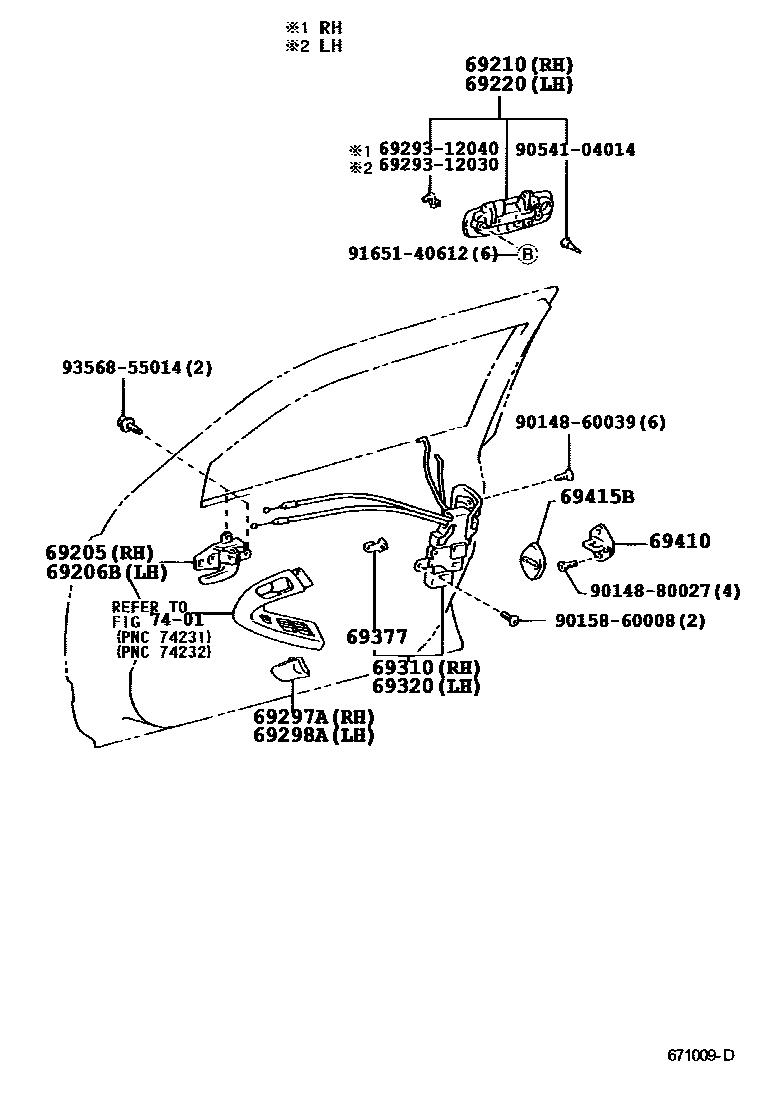

FRONT DOOR LOCK & HANDLE

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-30130-B0iUZS160199708-200501

DK.CHARCOAL,TRIM1#

main69205-30130-C0iUZS160199708-200501

BLACK,TRIM2#

main69205-30130-E0iJZS160,UZS161199708-200309

SANDAL WOOD,TRIM0#

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-30130-B0iJZS160,UZS161199708-200309

DK.CHARCOAL,TRIM1#

main69206-30130-C0iUZS160199708-200501

BLACK,TRIM2#

main69206-30130-E0iJZS160,UZS161199708-200309

SANDAL WOOD,TRIM0#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-30270-A0iJZS160,UZS160199708-199908

SU.WHITE PM,051

main69210-30270-A1iJZS160,UZS16#199908-200501

WHITE PEARL CS.,062

main69210-30270-A2iJZS160,UZS161199708-200501

IVORY PEARL CS.,066

main69210-30270-B0iJZS160,UZS160199708-199908

SILVER ME,199

main69210-30270-B1iJZS160,UZS16#199908-200501

SILVER ME.,1C0

main69210-30270-B2iJZS160200202-200207

SPECIAL EDITION(USA),DARK GRAY MC.,1C6

main69210-30270-C0iJZS160,UZS16#199708-200501

BLACK,202

main69210-30270-D0iJZS160,UZS16#199708-200208

RED MC.,3N1

main69210-30270-D1iJZS160,UZS161200007-200501

BORDEAUX MC.,3P2

main69210-30270-E0iJZS160,UZS160199708-200007

COPPER BROWN M.M.MS.,4P1

main69210-30270-E1iJZS160,UZS16#199708-200208

BEIGE SF.,4P2

main69210-30270-E2iJZS160,UZS161200208-200501

BEIGE ME.,4P7

main69210-30270-G0iJZS160,UZS160199708-200007

DK. GREEN MC.,6Q7

main69210-30270-G1iJZS160,UZS161199708-200501

GREEN M.M.,6S5

main69210-30270-G2iJZS160,UZS161200007-200208

DARK GREEN MC.,6S6

main69210-30270-J1iJZS160,UZS160199708-200007

BLUE MC.,8M6

main69210-30270-J2iJZS160,UZS161200007-200501

DARK BLUE MC.,8P8

main69210-30270-J3iJZS160,UZS161199708-200501

BLUE M.M.,8P9

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-30250-A0iJZS160,UZS160199708-199908

SU.WHITE PM,051

main69220-30250-A1iJZS160,UZS16#199908-200501

WHITE PEARL CS.,062

main69220-30250-A2iJZS160,UZS161199708-200501

IVORY PEARL CS.,066

main69220-30250-B0iJZS160,UZS160199708-199908

SILVER ME,199

main69220-30250-B1iJZS160,UZS16#199908-200501

SILVER ME.,1C0

main69220-30250-B2iJZS160200202-200207

SPECIAL EDITION(USA),DARK GRAY MC.,1C6

main69220-30250-C0iJZS160,UZS16#199708-200501

BLACK,202

main69220-30250-D0iJZS160,UZS16#199708-200208

RED MC.,3N1

main69220-30250-D1iJZS160,UZS161200007-200501

BORDEAUX MC.,3P2

main69220-30250-E0iJZS160,UZS160199708-200007

COPPER BROWN M.M.MS.,4P1

main69220-30250-E1iJZS160,UZS16#199708-200208

BEIGE SF.,4P2

main69220-30250-E2iJZS160,UZS161200208-200501

BEIGE ME.,4P7

main69220-30250-G0iJZS160,UZS160199708-200007

DK. GREEN MC.,6Q7

main69220-30250-G1iJZS160,UZS161199708-200501

GREEN M.M.,6S5

main69220-30250-G2iJZS160,UZS161200007-200208

DARK GREEN MC.,6S6

main69220-30250-J1iJZS160,UZS160199708-200007

BLUE MC.,8M6

main69220-30250-J2iJZS160,UZS161200007-200501

DARK BLUE MC.,8P8

main69220-30250-J3iJZS160,UZS161199708-200501

BLUE M.M.,8P9

69297ABEZEL, DOOR INSIDE HANDLE, NO.2 RH

main69297-30030-B0iJZS160,UZS16#199708-200501

DK.CHARCOAL,TRIM1#

main69297-30030-C0iJZS160,UZS16#199708-200501

BLACK,TRIM2#

main69297-30030-E0iJZS160,UZS16#199708-200501

SANDAL WOOD,TRIM0#

69298ABEZEL, DOOR INSIDE HANDLE, NO.2 LH

main69298-30030-B0iJZS160,UZS16#199708-200501

DK.CHARCOAL,TRIM1#

main69298-30030-C0iJZS160,UZS16#199708-200501

BLACK,TRIM2#

main69298-30030-E0iJZS160,UZS16#199708-200501

SANDAL WOOD,TRIM0#

69310LOCK ASSY, FRONT DOOR, RH

main69030-30880iJZS160,UZS16#199708-200107

main69030-3A120iJZS160,UZS161200107-200310

main69030-3A121iJZS160,UZS161200310

69320LOCK ASSY, FRONT DOOR, LH

main69040-30840iJZS160,UZS160199708-200007

main69040-3A070iJZS160,UZS161200007-200310

main69040-3A071iJZS160,UZS161200310

69377SNAP, FRONT DOOR LOCK CONTROL ROD

main69759-24050iJZS160,UZS16#199708

LH

main69759-24060iJZS160,UZS16#199708

RH

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-30050×2iJZS160,UZS16#199708

69415BCOVER, DOOR LOCK STRIKER, FRONT

main69415-30020×2iJZS160,UZS16#199708

7401ARMREST & VISOR

→ Go to FIG 74-01

6929312030HANDLE, BACK DOOR

main69293-12030

6929312040HANDLE, BACK DOOR

main69293-12040

9014860039

main90148-60039

9014880027

main90148-80027

9015860008

main90158-60008

9054104014

main90541-04014

9165140612

main91651-40612

9356855014

main93568-55014

20 parts on this diagram · 1 diagram in section
