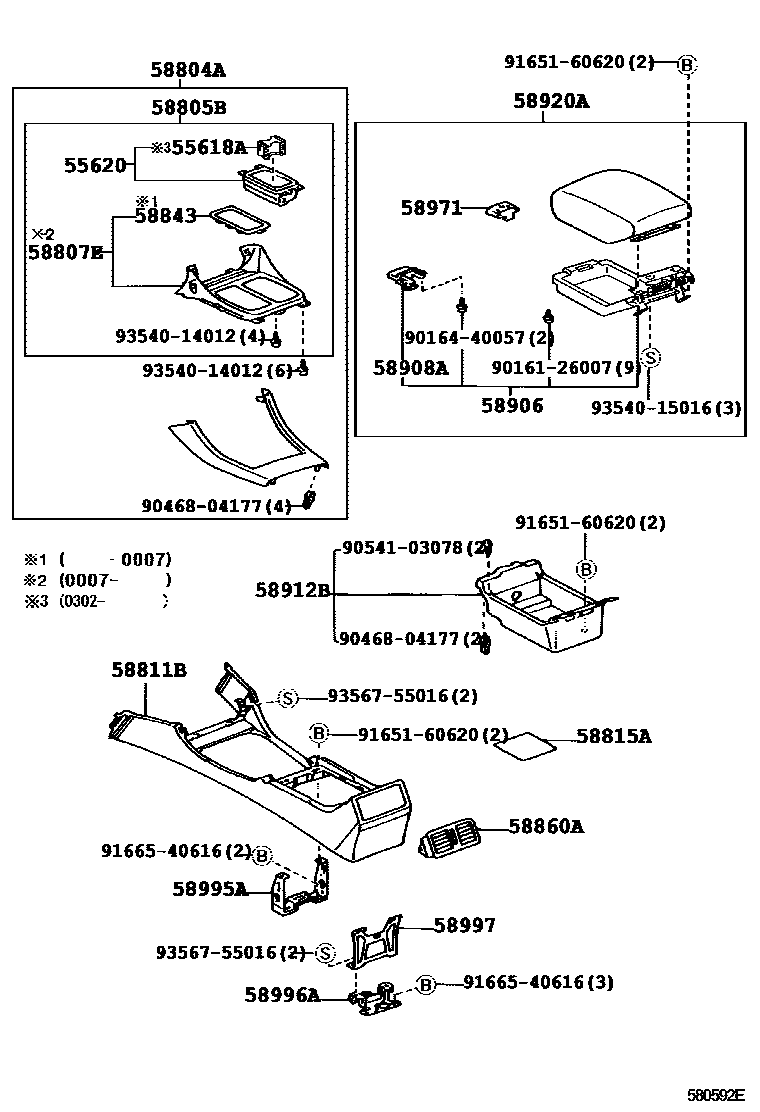

CONSOLE BOX & BRACKET
55618AHOLDER, CONSOLE BOX CUP
58804APANEL SUB-ASSY, CONSOLE, UPPER
W(SEAT HEATER(DRIVER SIDE & PASSENGER SIDE))
LEXUS 10TH ANNIVERSARY EDITION(USA/HAWAII/P.RICO/CANADA),LT.BLOWN,TRIM02,14,22
LEXUS 10TH ANNIVERSARY EDITION(TAIWAN),LT.BROWN,062 ,1C0 ,202 ,4P2
LEXUS 10TH ANNIVERSARY EDITION(USA/HAWAII/P.RICO/CANADA) & W(SEAT HEATER SWITCH),LT.BLOWN,TRIM02,14,22
W(SEAT HEATER(DRIVER SIDE & PASSENGER SIDE))
SPECIAL EDITION(USA)
SPECIAL EDITION(USA) & W(SEAT HEATER(DRIVER SIDE & PASSENGER SIDE)
58805BPANEL SUB-ASSY, CONSOLE, LOWER
58807EFRAME SUB-ASSY, SHIFTING HOLE
58811BBOX, CONSOLE
IVORY,TRIM0#
MD.CHARCOAL,TRIM1#
BLACK,TRIM2#
58815ACARPET, CONSOLE BOX
58843BEZEL, SHIFTING HOLE
58860AREGISTER ASSY, CONSOLE BOX
IVORY,TRIM0#
MD.CHARCOAL,TRIM1#
BLACK,TRIM2#
58906DOOR SUB-ASSY, UPPER CONSOLE
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58912BBOX, REAR CONSOLE, LOWER
58920AARMREST ASSY, REAR CONSOLE
MEDIUM CHARCOAL,TRIM1#
LEATHER,IVORY,TRIM0#
SPECIAL EDITION(USA),MD.CHACOAL,TRIM14
LEATHER,MEDIUM CHACOAL,TRIM1#
LEATHER,BLACK,TRIM2#
SPECIAL EDITION(USA),BLACK,TRIM22
LEATHER,IVORY,TRIM0#
LEATHER,MEDIUM CHACOAL,TRIM1#
LEATHER,BLACK,TRIM2#
SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO),SADDLE TAN,TRIM27
58971LOCK, CONSOLE COMPARTMENT DOOR
IVORY,TRIM0#
MD.CHARCOAL,TRIM1#
BLACK,TRIM2#
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
58997BRACKET, CONSOLE BOX MOUNTING, NO.3
9016126007
main90161-26007
9016440057
main90164-40057
9046804177
main90468-04177
9054103078
main90541-03078
9165160620
main91651-60620
9166540616
main91665-40616
9354014012
main93540-14012
9354015016
main93540-15016
9356755016
main93567-55016
26 parts on this diagram · 1 diagram in section
