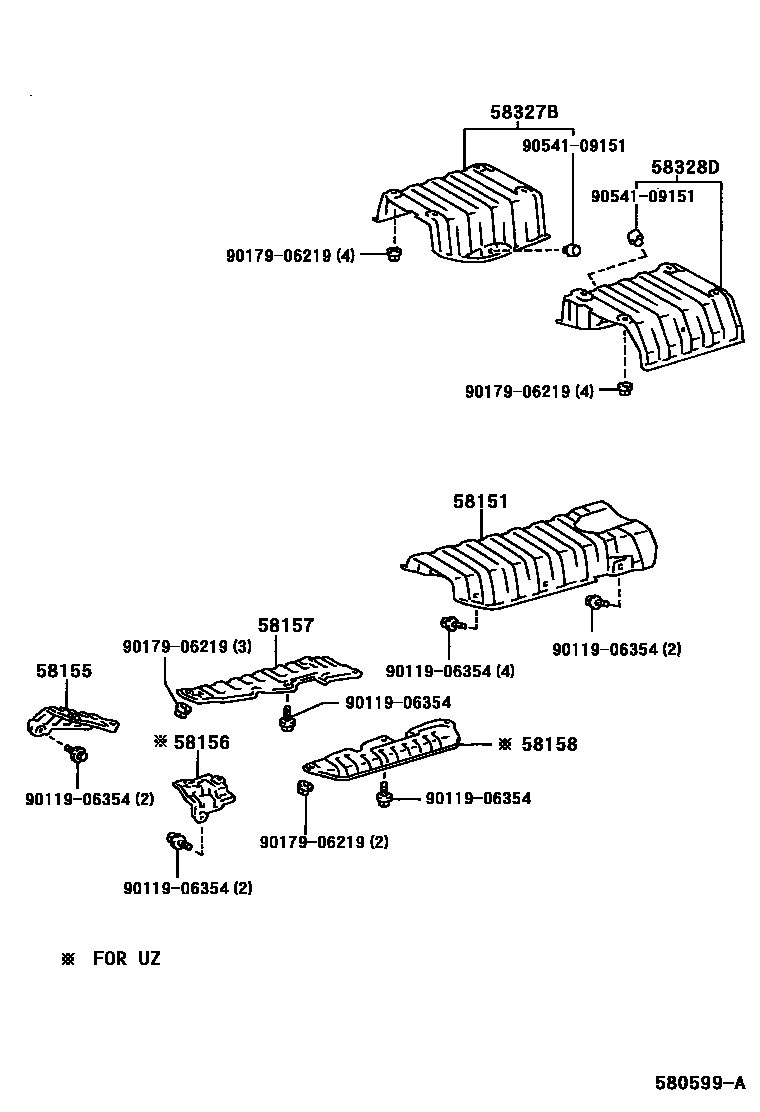

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-30080iJZS160,UZS16#199708

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-30030iJZS160,UZS16#199708

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-30070iUZS160199708-199905

main58156-30071iUZS16#199905

58157INSULATOR, FRONT FLOOR HEAT, NO.5

main58157-30050iJZS160,UZS16#199708

58158INSULATOR, FRONT FLOOR HEAT, NO.6

main58158-30040iUZS16#199708

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-30030iJZS160,UZS16#199708

58328DINSULATOR, MAIN MUFFLER HEAT, LH

main58328-30020iJZS160,UZS16#199708

9011906354

main90119-06354

9017906219

main90179-06219

9054109151

main90541-09151

10 parts on this diagram · 1 diagram in section
