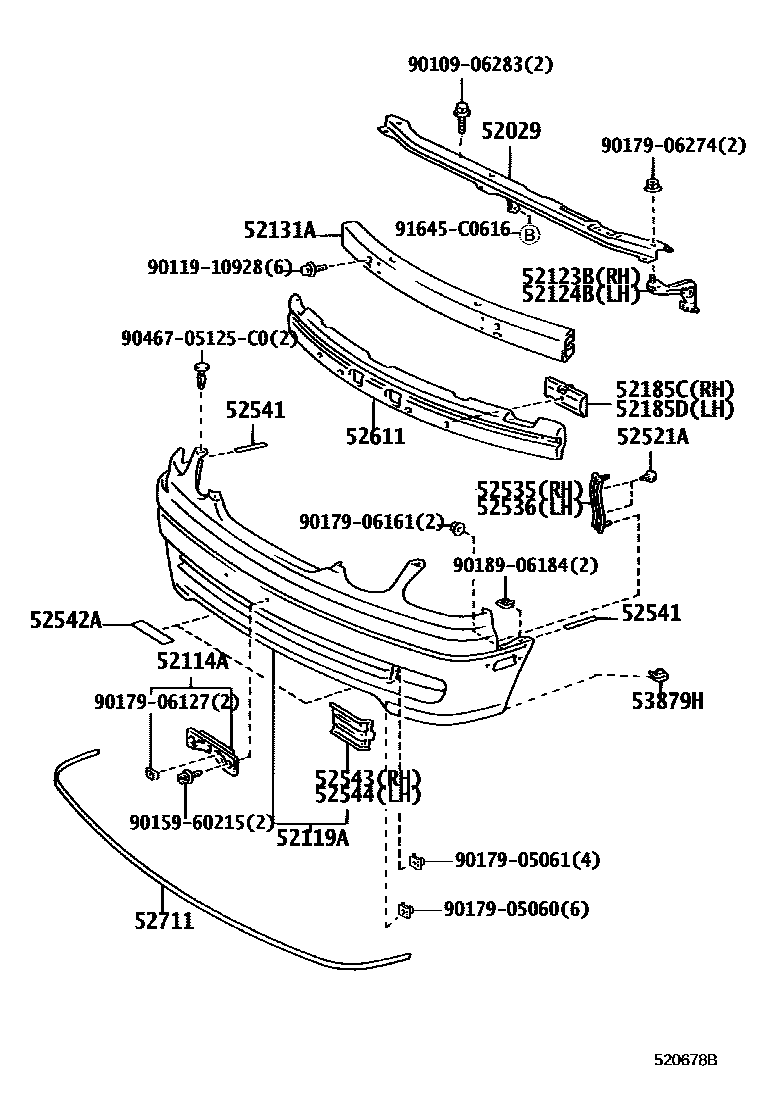

FRONT BUMPER & BUMPER STAY
52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING
52119ACOVER, FRONT BUMPER
CANADA SPEC
52123BPLATE, FRONT BUMPER REINFORCEMENT, RH
52124BPLATE, FRONT BUMPER REINFORCEMENT, LH
52131AREINFORCEMENT, FRONT BUMPER
52185CBRACKET, FRONT BUMPER SIDE MOUNTING, RH
52185DBRACKET, FRONT BUMPER SIDE MOUNTING, LH
52521ACLIP(FOR FRONT BUMPER RETAINER)
BLACK,051 ,199 ,202 ,3N1 ,4P1 ,4P2 ,6Q7 ,8M6
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
52541PROTECTOR, FRONT BUMPER
52542APROTECTOR, FRONT BUMPER, NO.2
52543SEAL, FRONT BUMPER SIDE, RH
52544SEAL, FRONT BUMPER SIDE, LH
52611ABSORBER, FRONT BUMPER ENERGY
52711MOULDING, FRONT BUMPER
sub52751-30110
53879HRETAINER, FRONT FENDER LINER
9010906283
main90109-06283
9011910928
main90119-10928
9015960215
main90159-60215
9017905060
main90179-05060
9017905061
main90179-05061
9017906127
main90179-06127
9017906161
main90179-06161
9017906274
main90179-06274
9018906184
main90189-06184
9046705125C0
main90467-05125C0
91645C0616
main91645-C0616
29 parts on this diagram · 1 diagram in section
