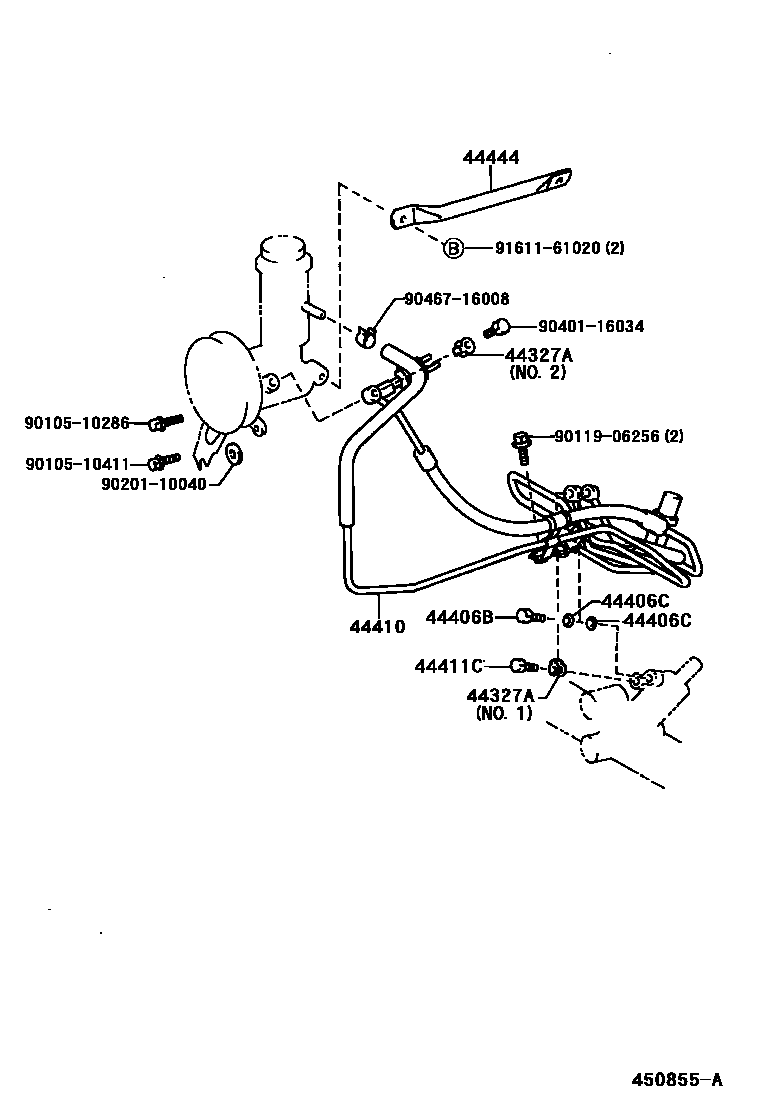

POWER STEERING TUBE

0001 1 0002 1 0003 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iJZS160199708

NO.1

main44327-30040iJZS160200007

NO.2

main44327-30060iJZS160199708-200007

NO.2

44406BBOLT, UNION(FOR RETURN TUBE)

main90401-17005iJZS160,UZS161200208

main96341-11703iJZS160,UZS16#199708-200208

44406CGASKET(FOR RETURN TUBE)

main90430-17008×2iJZS160,UZS16#199708

44410TUBE ASSY, PRESSURE FEED

main44410-30410iUZS16#199708

main44410-30430iJZS160199708-200007

main44410-30600iJZS160200007

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main96341-41603×2iJZS160199708

44444STAY, PUMP, REAR

main44444-30100iJZS160199708-200007

main44444-51010iJZS160200007

9010510286

main90105-10286

9010510411

main90105-10411

9011906256

main90119-06256

9020110040

main90201-10040

9040116034

main90401-16034

9046716008

main90467-16008

9161161020

main91611-61020

13 parts on this diagram · 3 diagrams in section
