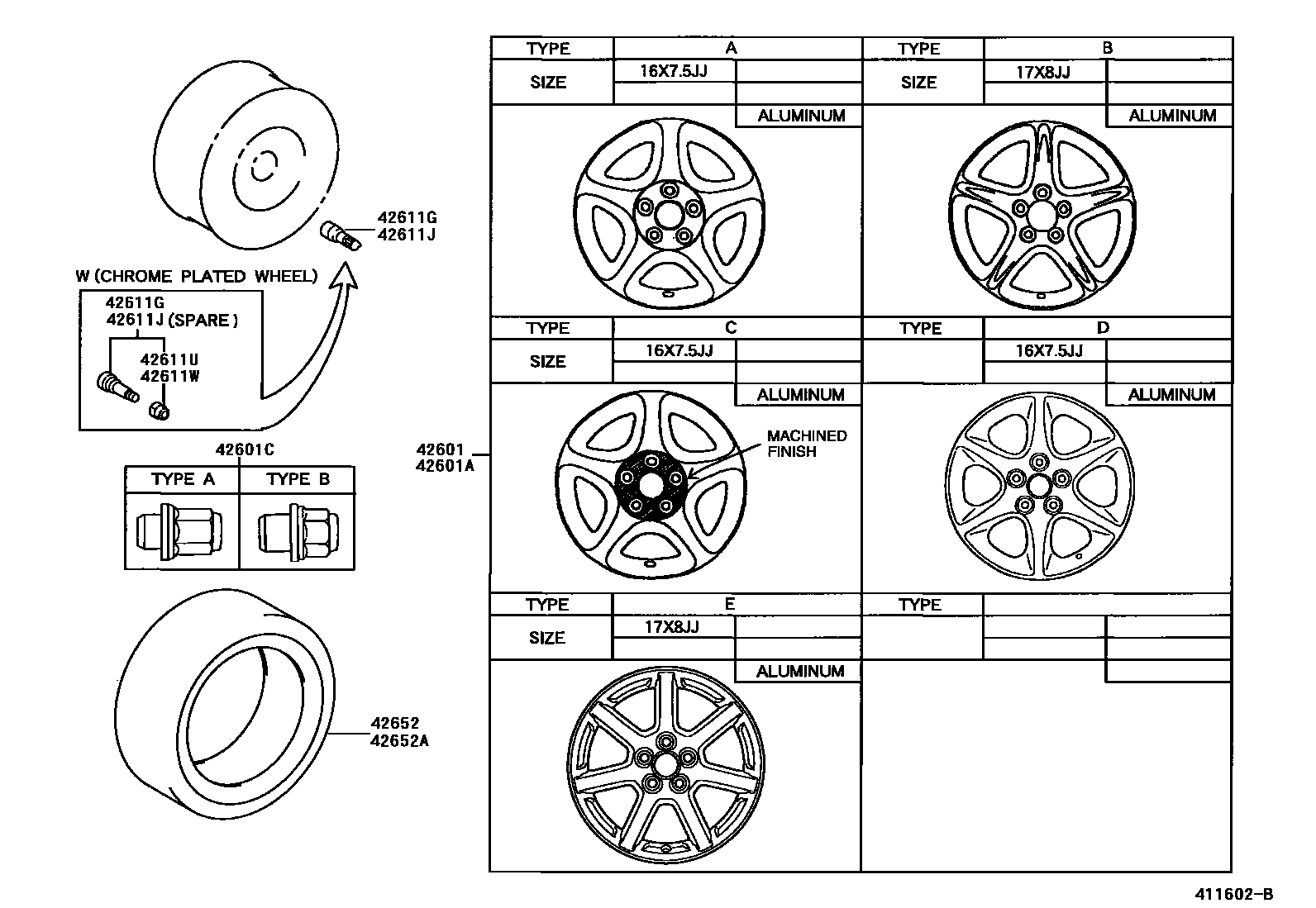

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
17X8JJ,TYPE B:REFER TO ILLUSTRATION
17X8JJ,TYPE B:REFER TO ILLUSTRATION
17X8JJ,TYPE B:REFER TO ILLUSTRATION
16X7.5JJ,TYPE A:REFER TO ILLUSTRATION
16X7.5JJ,TYPE A:REFER TO ILLUSTRATION
16X7.5JJ,TYPE C:REFER TO ILLUSTRATION, MACHINED FINISH
16X7.5JJ,TYPE C:REFER TO ILLUSTRATION, MACHINED FINISH
16X7 1/2JJ,TYPE A:REFER TO ILLUSTRATION, CHROME PLATED
16X6 1/2JJ,TYPE A:REFER TO ILLUSTRATION, CHROME PLATED
17X8JJ,TYPE B:REFER TO ILLUSTRATION,CHROME PLATED
17X8JJ,TYPE B:REFER TO ILLUSTRATION,CHROME PLATED
17X8JJ,TYPE B:REFER TO ILLUSTRATION;CHROME PLATED
16X7 1/2JJ,TYPE D:REFER TO ILLUSTRATION
16X7 1/2JJ,TYPE D:REFER TO ILLUSTRATION
16X7 1/2JJ,TYPE D:REFER TO ILLUSTRATION;CHROME PLATED
16X7 1/2JJ,SPECIAL EDITION(USA),TYPE D:REFER TO ILLUSTRATION
17X8JJ,TYPE E:REFER TO ILLUSTRATION
17X8JJ,CHROME PLATED;TYPE E:REFER TO ILLUSTRATION
16X7.5JJ,SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO), TYPE D:REFER TO ILLUSTRATION
42601AWHEEL, DISC (FOR SPARE)
17X8JJ,TYPE B:REFER TO ILLUSTRATION
17X8JJ,TYPE B:REFER TO ILLUSTRATION
17X8JJ,TYPE B:REFER TO ILLUSTRATION
16X7.5JJ,TYPE A:REFER TO ILLUSTRATION
16X7.5JJ,TYPE A:REFER TO ILLUSTRATION
16X7.5JJ,TYPE C:REFER TO ILLUSTRATION, MACHINED FINISH
16X7.5JJ,TYPE C:REFER TO ILLUSTRATION, MACHINED FINISH
16X7 1/2JJ,TYPE A:REFER TO ILLUSTRATION, CHROME PLATED
16X6 1/2JJ,TYPE A:REFER TO ILLUSTRATION, CHROME PLATED
17X8JJ,TYPE B:REFER TO ILLUSTRATION,CHROME PLATED
17X8JJ,TYPE B:REFER TO ILLUSTRATION,CHROME PLATED
16X7 1/2JJ,TYPE D:REFER TO ILLUSTRATION
16X7 1/2JJ,TYPE D:REFER TO ILLUSTRATION
16X7 1/2JJ,TYPE D:REFER TO ILLUSTRATION;CHROME PLATED
16X7 1/2JJ,SPECIAL EDITION(USA),TYPE D:REFER TO ILLUSTRATION
17X8JJ,TYPE E:REFER TO ILLUSTRATION
17X8JJ,CHROME PLATED;TYPE E:REFER TO ILLUSTRATION
16X7.5JJ,SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO), TYPE D:REFER TO ILLUSTRATION
42601CNUT, HUB (FOR AXLE)
W(235/45ZR17 TIRE)
TYPE B:REFER TO ILLUSTRATION
W(215/60R16 TIRE)
TYPE A:REFER TO ILLUSTRATION
42611GVALVE (FOR TUBELESS TIRE)
SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO)
W(CHROME PLATED WHEEL)
42611JVALVE (FOR TUBELESS TIRE SPARE)
SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO)
W(CHROME PLATED WHEEL)
42611UCAP, TIRE VALVE
42611WCAP, TIRE VALVE (FOR SPARE)
42652TIRE
225/55R16,GOODYEAR,SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO)
215/60R16 7.5J
225/55R16,MICHELIN,SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO)
235/45ZR17
235/45ZR17
215/60R16 94V
235/45R17
235/45ZR17
42652ATIRE (FOR SPARE)
225/55R16,GOODYEAR,SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO)
215/60R16 7.5J
225/55R16,MICHELIN,SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO)
235/45ZR17
235/45ZR17
215/60R16 94V
235/45R17
235/45ZR17
9 parts on this diagram · 4 diagrams in section
