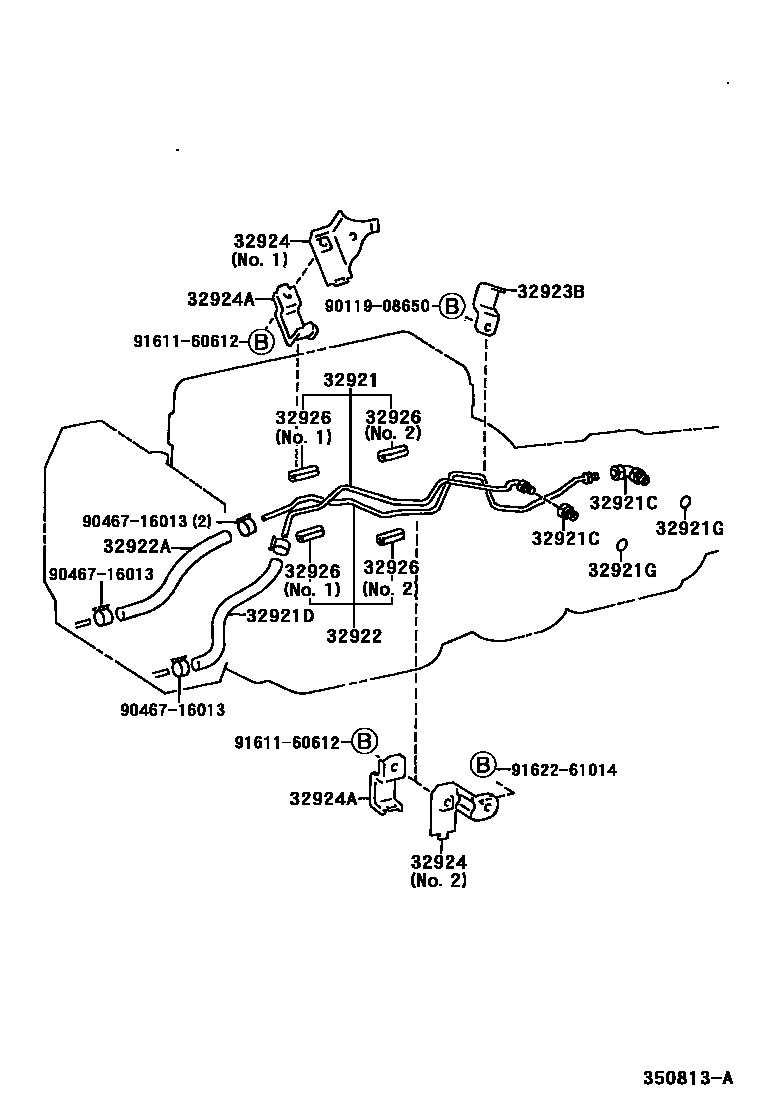

OIL COOLER & TUBE (ATM)

0001 1A650E 0002 1A650E 0003 1A650E

32921TUBE, OIL COOLER INLET, NO.1

main32921-30680iJZS160199708-199908

main32921-30700iUZS160199708-200007

main32921-30720iJZS160199908

main32921-30790iUZS161200007

32921CUNION(FOR OIL COOLER TUBE)

main90404-16029iJZS160,UZS16#199708

INLET

main90407-16009iJZS160,UZS16#199708

OUTLET

32921DHOSE(FOR OIL COOLER INLET)

main90445-17096iUZS16#199708

main90445-17097iJZS160199708

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11006×2iJZS160,UZS16#199708

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-30680iJZS160199708-199908

main32922-30700iUZS160199708-200007

main32922-30720iJZS160199908

main32922-30790iUZS161200007

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-17069iJZS160199710

main90445-17100iJZS160199708-199710

main90445-17134iUZS16#199708

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-50010iUZS16#199708-200501

main32929-30140iJZS160199708-199908

main32929-30150iJZS160199908-200501

32924CLAMP, OIL COOLER TUBE, NO.2

main32923-30220iJZS160199908

NO.1

main32923-50030iUZS16#199708-200501

NO.1

main32924-30190iJZS160199708-199908

NO.1

main32924-30230iJZS160199708-199908

NO.2

main32924-30240iJZS160199908

NO.2

main32924-50020iUZS16#199708-200501

NO.2

32924ACLAMP(FOR OIL COOLER TUBE, NO.2)

main32929-30160×2iJZS160199708-199908

main32929-50020×2iJZS160199908

main90462-12074iUZS16#199708

NO.1

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30020×4iUZS16#199708

L=35,ID=10

main32926-30030×4iJZS160199908

L=35,ID=10,NO.2

main32926-30060×4iJZS160199708-199908

L=35,ID=10,NO.2

9011908650

main90119-08650

9046716013

main90467-16013

9161160612

main91611-60612

9162261014

main91622-61014

14 parts on this diagram · 3 diagrams in section
