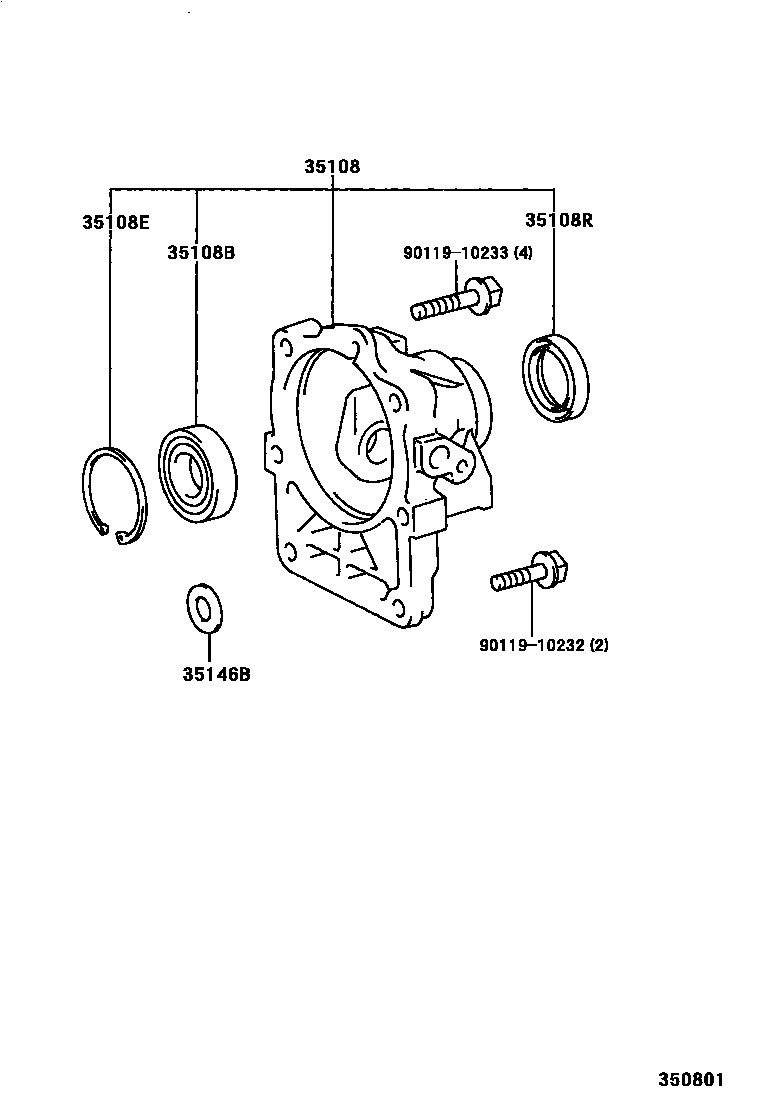

EXTENSION HOUSING (ATM)

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35180-30010iJZS160,UZS160199708-199909

main35180-30030iUZS160199909-200007

35108BBEARING (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90363-34001iUZS160199708-200007

35108ERING, HOLE SNAP (FOR ATM EXTENSION HOUSING)

main90521-66006iUZS160199708-200007

35108RSEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90311-42024iUZS160199708-200007

35146BGASKET, ACCUMULATOR BACK PRESSURE

main35146-30010iJZS160,UZS160199708-199909

9011910232

main90119-10232

9011910233

main90119-10233

7 parts on this diagram · 1 diagram in section
