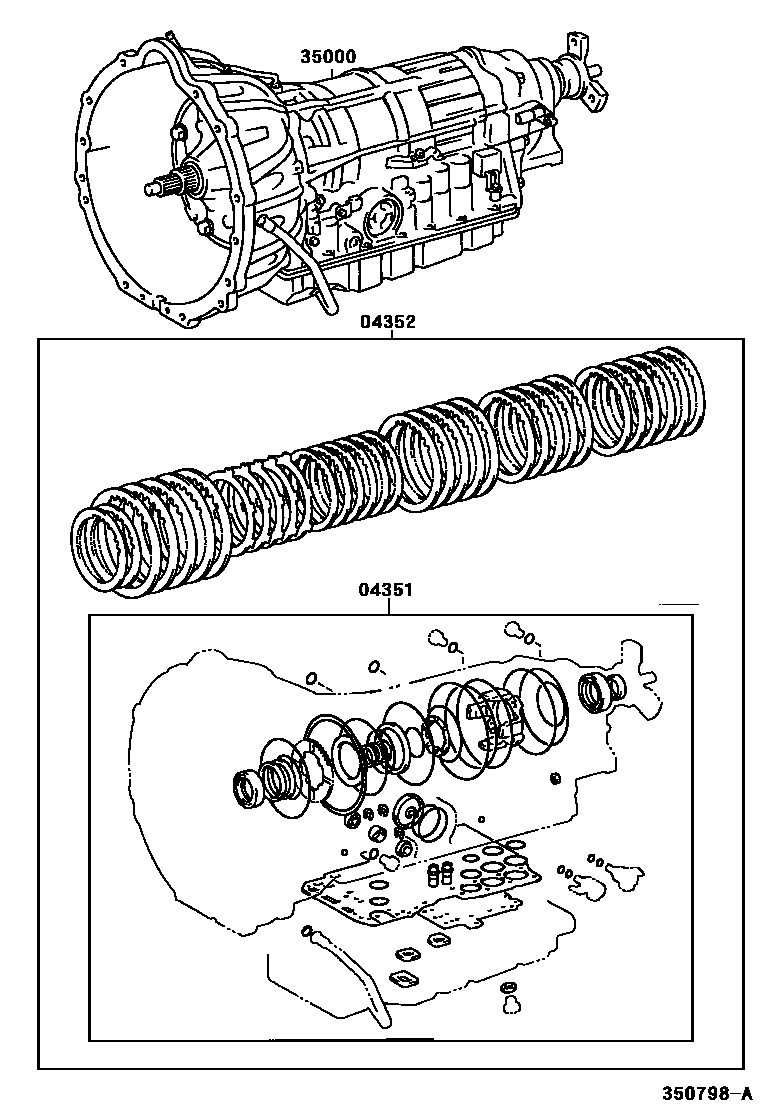

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-30340iUZS160199708-200007

main04351-30360iJZS160200007-200210

main04351-30361iJZS160200210-200501

main04351-30490iUZS161200007-200210

main04351-30491iUZS161200210-200501

04352KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04352-30050iUZS160199708-200007

main04352-30060iJZS160199708-199808

main04352-30061iJZS160199808-200501

main04352-30070iUZS161200007-200501

35000TRANSMISSION ASSY, AUTOMATIC

main35000-3F430iUZS160199708-199806

main35000-3F431iUZS160199806-199908

main35000-3F440iJZS160199708-199803

main35000-3F441iJZS160199803-199808

main35000-3F442iJZS160199808-199908

main35000-3F500iUZS160199908-200007

main35000-3F510iJZS160199908-200007

main35000-3F520iUZS161200007-200501

A650E

main35000-3F540iJZS160200007-200501

A650E

3 parts on this diagram · 1 diagram in section
