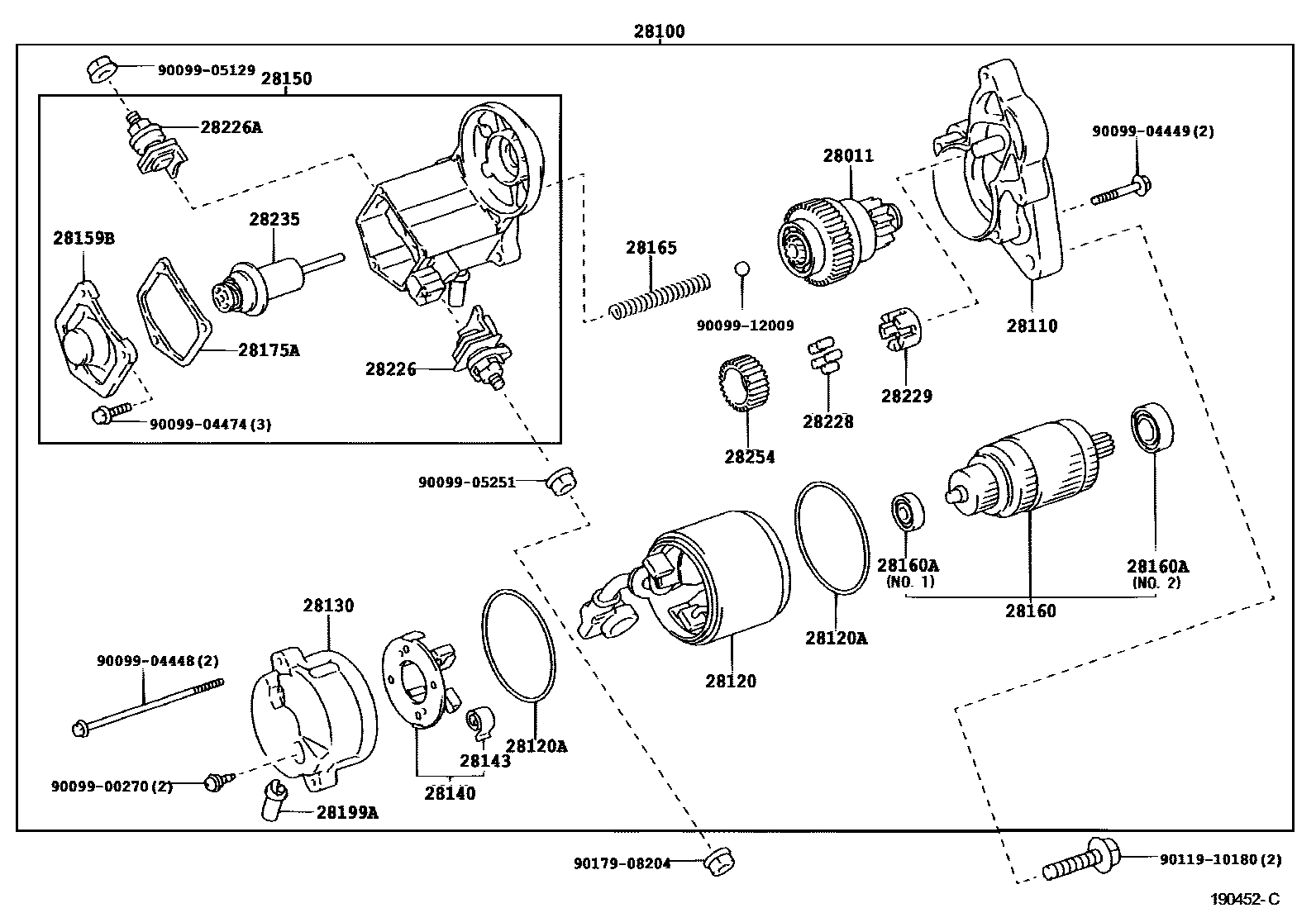

STARTER

0001 112V 1.4KW 0002 112V 2.0KW

28011CLUTCH SUB-ASSY, STARTER

main28011-50060i1UZFE,3UZFE..UZS16#199708-200410

main28011-50100i3UZFE..UZS161200410-200501

main28011-76070i2JZGE..JZS160199708-200501

28100STARTER ASSY

main28100-46220i2JZGE..JZS160199708

12V 1.4KW

main28100-50062i1UZFE..UZS160199708-200007

12V 2.0KW

main28100-50110i3UZFE..UZS161200007

12V 2.0KW

28110HOUSING ASSY, STARTER DRIVE

main28110-46220i2JZGE..JZS160199708-200501

main28110-50060i1UZFE,3UZFE..UZS16#199708-200307

28120YOKE ASSY, STARTER

main28120-54380i1UZFE,3UZFE..UZS16#199708-200307

main28120-66040i2JZGE..JZS160199708-200501

28120ARING, O(FOR STARTER YOKE)

main90099-14064×2i3UZFE..UZS161199708-200307

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-46220i2JZGE..JZS160199708-200501

main28130-50060i1UZFE,3UZFE..UZS16#199708-200307

28140HOLDER ASSY, STARTER BRUSH

main28140-54380i1UZFE,3UZFE..UZS16#199708-200501

main28140-76070i2JZGE..JZS160199708-200501

28143SPRING, STARTER BRUSH

main28143-54380×4i1UZFE,3UZFE..UZS16#199708-200307

main90099-17112×4i2JZGE..JZS160199708-200501

28150SWITCH ASSY, MAGNET STARTER

main28150-46220i2JZGE..JZS160199708-200501

main28150-50063i1UZFE..UZS160199708-199711

main28150-50064i1UZFE..UZS160199711-200007

main28150-50100i3UZFE..UZS161200007-200410

main28150-50110i3UZFE..UZS161200410-200501

28159BCOVER, MAGNET SWITCH

main28159-50080i3UZFE..UZS161200007-200307

main28159-54380i1UZFE..UZS160199708-200007

main28159-55050i2JZGE..JZS160199708

28160ARMATURE ASSY, STARTER

main28160-74070i2JZGE..JZS160199708-200501

main28160-75120i1UZFE,3UZFE..UZS16#199708-200501

28160ABEARING, STARTER ARMATURE

main90099-10196i2JZGE..JZS160199708-200501

NO.1

main90099-10197i3UZFE..UZS161199708-200307

NO.2

main90099-10208i1UZFE,3UZFE..UZS16#199708-200307

NO.1

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-76070i3UZFE..UZS161199708-200307

28175AGASKET, MAGNET SWITCH COVER

main28175-50080i3UZFE..UZS161200007-200307

main28175-54380i1UZFE..UZS160199708-200007

main28175-55050i2JZGE..JZS160199708

28199APROTECTOR, DUST STARTER

main28199-50050i1UZFE,3UZFE..UZS16#199708-200307

main28199-74110i2JZGE..JZS160199708-200501

28226STARTER KIT, BATTERY TERMINAL

main28226-22050i2JZGE..JZS160199708-200501

main28226-50080i3UZFE..UZS161200007-200307

main28226-54411i1UZFE..UZS160199708-199711

main28226-54412i1UZFE..UZS160199711-200007

28226ASTARTER KIT, MOTOR TERMINAL

main28226-50070i3UZFE..UZS161200007-200307

main28226-72010i1UZFE..UZS160199708-200007

main28226-74070i2JZGE..JZS160199708

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040×5i3UZFE..UZS161199708-200307

28229RETAINER, STARTER IDLE GEAR

main28229-74070i3UZFE..UZS161200007-200307

main28299-74070i1UZFE..UZS160199708-200007

28235PLUNGER, MAGNET SWITCH

main28235-54380i1UZFE,3UZFE..UZS16#199708-200307

main28235-55050i2JZGE..JZS160199708-200501

28254PINION, STARTER IDLE GEAR

main28254-64130i1UZFE,3UZFE..UZS16#199708-200307

main28254-74070i2JZGE..JZS160199708-200501

9009900270

main90099-00270

9009904448

main90099-04448

9009904449

main90099-04449

9009904474

main90099-04474

9009905129

main90099-05129

9009905251

main90099-05251

9009912009

main90099-12009

9011910180

main90119-10180

9017908204

main90179-08204

30 parts on this diagram · 2 diagrams in section
