MANIFOLD

0001 1 0002 1 0003 1

1104CYLINDER HEAD

→ Go to FIG 11-04

17061ADIAPHRAGM SUB-ASSY

main17061-46010i2JZGE..JZS160199708-200501

17111MANIFOLD, INTAKE

main17101-46030i2JZGE..JZS160199708-200501

main17101-50010i3UZFE..UZS161199708-200501

17118STAY, MANIFOLD

main17118-46042i2JZGE..JZS160200108-200501

main17118-46060i2JZGE..JZS160199708-200108

17129TANK, INTAKE AIR SURGE

main17109-46090i2JZGE..JZS160199708-199908

main17109-46091i2JZGE..JZS160199908-200501

17141MANIFOLD, EXHAUST

main17140-46030i2JZGE..JZS160199708-199908

main17140-46080i2JZGE..JZS160199908

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-10014×8i2JZGE..JZS160199708-200501

main90126-10015×16i1UZFE..UZS160199708-200007

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-46020×2i2JZGE..JZS160199708-199908

main17173-46050×2i2JZGE..JZS160199908-200102

main17173-46051×2i2JZGE..JZS160200102

main17173-50021i3UZFE..UZS161199708-200501

17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD

main17176-46020i2JZGE..JZS160199708-200501

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-50020×2i3UZFE..UZS161199708-200501

main17177-46060i2JZGE..JZS160199708-200501

17307BLEVER SUB-ASSY, INTAKE AIR CONTROL

main17307-46010i2JZGE..JZS160199708-200501

9010506167

main90105-06167

9010510416

main90105-10416

9011606127

main90116-06127

9011608348

main90116-08348

9011908891

main90119-08891

9011908A89

main90119-08A89

9017007003

main90170-07003

9017908153

main90179-08153

9017910165

main90179-10165

9020407001

main90204-07001

9030408001

main90304-08001

9033905005

main90339-05005

9052302002

main90523-02002

91641K0855

main91641-K0855

9213260818

main92132-60818

9613251100

main96132-51100

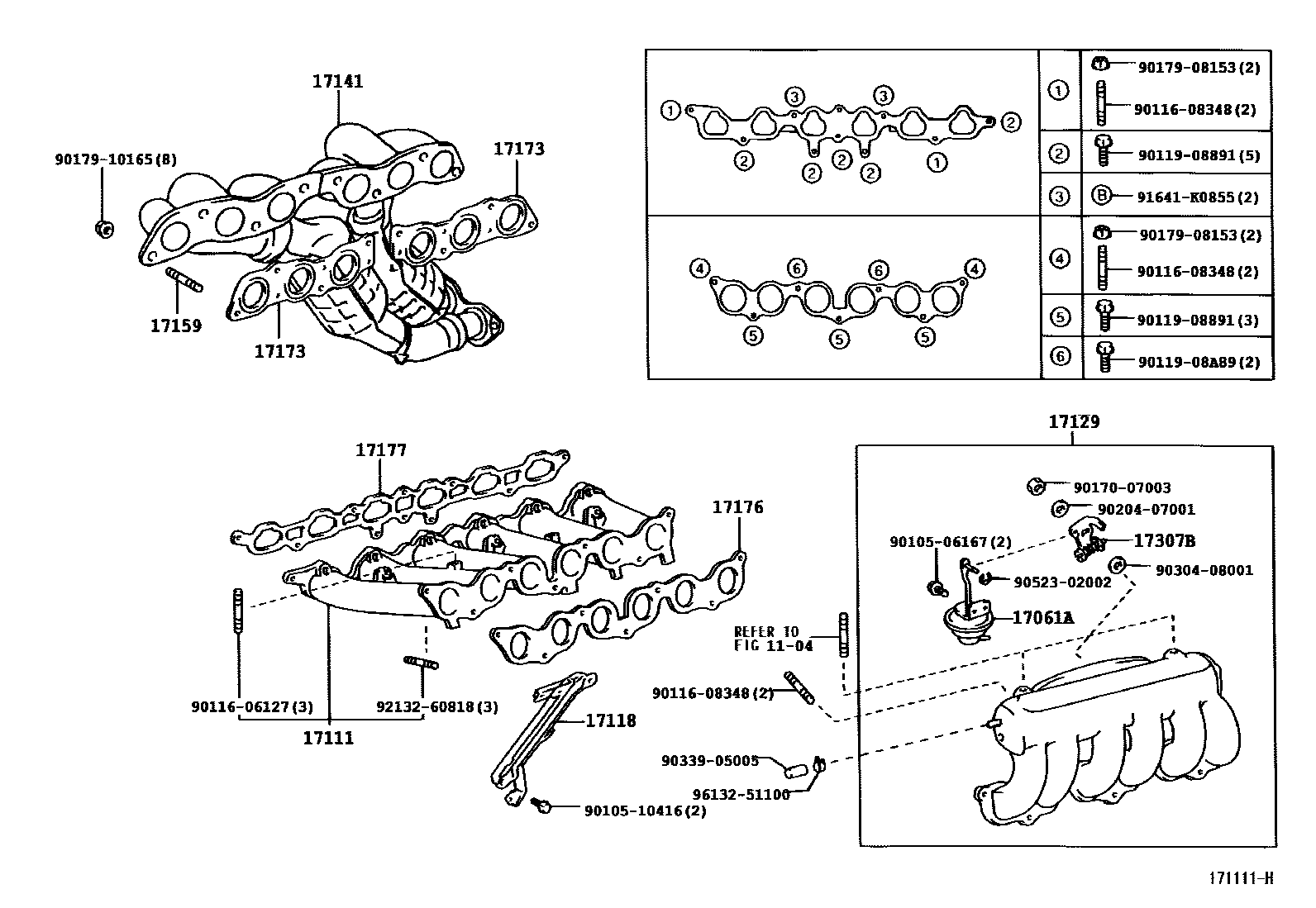

27 parts on this diagram · 3 diagrams in section
