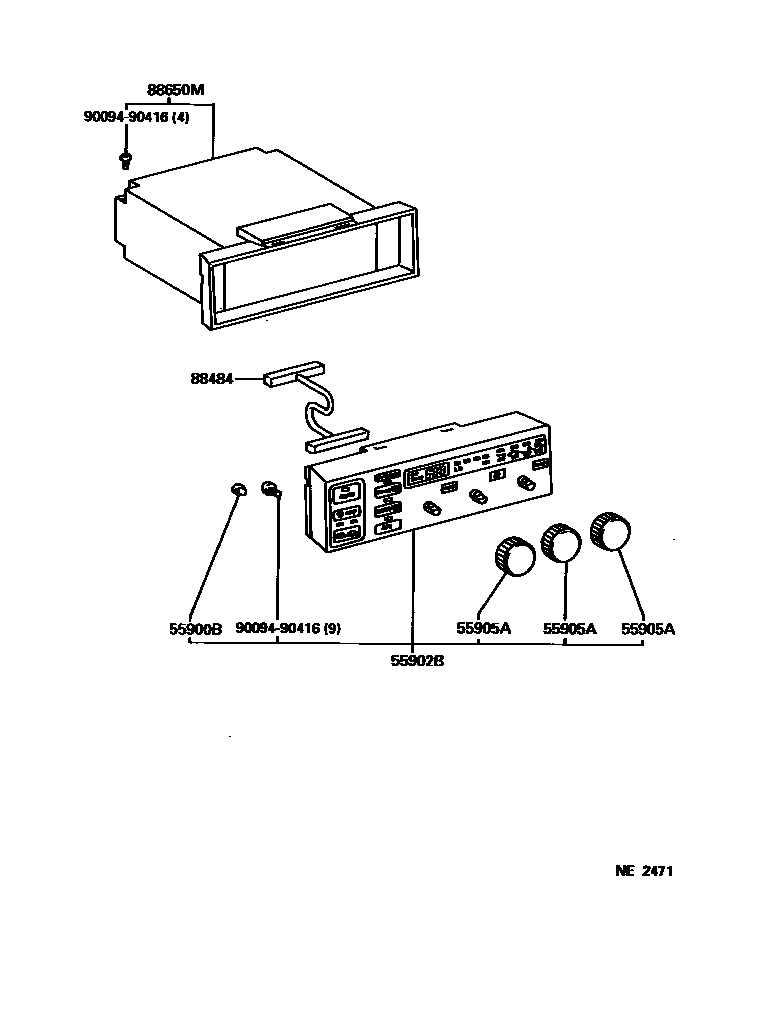

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1 0003 1

55900BBULB, AIR CONDITIONER CONTROL

main84999-60200iJZS147199301-199708

14V 0.84W

main84999-60210iJZS147199301-199708

14V 1.12W,BLACK BASE

main84999-60220iJZS147199301-199708

14V 1.12W,BROWN BASE

main84999-60230iJZS147199301-199708

14V 1.12W,GRAY BASE

55902BCONTROL SUB-ASSY, HEATER

main55902-30070iJZS147..CND199301-199708

main55902-30080iJZS147..USA199301-199708

55905AKNOB, HEATER CONTROL

main55905-30210iJZS147199301-199708

88484WIRE, COOLER, NO.1

main88484-30010iJZS147199301-199708

88650MCOMPUTER ASSY, AIR CONDITIONER

main88650-30880iJZS147199301-199509

main88650-30881iJZS147199509-199608

main88650-30882iJZS147199608-199708

9009490416

main90094-90416

6 parts on this diagram · 3 diagrams in section
