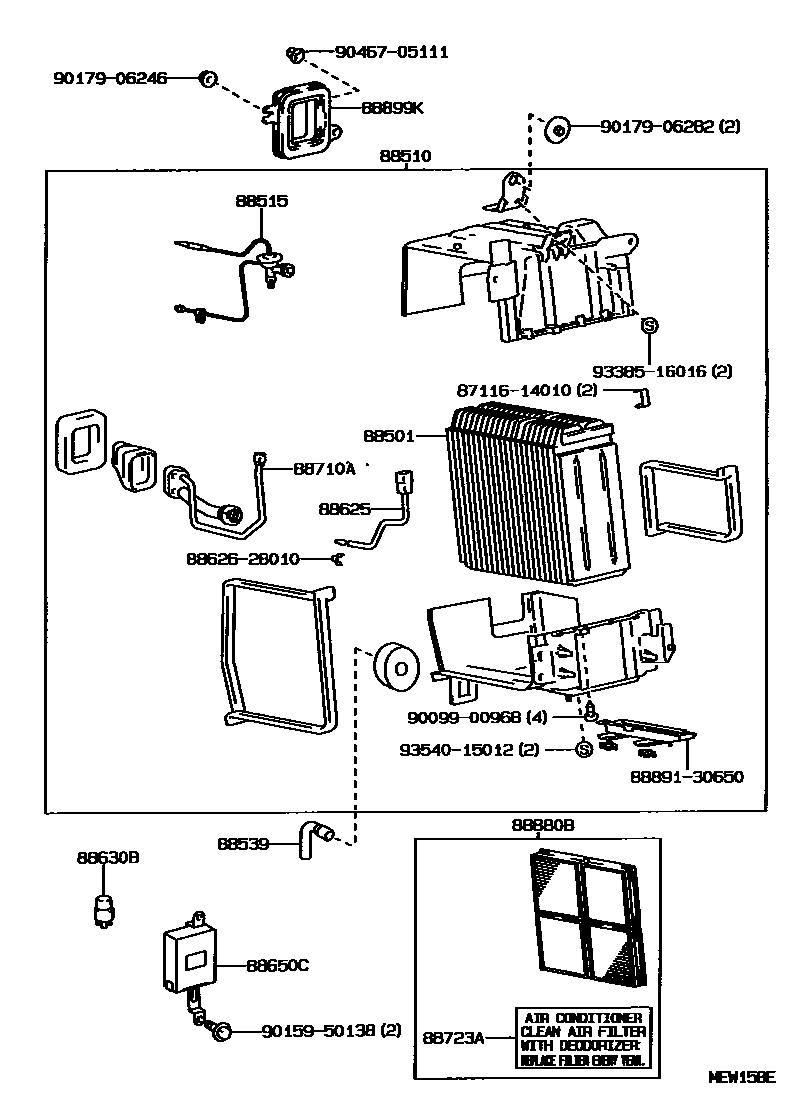

HEATING & AIR CONDITIONING - COOLER UNIT

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-30750iJZS147199301-199411

main88501-30751iJZS147199411-199708

88510UNIT ASSY, COOLER

main88510-3A790iJZS147199301-199708

88515VALVE, COOLER EXPANSION

main88515-30460iJZS147199301-199310

main88515-30461iJZS147199310-199708

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-30710iJZS147199301-199708

88625THERMISTOR, COOLER, NO.1

main88625-3A020iJZS147199301-199708

88630BRELAY ASSY, COOLER

main90987-02009iJZS147199308-199708

main90987-02010iJZS147199301-199308

88650CAMPLIFIER SUB-ASSY, AIRCONDITIONER

main88650-30810iJZS147199301-199508

main88650-30811iJZS147199508-199708

88710ATUBE ASSY, AIR CONDITIONER

main88710-30630iJZS147199301-199708

88723ALABEL, COOLER SERVICE CAUTION

main88723-50120iJZS147199301-199708

88880BFILTER ASSY, CLEAN AIR

main88880-30040iJZS147199301-199708

88899KPLATE, COVER

main88899-30770iJZS147199301-199708

8711614010SPRING, HEATER CASE FASTENING

main87116-14010

8862628010CASE, BLOWER DRIVE SHAFT BEARING

main88626-28010

8889130650PACKING (FOR COOLER)

main88891-30650

9009900968

main90099-00968

9015950138

main90159-50138

9017906246

main90179-06246

9017906282

main90179-06282

9046705111

main90467-05111

9338516016

main93385-16016

9354015012

main93540-15012

21 parts on this diagram · 1 diagram in section
