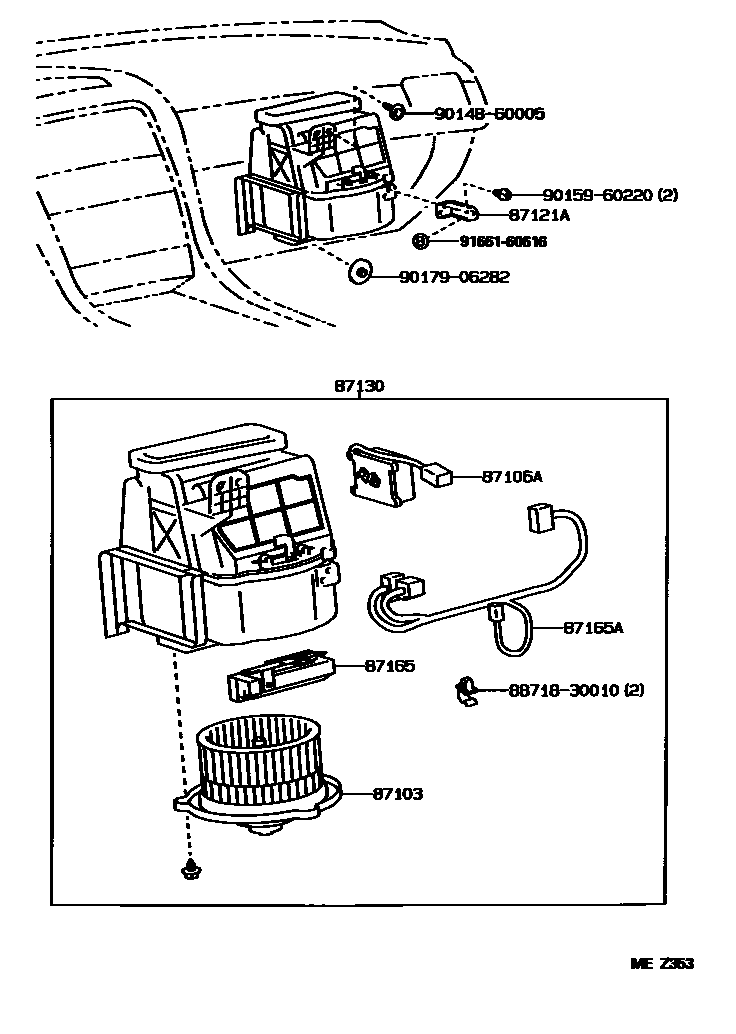

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-30330iJZS147199301-199708

87106ASERVO SUB-ASSY, DAMPER

main87106-30270iJZS147199301-199708

RADIATOR,AIR MIX

main87106-30280iJZS147199301-199708

RADIATOR,BI-LEVEL

main87106-30290iJZS147199301-199708

RADIATOR,MODE

main87106-30300iJZS147199301-199708

BLOWER

87121ABRACKET, HEATER

main87121-30050iJZS147199301-199708

87130BLOWER ASSY, HEATER, FRONT

main87130-30560iJZS147199301-199708

87165CONTROL, BLOWER MOTOR, NO.1

main87165-30090iJZS147199301-199708

87165ACONTROL, BLOWER MOTOR, NO.2

main87165-30070iJZS147199301-199708

8871830010PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-30010

9014860005

main90148-60005

9015960220

main90159-60220

9017906282

main90179-06282

9166160616

main91661-60616

11 parts on this diagram · 2 diagrams in section
