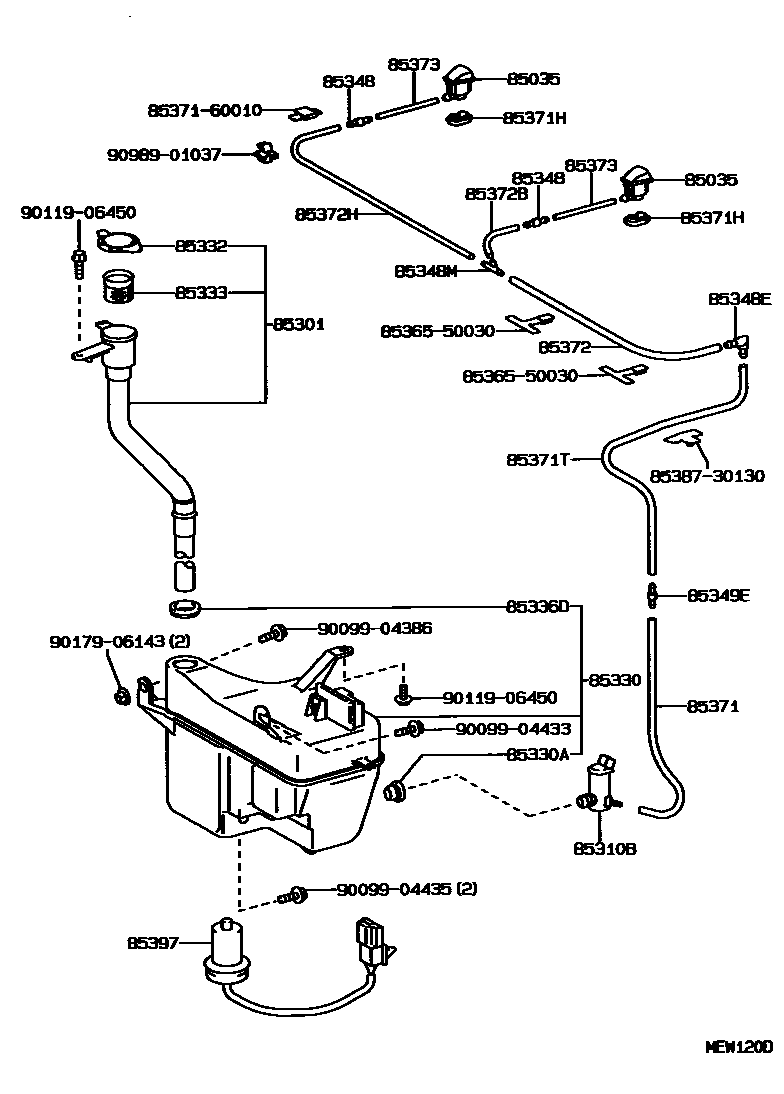

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85385-30030-A0×2iJZS147199301-199508

WARM GRAY PM,046

main85385-30030-A1×2iJZS147..USA199502-199507

TOURING PACKAGE,SUPER WHITE PEARL MC,051

main85385-30030-B0×2iJZS147199301-199308

SUPER SILVER ME,176

main85385-30030-B1×2iJZS147199301-199508

DK BL GRAY ME,183

main85385-30030-B2×2iJZS147199308-199708

SILVER ME,199

main85385-30030-C0×2iJZS147199301-199708

BLACK,202

main85385-30030-D0×2iJZS147199301-199508

WINE RED MIC,3J8

main85385-30030-D1×2iJZS147199508-199708

MEGENTA MC.,3L3

main85385-30030-E1×2iJZS147199301-199408

BEIGE MM,4K9

main85385-30030-E2×2iJZS147..USA199504-199507

TOURING PACKAGE,BEIGE ME,4M9

main85385-30030-G0×2iJZS147199301-199508

BL GREEN MIO,6M2

main85385-30030-G1×2iJZS147199508-199708

GRAYISH GREEN M.M,6N0

main85385-30030-G2×2iJZS147199508-199708

DK.GREEN MC.P.I.O,6N9

main85385-30030-J0×2iJZS147199301-199508

DK BLUE MCFP,8J5

main85385-30030-J1×2iJZS147199508-199708

DK.BLUE MC.,8L1

85301INLET SUB-ASSY, WASHER

main85301-30010iJZS147..USA199301-199404

main85301-30011iJZS147..USA199404-199708

main85301-30030iJZS147..CND199301-199404

main85301-30031iJZS147..CND199404-199708

85310BMOTOR & PUMP ASSY, WINDSHIELD WASHER

main85310-20190iJZS147199301-199708

85330JAR ASSY, WINDSHIELD WASHER

main85315-30250iJZS147..USA199301-199708

main85315-30260iJZS147..CND199301-199708

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iJZS147199301-199708

85332CAP, WINDSHIELD WASHER JAR

main85316-33120iJZS147199308-199708

main85332-22031iJZS147199301-199308

85333FILTER, WINDSHIELD WASHER JAR

main85333-12470iJZS147199301-199708

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30160iJZS147199301-199708

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-10260×2iJZS147199301-199708

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-14030iJZS147199301-199708

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85348-12250iJZS147199301-199708

85349EJOINT, WINDSHIELD WASHER HOSE, NO.5

main85334-22480iJZS147199301-199708

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33827iJZS147199301-199708

L=420

85371HCOVER, WASHER NOZZLE SERVICE HOLE

main85371-50010×2iJZS147199301-199708

85371THOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT)

main90099-33884iJZS147199301-199708

L=1400

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iJZS147199301-199508

L=1450

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iJZS147199301-199708

L=1450

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080iJZS147199301-199708

L=1450

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2iJZS147199301-199708

L=1450

85397SWITCH ASSY,LEVEL WARNING

main85397-33180iJZS147199301-199708

8536550030INSULATOR, WINDSHIELD WASHER JAR

main85365-50030

8537160010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-60010

8538730130CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-30130

9009904386

main90099-04386

9009904433

main90099-04433

9009904435

main90099-04435

9011906450

main90119-06450

9017906143

main90179-06143

9098901037

main90989-01037

29 parts on this diagram · 1 diagram in section
