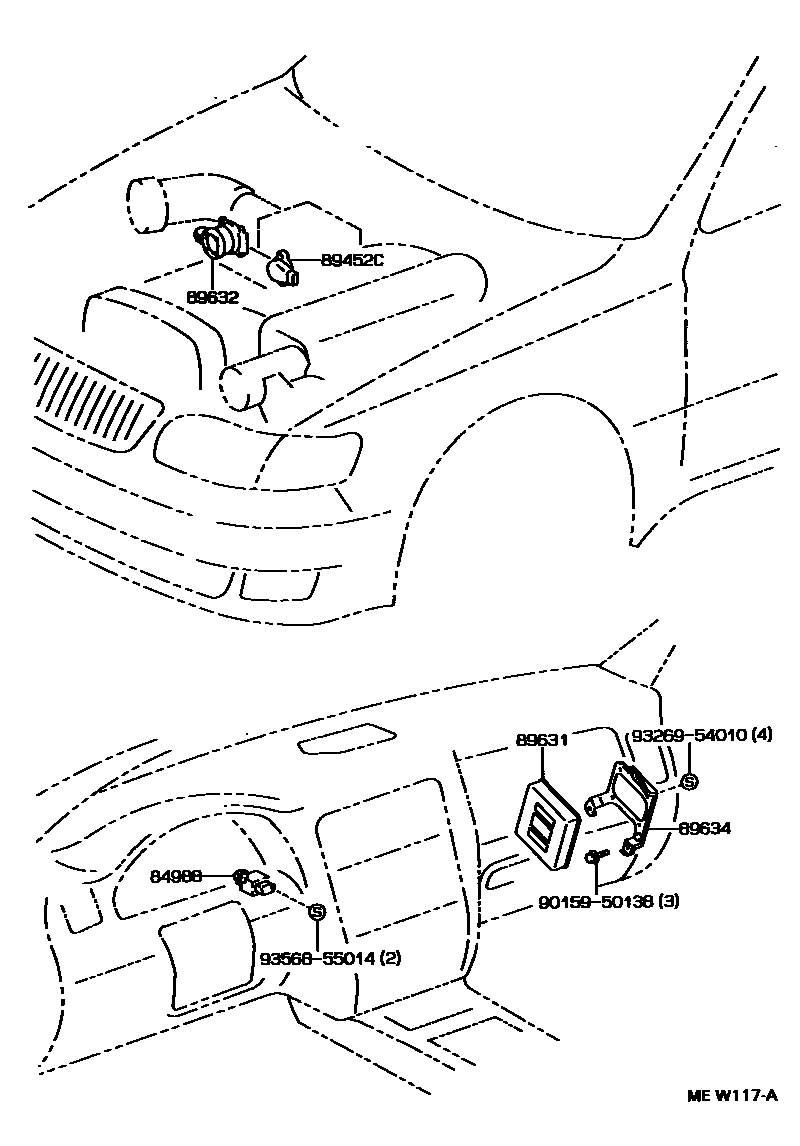

TRACTION CONTROL

84988SWITCH, TRACTION CONTROL

main84988-30110iJZS147199301-199708

89452CSENSOR, THROTTLE POSITION

main89452-22090iJZS147199408-199708

main89452-33010iJZS147199301-199408

89631COMPUTER, TRACTION CONTROL

main89631-30080iJZS147199304-199708

main89631-50010iJZS147199301-199304

89632MOTOR, TRACTION THROTTLE VALVE

main89632-24010iJZS147..CND; JZS147..USA199301-199308

89634BRACKET, TRACTION CONTROL COMPUTER

main89634-30090iJZS147199301-199708

9015950138

main90159-50138

9326954010

main93269-54010

9356855014

main93568-55014

8 parts on this diagram · 1 diagram in section
