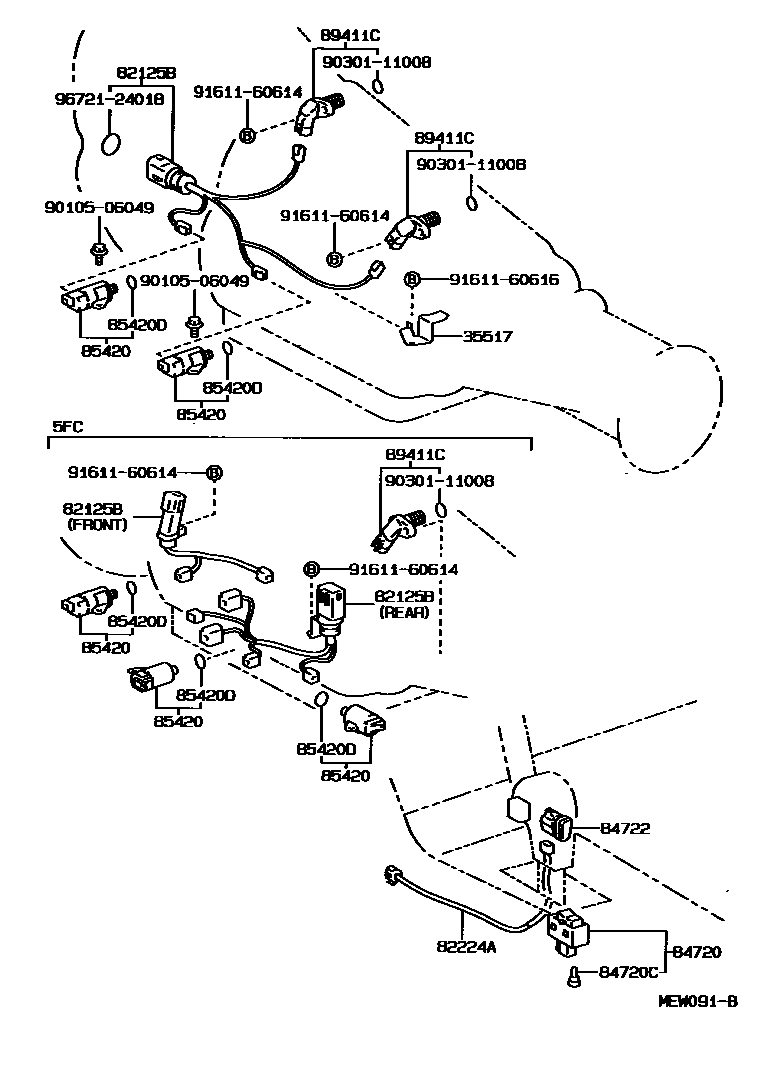

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

35517PLATE, TRANSMISSION WIRE LOCK

main35517-50010iJZS147199301-199508

82125BWIRE, TRANSMISSION

main82125-30280iJZS147199508-199708

RR

main82125-30360iJZS147199508-199708

main82125-50010iJZS147199301-199508

82224AWIRE, OVERDRIVE

main82224-30040iJZS147199301-199708

84720SWITCH ASSY, PATTERN SELECT

main84720-30170iJZS147199301-199708

84720CBULB(FOR PATTERN SELECT SWITCH)

main84999-10320iJZS147199301-199708

14V 0.84W

84722SWITCH, TRANSMISSION CONTROL

main84722-30160-B0iJZS147199301-199708

GRAY,TRIM1#

main84722-30160-E0iJZS147199301-199708

DK.ROSE,TRIM0#

main84722-30160-G0iJZS147199301-199708

SPRUCE GRAY,TRIM6#

85420SOLENOID ASSY, TRANSMISSION

main85420-30170iJZS147199508-199708

LOCK UP

main85420-50020×2iJZS147; JZS147..5FC199301-199708

SHIFT

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004×2iJZS147199301-199508

89411CSENSOR, SPEED

main89411-50010×2iJZS147199301-199508

9010506049

main90105-06049

9030111008

main90301-11008

9161160614

main91611-60614

9161160616

main91611-60616

9672124018

main96721-24018

14 parts on this diagram · 1 diagram in section
