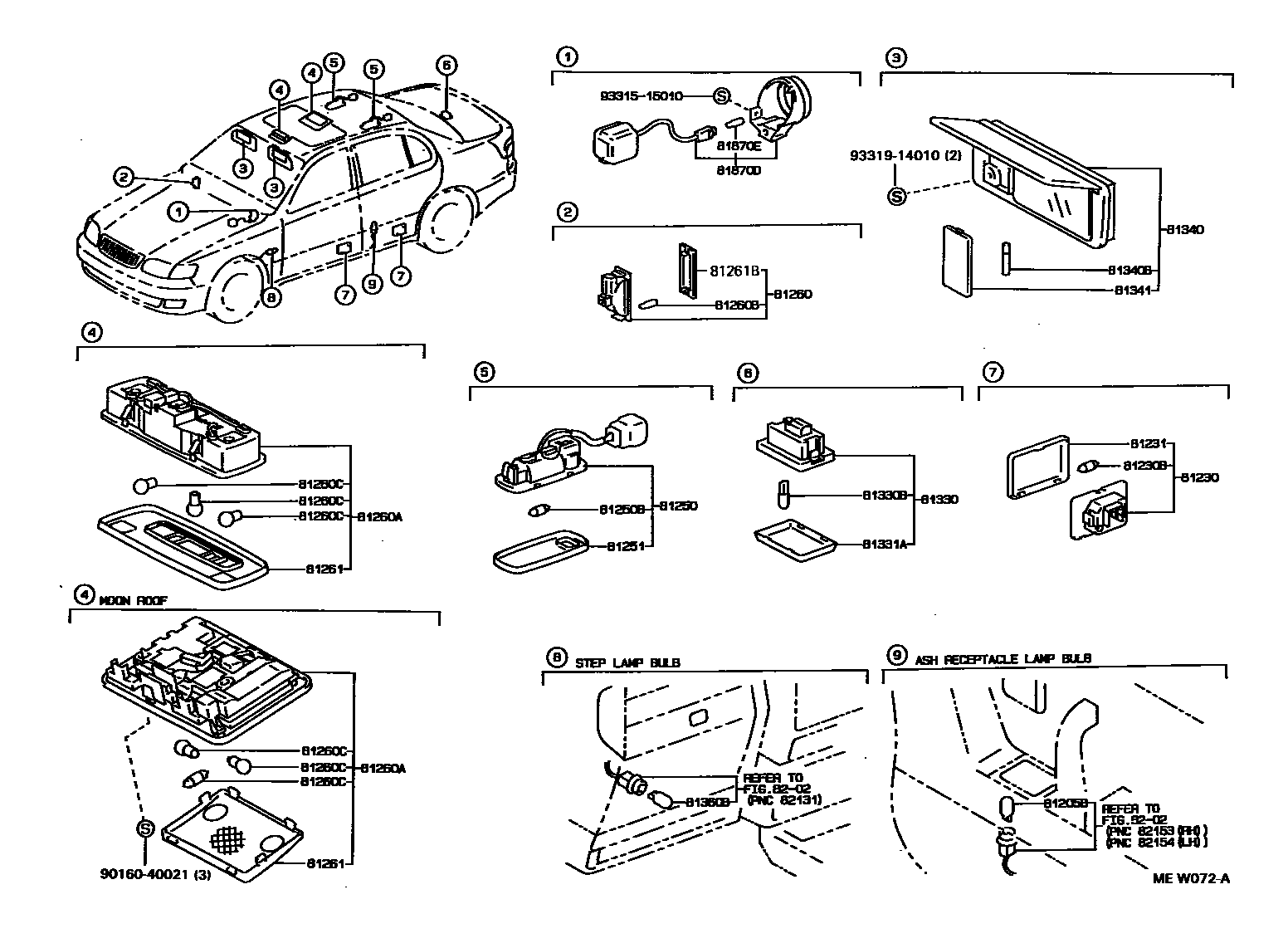

INTERIOR LAMP

81205BBULB, ASH RECEPTACLE LAMP

main90981-11041iJZS147199301-199708

14V 1.4W

81230LAMP ASSY, COURTESY

main81230-30140×4iJZS147199301-199708

81230BBULB(FOR COURTESY LAMP)

main90981-11020×4iJZS147199301-199708

12V 3.8W

81231LENS, COURTESY LAMP

main81231-50010×4iJZS147199301-199708

81250LAMP ASSY, ROOM, NO.2

main81250-30140-A0×2iJZS147199301-199708

IVORY,TRIM0#

main81250-30140-B0×2iJZS147199301-199708

LI.GRAY,TRIM1#

main81250-30140-G0×2iJZS147199301-199708

LI.SPRUCE,TRIM6#

81250BBULB, ROOM LAMP, NO.2

main90981-14010×2iJZS147199301-199708

12V 3W

81251LENS, ROOM LAMP, NO.2

main81251-30140×2iJZS147199301-199708

81260LAMP ASSY, GLOVE BOX

main81260-50010iJZS147199301-199708

81260ALAMP ASSY, MAP

main81260-30180-A0iJZS147199301-199708

IVORY,TRIM0#

main81260-30180-B0iJZS147199301-199708

LI.GRAY,TRIM1#

main81260-30180-G0iJZS147199301-199708

LI.SPRUCE,TRIM6#

main81260-30190-A0iJZS147199308-199708

W(*MR),IVORY,TRIM0#

main81260-30190-B0iJZS147199301-199308

W(*MR),LI.GRAY,TRIM1#

main81260-30190-G0iJZS147199308-199708

W(*MR),LI.SPRUCE,TRIM6#

81260BBULB(FOR GLOVE BOX)

main90981-11018iJZS147199301-199708

12V 1.2W W/O SOCKET

81260CBULB(FOR MAP LAMP)

main90981-12020×3iJZS147199301-199708

12V 8W

main90981-14004iJZS147199308-199708

12V 8W,W(*MR),ROOM LAMP

81261LENS AND COVER, MAP LAMP

main81261-24050iJZS147199308-199708

W(*MR)

main81261-30180-A0iJZS147199301-199708

IVORY,TRIM0#

main81261-30180-B0iJZS147199301-199708

LI.GRAY,TRIM1#

main81261-30180-G0iJZS147199301-199708

LI.SPRUCE,TRIM6#

81261BLENS,GLOVE BOX LAMP

main81261-50010iJZS147199301-199708

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-40020iJZS147199511-199708

main81330-50010iJZS147199301-199511

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020iJZS147199301-199511

12V 3.8W

main99132-12050iJZS147199511-199708

12V 5W

81331ACOVER, LUGGAGE COMPARTMENT LAMP

main81331-50010iJZS147199301-199708

81340LAMP ASSY, VANITY

main81340-30050-A0iJZS147199301-199303

IVORY,TRIM0#,LH

main81340-30050-B0iJZS147199301-199303

LI.GRAY,TRIM1#,LH

main81340-30050-G0iJZS147199301-199303

LI.SPRUCE,TRIM6#,LH

main81340-30051-A0iJZS147199303-199408

IVORY,TRIM0#,LH

main81340-30051-B0iJZS147199303-199408

LI.GRAY,TRIM1#,LH

main81340-30051-G0iJZS147199303-199408

LI.SPRUCE,TRIM6#,LH

main81340-30052-A0iJZS147199408-199608

IVORY,TRIM0#,LH

main81340-30052-B0iJZS147199408-199608

LT.GRAY,TRIM1#,LH

main81340-30052-G0iJZS147199408-199608

SPRUCE,TRIM6#,LH

main81340-30053-A0iJZS147..CND199608-199708

IVORY,TRIM0#,LH

main81340-30053-B0iJZS147..CND199608-199708

LT.GRAY,TRIM1#,LH

main81340-30053-G0iJZS147..CND199608-199708

SPRUCE,TRIM6#,LH

main81350-30010-A0iJZS147199301-199303

IVORY,TRIM0#,RH

main81350-30010-B0iJZS147199301-199303

LI.GRAY,TRIM1#,RH

main81350-30010-G0iJZS147199301-199303

LI.SPRUCE,TRIM6#,RH

main81350-30011-A0iJZS147199303-199408

IVORY,TRIM0#,RH

main81350-30011-B0iJZS147199303-199408

LI.GRAY,TRIM1#,RH

main81350-30011-G0iJZS147199303-199408

LI.SPRUCE,TRIM6#,RH

main81350-30012-A0iJZS147199408-199608

IVORY,TRIM0#,RH

main81350-30012-B0iJZS147199408-199608

LT.GRAY,TRIM1#,RH

main81350-30012-G0iJZS147199408-199608

SPRUCE,TRIM6#,RH

main81350-30013-A0iJZS147..CND199608-199708

IVORY,TRIM0#,RH

main81350-30013-B0iJZS147..CND199608-199708

LT.GRAY,TRIM1#,RH

main81350-30013-G0iJZS147..CND199608-199708

SPRUCE,TRIM6#,RH

81340BBULB (FOR VANITY LAMP)

main90981-14007×2iJZS147..4FC;JZS147..5FC..CND199301-199708

12V 3W

81341LENS, VANITY LAMP

main81341-50010×2iJZS147..4FC;JZS147..5FC..CND199301-199708

81360BBULB, STEP OR SPOT LAMP

main90981-11041×2iJZS147199301-199708

14V 1.4W

81870DLAMP ASSY, KEY CYLINDER

main81870-30060iJZS147199301-199708

81870EBULB, KEY CYLINDER LAMP

main90981-11018iJZS147199301-199708

12V 1.2W W/O SOCKET

8202WIRING & CLAMP

→ Go to FIG 82-02

9016040021

main90160-40021

9331515010

main93315-15010

9331914010

main93319-14010

26 parts on this diagram · 1 diagram in section
