CENTER STOP LAMP

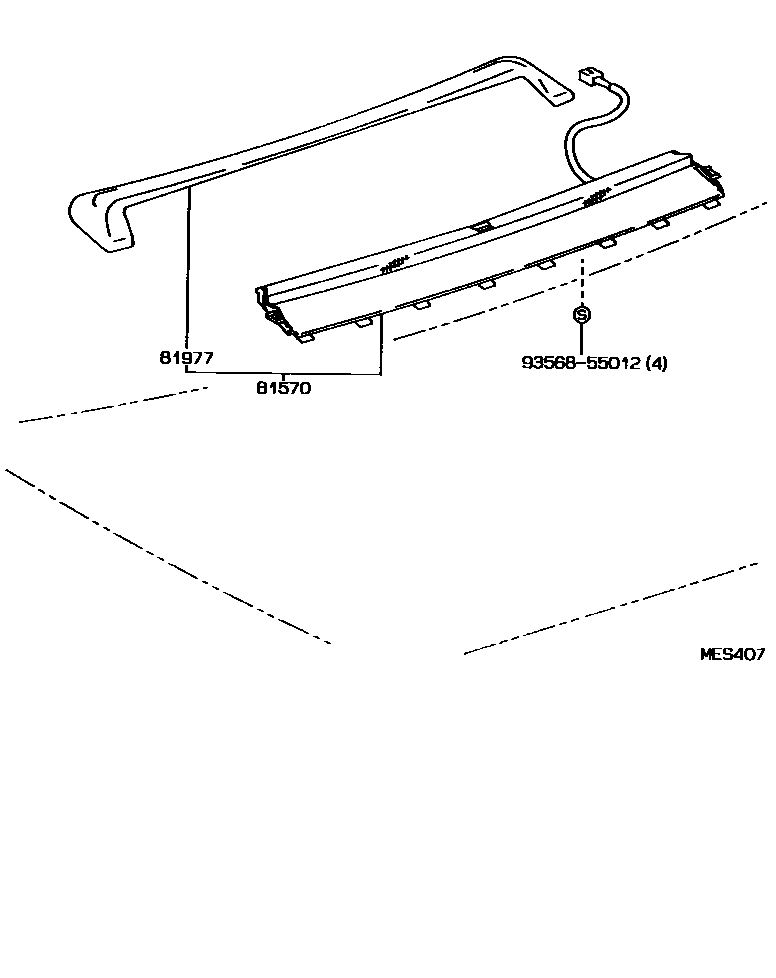

Parts diagram

81570LAMP ASSY, CENTER STOP

main81570-30110-B0i199301-199503

SHADOW GRAY,TRIM1#

main81570-30110-E0i199301-199503

SABLE,TRIM0#

main81570-30110-G0i199301-199503

SPRUCE GRAY,TRIM6#

main81570-30111-B0i199503-199508

SHADOW GRAY,SHADOW GRAY,TRIM1#

main81570-30111-E0i199503-199508

SABLE,SABLE,TRIM0#

main81570-30111-G0i199503-199508

SPRUCE GRAY,DK.SPRUCE GRAY,TRIM6#

main81570-30112-B0i199508-199708

SHADOW GRAY,TRIM1#

main81570-30112-E0i199508-199708

SABLE,TRIM0#

main81570-30112-G0i199508-199708

DK.SPRUCE GRAY,TRIM6#

81977COVER, CENTER STOP LAMP

main81977-30060-B0i199301-199503

SHADOW GRAY,TRIM1#

main81977-30060-E0i199301-199503

SABLE,TRIM0#

main81977-30060-G0i199301-199503

LI.SPRUCE,TRIM6#

main81977-30061-B0i199503-199708

SHADOW GRAY,TRIM1#

main81977-30061-E0i199503-199708

SABLE,TRIM0#

main81977-30061-G0i199503-199708

DK.SPRUCE GRAY,TRIM6#

9356855012

main93568-55012

3 parts on this diagram · 1 diagram in section
