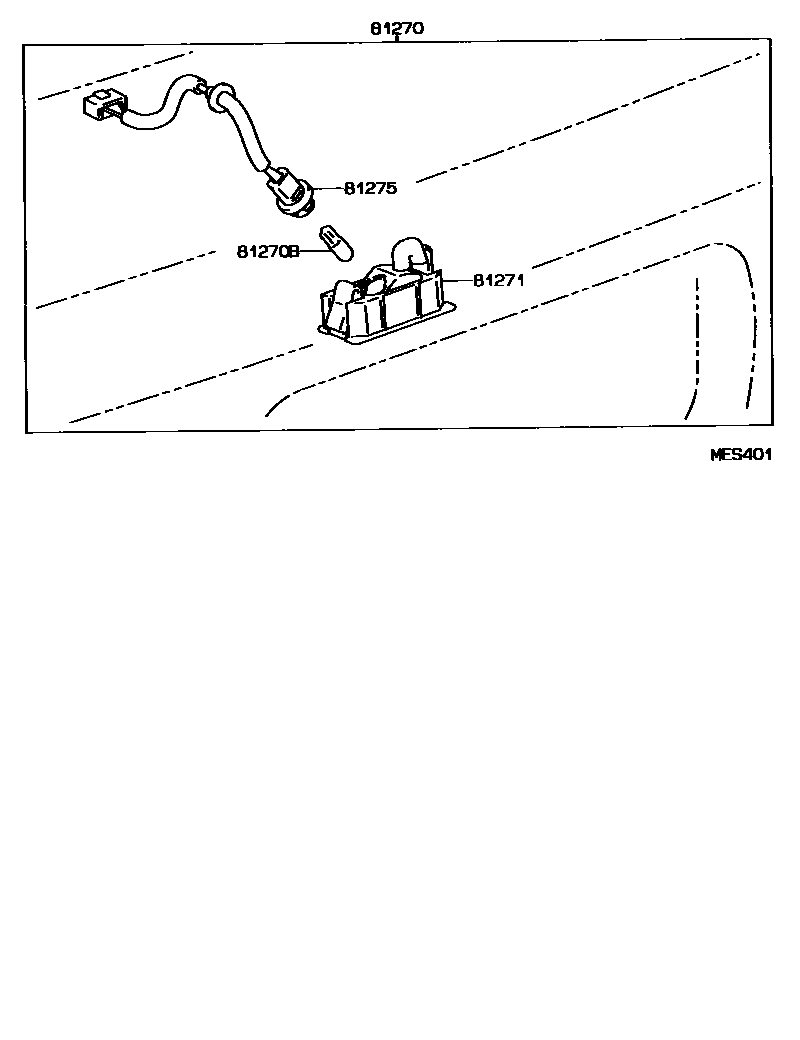

REAR LICENSE PLATE LAMP

81270LAMP ASSY, LICENSE PLATE

main81270-30190×2iJZS147199301-199304

main81270-30240×2iJZS147199304-199708

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050×2iJZS147199301-199708

12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-18010×2iJZS147199301-199304

main81271-30240×2iJZS147199304-199708

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main81275-30190×2iJZS147199301-199708

4 parts on this diagram · 1 diagram in section
