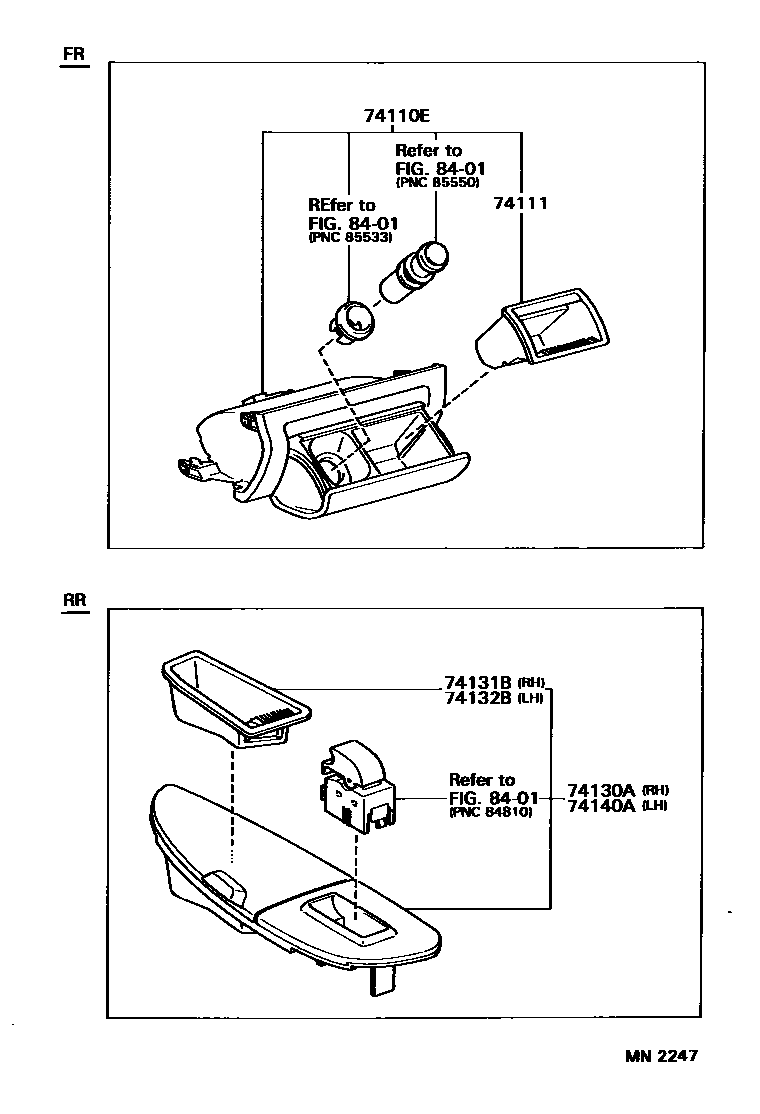

ASH RECEPTACLE

74110ERECEPTACLE ASSY, FRONT ASH

main74110-30170iJZS147199301-199708

74111BOX, FRONT ASH RECEPTACLE

main74111-30130iJZS147199301-199612

main74111-33020iJZS147199612-199708

74130ARECEPTACLE ASSY, REAR ASH, RH

main74270-30021iJZS147199301-199308

main74270-30030iJZS147199308-199708

74131BBOX, REAR ASH RECEPTACLE, RH

main74131-30180iJZS147199301-199708

74132BBOX, REAR ASH RECEPTACLE, LH

main74132-30100iJZS147199301-199708

74140ARECEPTACLE ASSY, REAR ASH, LH

main74280-30021iJZS147199301-199308

main74280-30030iJZS147199308-199708

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

7 parts on this diagram · 1 diagram in section
