CAUTION PLATE (EXTERIOR & INTERIOR)

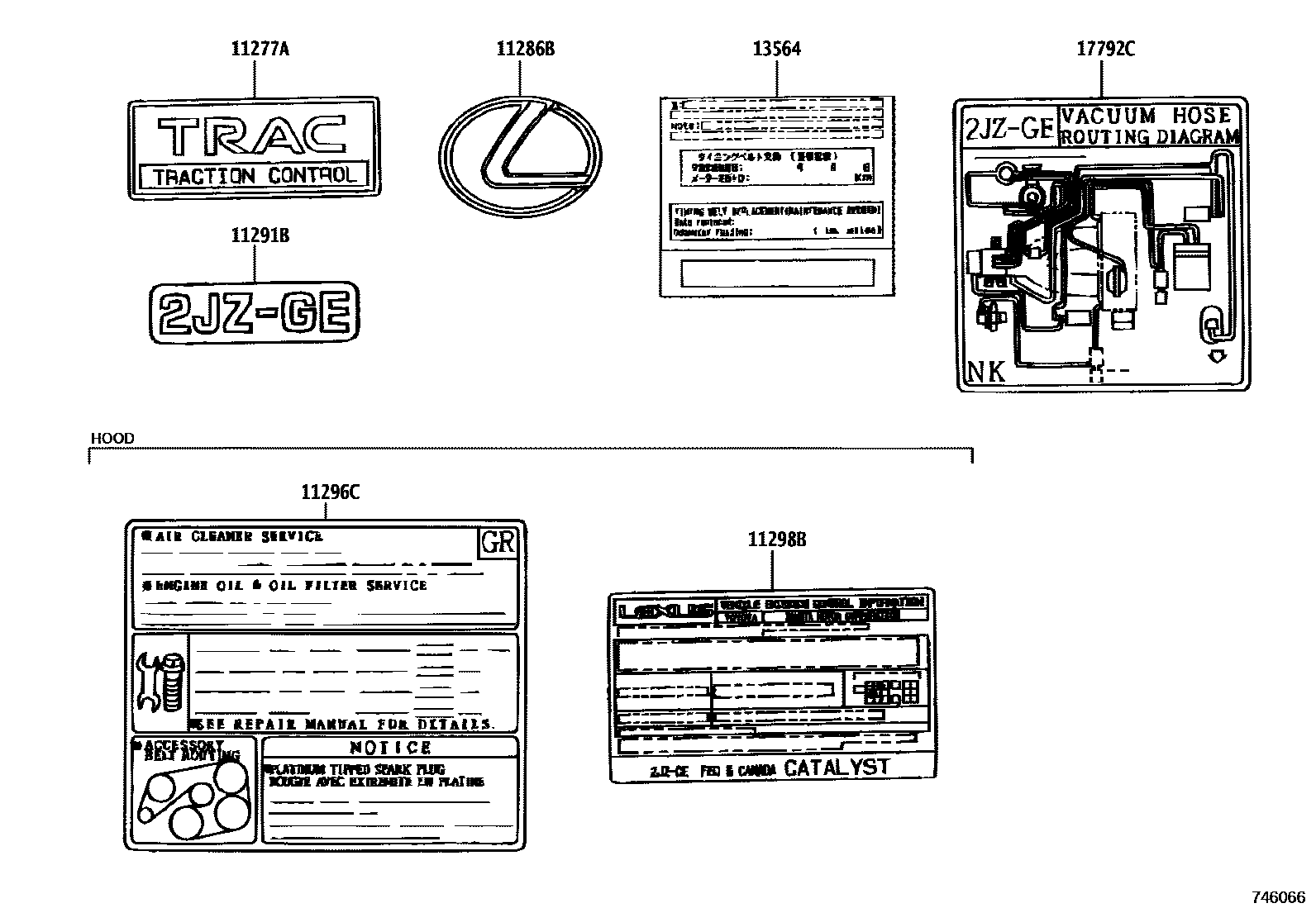

Parts diagram

11277APLATE, ENGINE SPECIFICATION, NO.2

main11277-46050i199301-199308

W/TRACTION CONTROL

main11277-46100i199308-199408

W/TRACTION CONTROL

main11277-46100i199408-199708

11286BPLATE, ENGINE SPECIFICATION

main11286-46030i199301-199708

11291BPLATE, ENGINE NAME

main11291-46010i199308-199708

11296CLABEL, ENGINE SERVICE INFORMATION

main11296-46120i199301-199508

main11296-46121i199508-199603

main11296-46122i199603-199708

11298BLABEL, EMISSION CONTROL INFORMATION

main11298-46070i199301-199308

main11298-46071i199308-199408

main11298-46072i199408-199508

main11298-46073i199508-199608

main11298-46074i199608-199708

main11298-46080i199301-199308

CALIFORNIA SPEC

main11298-46081i199308-199408

CALIFORNIA SPEC

main11298-46083i199408-199508

CALIFORNIA SPEC

main11298-46084i199508-199608

CALIFORNIA SPEC

main11298-46085i199608-199708

CALIFORNIA SPEC

13564LABEL, TIMING BELT REPLACEMENT INFORMATION

main13564-10010i199301

17792CLABEL, ENGINE VACUUM HOSE INFORMATION

main17792-46080i199301-199508

main17792-46081i199508-199708

7 parts on this diagram · 2 diagrams in section
