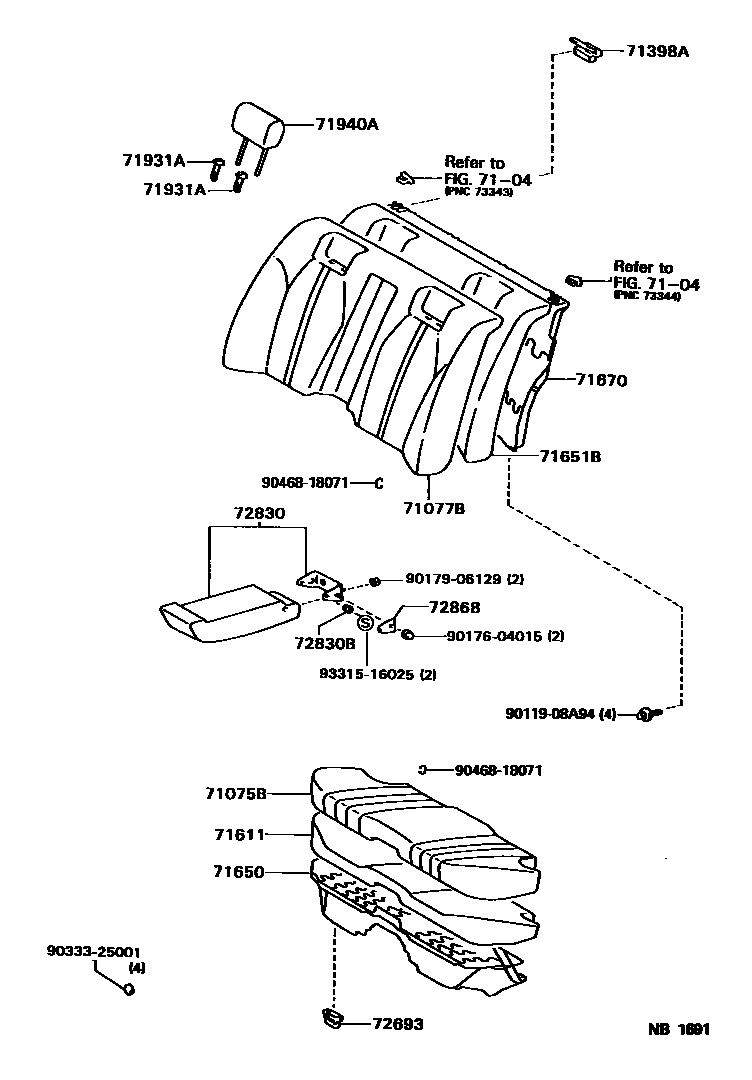

REAR SEAT & SEAT TRACK

0001 1 0002 1 0003 1

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71065-30650-A0iJZS147..CND; JZS147..USA199301-199311

IVORY,TRIM0#; W(LEATHER SEAT),IVORY,TRIM0#

main71065-30650-B0iJZS147..CND; JZS147..USA199301-199311

GRAY,TRIM1#; W(LEATHER SEAT),GRAY,TRIM1#

main71065-30650-G2iJZS147..CND; JZS147..USA199301-199311

LI.SPRUCE,TRIM6#; W(LEATHER SEAT),LI.SPRUCE,TRIM6#

main71065-30660-B0iJZS147..USA199301-199408

SHADOW GRAY,TRIM1#

main71065-30661-B0iJZS147..USA199408-199708

MD.GRAY,TRIM1#

main71075-3A030-A0iJZS147..CND; JZS147..USA199311-199708

IVORY,TRIM0#; W(LEATHER SEAT),IVORY,TRIM0#

main71075-3A030-B0iJZS147..CND; JZS147..USA199311-199708

GRAY,TRIM1#; W(LEATHER SEAT),GRAY,TRIM1#

main71075-3A030-G0iJZS147..CND; JZS147..USA199311-199708

LI.SPRUCE,TRIM6#; W(LEATHER SEAT),LI.SPRUCE,TRIM6#

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-3A740-A0iJZS147..CND; JZS147..USA199301-199308

IVORY,TRIM0#; W(LEATHER SEAT),IVORY,TRIM0#

main71077-3A740-B0iJZS147..CND; JZS147..USA199301-199308

GRAY,TRIM1#; W(LEATHER SEAT),GRAY,TRIM1#

main71077-3A740-G2iJZS147..CND; JZS147..USA199301-199308

LI.SPRUCE,TRIM6#; W(LEATHER SEAT),LI.SPRUCE,TRIM6#

main71077-3A741-A0iJZS147..CND; JZS147..USA199308-199311

IVORY,TRIM0#; W(LEATHER SEAT),IVORY,TRIM0#

main71077-3A741-B0iJZS147..CND; JZS147..USA199308-199311

GRAY,TRIM1#; W(LEATHER SEAT),GRAY,TRIM1#

main71077-3A741-G2iJZS147..CND; JZS147..USA199308-199311

LI.SPRUCE,TRIM6#; W(LEATHER SEAT),LI.SPRUCE,TRIM6#

main71077-3A760-B0iJZS147..USA199301-199308

SHADOW GRAY,TRIM1#

main71077-3A761-B0iJZS147..USA199308-199708

GRAY,TRIM1#

main71077-3F110-A0iJZS147..CND; JZS147..USA199311-199408

IVORY,TRIM0#; W(LEATHER SEAT),IVORY,TRIM0#

main71077-3F110-B0iJZS147..CND; JZS147..USA199311-199408

GRAY,TRIM1#; W(LEATHER SEAT),GRAY,TRIM1#

main71077-3F110-G0iJZS147..CND; JZS147..USA199311-199408

LI.SPRUCE,TRIM6#; W(LEATHER SEAT),LI.SPRUCE,TRIM6#

main71077-3F111-A0iJZS147..CND; JZS147..USA199408-199508

IVORY,TRIM0#; W(LEATHER SEAT),IVORY,TRIM0#

main71077-3F111-B0iJZS147..CND; JZS147..USA199408-199508

MD.GRAY,TRIM1#; W(LEATHER SEAT),MD.GRAY,TRIM1#

main71077-3F111-G0iJZS147..CND; JZS147..USA199408-199508

SPRUCE,TRIM6#; W(LEATHER SEAT),SPRUCE,TRIM6#

main71077-3F112-A0iJZS147..CND; JZS147..USA199508-199708

IVORY,TRIM0#; W(LEATHER SEAT),IVORY,TRIM0#

main71077-3F112-B0iJZS147..CND; JZS147..USA199508-199708

MD.GRAY,TRIM1#; W(LEATHER SEAT),MD.GRAY,TRIM1#

main71077-3F112-G0iJZS147..CND; JZS147..USA199508-199708

SPRUCE,TRIM6#; W(LEATHER SEAT),SPRUCE,TRIM6#

71398AHOLDER, REAR SEATBACK

main71398-24010×4iJZS147199301-199708

71611PAD, REAR SEAT CUSHION

main71611-30710iJZS147199301-199708

71650SPRING ASSY, REAR SEAT CUSHION

main71650-30440iJZS147199301-199708

71651BPAD, REAR SEATBACK(FOR BENCH TYPE)

main71651-30790iJZS147199301-199402

main71651-30870iJZS147..CND; JZS147..USA199402-199708

W(LEATHER SEAT)

71670SPRING ASSY, REAR SEATBACK(FOR BENCH SEAT)

main71670-30560iJZS147199301-199308

main71670-30561iJZS147199308-199708

71931ASUPPORT, REAR SEAT HEADREST

main71930-12070-A0×2iJZS147199301-199708

W(LOCK),IVORY,TRIM0#

main71930-12070-B2×2iJZS147199301-199708

W(LOCK),GRAY,TRIM1#

main71930-12070-G0×2iJZS147199301-199708

W(LOCK),LI.SPRUCE,TRIM6#

main71931-12040-A0×2iJZS147199301-199708

W/O(LOCK),IVORY,TRIM0#

main71931-12040-B2×2iJZS147199301-199708

W/O(LOCK),GRAY,TRIM1#

main71931-12040-G0×2iJZS147199301-199708

W/O(LOCK),LI.SPRUCE,TRIM6#

71940AHEADREST ASSY, REAR SEAT

main71940-30430-A0×2iJZS147..CND; JZS147..USA199301-199311

IVORY,TRIM0#; W(LEATHER SEAT),IVORY,TRIM0#

main71940-30430-B0×2iJZS147..CND; JZS147..USA199301-199311

SHADOW GRAY,TRIM1#; W(LEATHER SEAT),SHADOW GRAY,TRIM1#

main71940-30430-G2×2iJZS147..CND; JZS147..USA199301-199311

LI.SPRUCE,TRIM6#; W(LEATHER SEAT),LI.SPRUCE,TRIM6#

main71940-30460-B0×2iJZS147..USA199301-199708

SHADOW GRAY,TRIM1#

main71940-30610-A0×2iJZS147..CND; JZS147..USA199311-199708

IVORY,TRIM0#; W(LEATHER SEAT),IVORY,TRIM0#

main71940-30610-B0×2iJZS147..CND; JZS147..USA199311-199708

MI.GRAY,TRIM1#; W(LEATHER SEAT),MI.GRAY,TRIM1#

main71940-30610-G0×2iJZS147..CND; JZS147..USA199311-199708

SPRUCE,TRIM6#; W(LEATHER SEAT),SPRUCE,TRIM6#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-14050×2iJZS147199508-199708

main72693-32020×2iJZS147199301-199508

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-30810-A0iJZS147..CND; JZS147..USA199301-199311

IVORY,TRIM0#; W(LEATHER SEAT),IVORY,TRIM0#

main72830-30810-B0iJZS147..CND; JZS147..USA199301-199311

SHADOW GRAY,TRIM1#; W(LEATHER SEAT),SHADOW GRAY,TRIM1#

main72830-30810-G2iJZS147..CND; JZS147..USA199301-199311

LI.SPRUCE,TRIM6#; W(LEATHER SEAT),LI.SPRUCE,TRIM6#

main72830-3A120-B0iJZS147..USA199301-199708

SHADOW GRAY,TRIM1#

main72830-3A180-A0iJZS147..CND; JZS147..USA199311-199708

IVORY,TRIM0#; W(LEATHER SEAT),IVORY,TRIM0#

main72830-3A180-B0iJZS147..CND; JZS147..USA199311-199708

MI.GRAY,TRIM1#; W(LEATHER SEAT),MI.GRAY,TRIM1#

main72830-3A180-G0iJZS147..CND; JZS147..USA199311-199708

SPRUCE,TRIM6#; W(LEATHER SEAT),SPRUCE,TRIM6#

72830BBUSH(FOR REAR SEAT CENTER ARMREST)

main90386-06035×2iJZS147199301-199708

72868COVER, CENTER ARMREST HINGE, RH

main72868-30020-A0iJZS147199301-199708

IVORY,TRIM0#

main72868-30020-B0iJZS147199301-199708

GRAY,TRIM1#

main72868-30020-B1iJZS147..USA199301-199708

MD.GRAY,TRIM1#

main72868-30020-G0iJZS147199301-199708

LI.SPRUCE,TRIM6#

9011908A94

main90119-08A94

9017604015

main90176-04015

9017906129

main90179-06129

9033325001

main90333-25001

9046818071

main90468-18071

9331516025

main93315-16025

20 parts on this diagram · 3 diagrams in section
