FRONT SEAT & SEAT TRACK

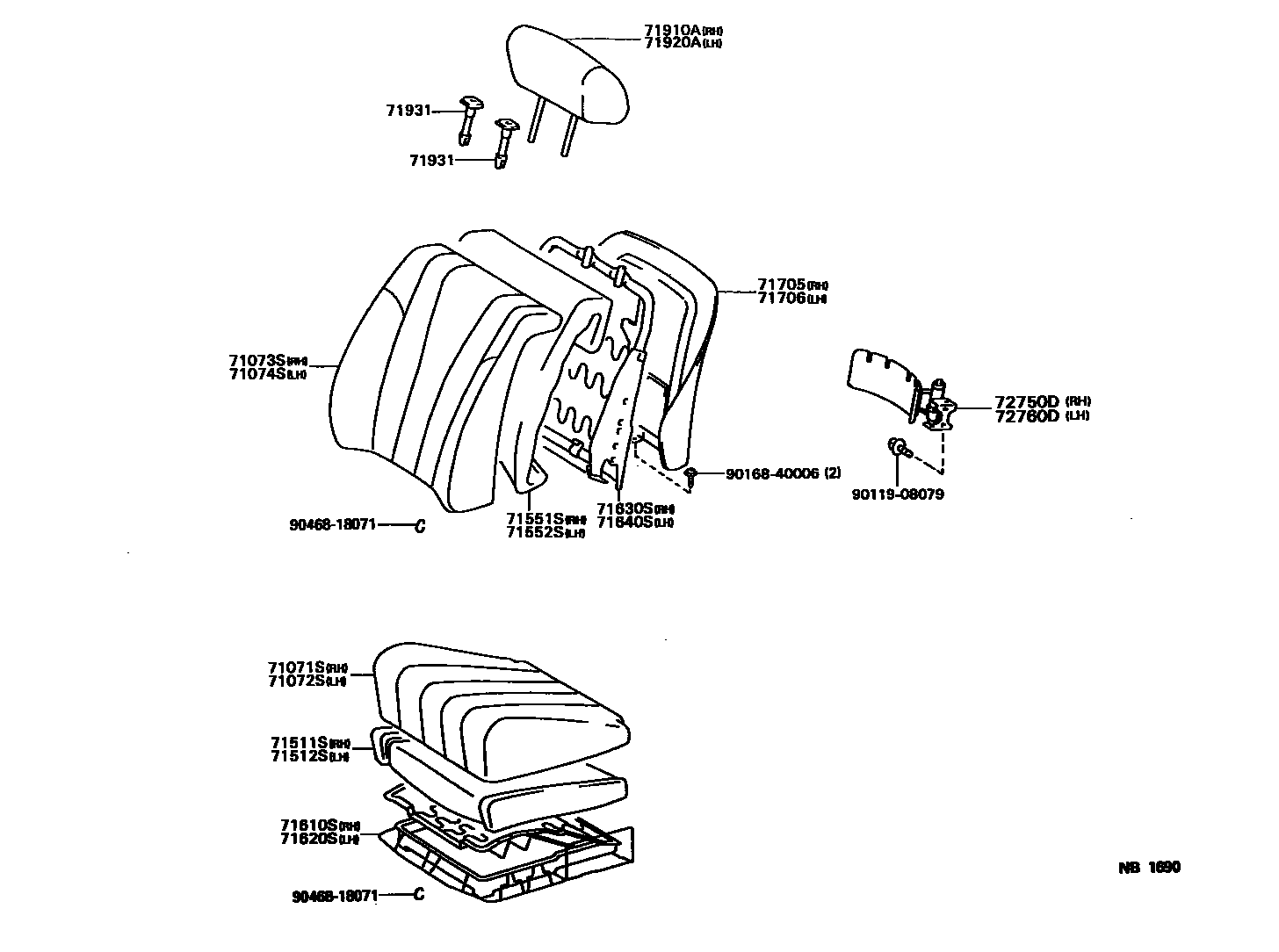

Parts diagram
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-3F370-B0i199301-199308
SHADOW GRAY,TRIM1#
main71071-3F371-B0i199308-199508
GRAY,TRIM1#
main71071-3F670-A0i199301-199308
IVORY,TRIM0#
main71071-3F670-A0i199301-199308
W(LEATHER SEAT & SEAT HEATER),IVORY,TRIM0#
main71071-3F670-B1i199301-199308
W(LEATHER SEAT & SEAT HEATER),SHADOW GRAY,TRIM1#
main71071-3F670-B1i199301-199308
SHADOW GRAY,TRIM1#
main71071-3F670-G0i199301-199308
W(LEATHER SEAT & SEAT HEATER),LI.SPRUCE,TRIM6#
main71071-3F670-G0i199301-199308
LI.SPRUCE,TRIM6#
main71071-3F671-A0i199308-199311
IVORY,TRIM0#
main71071-3F671-A0i199308-199311
W(LEATHER SEAT & SEAT HEATER),IVORY,TRIM0#
main71071-3F671-B1i199308-199311
GRAY,TRIM1#
main71071-3F671-B1i199308-199311
W(LEATHER SEAT & SEAT HEATER),GRAY,TRIM1#
main71071-3F671-G0i199308-199311
W(LEATHER SEAT & SEAT HEATER),LI.SPRUCE,TRIM6#
main71071-3F671-G0i199308-199311
LI.SPRUCE,TRIM6#
main71071-3F672-A0i199311-199508
IVORY,TRIM0#
main71071-3F672-A0i199311-199508
W(LEATHER SEAT & SEAT HEATER),IVORY,TRIM0#
main71071-3F672-B1i199311-199508
W(LEATHER SEAT & SEAT HEATER),GRAY,TRIM1#
main71071-3F672-B1i199311-199508
GRAY,TRIM1#
main71071-3F672-G0i199311-199508
W(LEATHER SEAT & SEAT HEATER),LI.SPRUCE,TRIM6#
main71071-3F672-G0i199311-199508
LI.SPRUCE,TRIM6#
main71071-3F700-A0i199301-199308
W(LEATHER SEAT),IVORY,TRIM0#
main71071-3F700-B0i199301-199308
W(LEATHER SEAT),GRAY,TRIM1#
main71071-3F700-G0i199301-199308
W(LEATHER SEAT),LI.SPRUCE,TRIM6#
main71071-3F701-A0i199308-199311
W(LEATHER SEAT),IVORY,TRIM0#
main71071-3F701-B0i199308-199311
W(LEATHER SEAT),GRAY,TRIM1#
main71071-3F701-G0i199308-199311
W(LEATHER SEAT),LI.SPRUCE,TRIM6#
main71071-3F702-A0i199311-199508
W(LEATHER SEAT),IVORY,TRIM0#
main71071-3F702-B0i199311-199508
W(LEATHER SEAT),GRAY,TRIM1#
main71071-3F702-G0i199311-199508
W(LEATHER SEAT),LI.SPRUCE,TRIM6#
main71071-3F850-B0i199508-199708
MD.GRAY,TRIM1#
main71071-3F860-A0i199508-199708
W(LEATHER SEAT),IVORY,TRIM0#
main71071-3F860-B0i199508-199708
W(LEATHER SEAT),MD.GRAY,TRIM1#
main71071-3F860-G0i199508-199708
W(LEATHER SEAT),SPRUCE,TRIM6#
main71071-3F870-A0i199508-199708
W(LEATHER SEAT & SEAT HEATER),IVORY,TRIM0#
main71071-3F870-A0i199508-199708
IVORY,TRIM0#
main71071-3F870-B0i199508-199708
W(LEATHER SEAT & SEAT HEATER),MD.GRAY,TRIM1#
main71071-3F870-B0i199508-199708
MD.GRAY,TRIM1#
main71071-3F870-G0i199508-199708
SPRUCE,TRIM6#
main71071-3F870-G0i199508-199708
W(LEATHER SEAT & SEAT HEATER),SPRUCE,TRIM6#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-3F110-B0i199301-199308
SHADOW GRAY,TRIM1#
main71072-3F111-B0i199308-199508
GRAY,TRIM1#
main71072-3F130-A0i199301-199308
W(LEATHER SEAT & SEAT HEATER),IVORY,TRIM0#
main71072-3F130-A0i199301-199308
IVORY,TRIM0#
main71072-3F130-B1i199301-199308
W(LEATHER SEAT & SEAT HEATER),SHADOW GRAY,TRIM1#
main71072-3F130-B1i199301-199308
SHADOW GRAY,TRIM1#
main71072-3F130-G0i199301-199308
LI.SPRUCE,TRIM6#
main71072-3F130-G0i199301-199308
W(LEATHER SEAT & SEAT HEATER),LI.SPRUCE,TRIM6#
main71072-3F131-A0i199308-199311
IVORY,TRIM0#
main71072-3F131-A0i199308-199311
W(LEATHER SEAT & SEAT HEATER),IVORY,TRIM0#
main71072-3F131-B1i199308-199311
W(LEATHER SEAT & SEAT HEATER),GRAY,TRIM1#
main71072-3F131-B1i199308-199311
GRAY,TRIM1#
main71072-3F131-G0i199308-199311
W(LEATHER SEAT & SEAT HEATER),LI.SPRUCE,TRIM6#
main71072-3F131-G0i199308-199311
LI.SPRUCE,TRIM6#
main71072-3F132-A0i199311-199508
IVORY,TRIM0#
main71072-3F132-A0i199311-199508
W(LEATHER SEAT & SEAT HEATER),IVORY,TRIM0#
main71072-3F132-B1i199311-199508
W(LEATHER SEAT & SEAT HEATER),GRAY,TRIM1#
main71072-3F132-B1i199311-199508
GRAY,TRIM1#
main71072-3F132-G0i199311-199508
LI.SPRUCE,TRIM6#
main71072-3F132-G0i199311-199508
W(LEATHER SEAT & SEAT HEATER),LI.SPRUCE,TRIM6#
main71072-3F160-A0i199301-199308
W(LEATHER SEAT),IVORY,TRIM0#
main71072-3F160-B0i199301-199308
W(LEATHER SEAT),GRAY,TRIM1#
main71072-3F160-G0i199301-199308
W(LEATHER SEAT),LI.SPRUCE,TRIM6#
main71072-3F161-A0i199308-199311
W(LEATHER SEAT),IVORY,TRIM0#
main71072-3F161-B0i199308-199311
W(LEATHER SEAT),GRAY,TRIM1#
main71072-3F161-G0i199308-199311
W(LEATHER SEAT),LI.SPRUCE,TRIM6#
main71072-3F162-A0i199311-199508
W(LEATHER SEAT),IVORY,TRIM0#
main71072-3F162-B0i199311-199508
W(LEATHER SEAT),GRAY,TRIM1#
main71072-3F162-G0i199311-199508
W(LEATHER SEAT),LI.SPRUCE,TRIM6#
main71072-3F270-B0i199508-199708
MD.GRAY,TRIM1#
main71072-3F280-A0i199508-199708
W(LEATHER SEAT),IVORY,TRIM0#
main71072-3F280-B0i199508-199708
W(LEATHER SEAT),MD.GRAY,TRIM1#
main71072-3F280-G0i199508-199708
W(LEATHER SEAT),SPRUCE,TRIM6#
main71072-3F290-A0i199508-199708
IVORY,TRIM0#
main71072-3F290-A0i199508-199708
W(LEATHER SEAT & SEAT HEATER),IVORY,TRIM0#
main71072-3F290-B0i199508-199708
MD.GRAY,TRIM1#
main71072-3F290-B0i199508-199708
W(LEATHER SEAT & SEAT HEATER),MD.GRAY,TRIM1#
main71072-3F290-G0i199508-199708
SPRUCE,TRIM6#
main71072-3F290-G0i199508-199708
W(LEATHER SEAT & SEAT HEATER),SPRUCE,TRIM6#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-3F090-A0i199301-199303
W(LEATHER SEAT),IVORY,TRIM0#
main71073-3F090-B0i199301-199303
W(LEATHER SEAT),GRAY,TRIM1#
main71073-3F380-B0i199301-199708
SHADOW GRAY,TRIM1#
main71073-3F400-A0i199301-199311
W(LEATHER SEAT & SEAT HEATER),IVORY,TRIM0#
main71073-3F400-A0i199301-199311
IVORY,TRIM0#
main71073-3F400-B1i199301-199311
W(LEATHER SEAT & SEAT HEATER),SHADOW GRAY,TRIM1#
main71073-3F400-B1i199301-199311
SHADOW GRAY,TRIM1#
main71073-3F400-G0i199301-199311
W(LEATHER SEAT & SEAT HEATER),LI.SPRUCE,TRIM6#
main71073-3F400-G0i199301-199311
LI.SPRUCE,TRIM6#
main71073-3F401-A0i199311-199708
W(LEATHER SEAT & SEAT HEATER),IVORY,TRIM0#
main71073-3F401-A0i199311-199708
IVORY,TRIM0#
main71073-3F401-B1i199311-199708
GRAY,TRIM1#
main71073-3F401-B1i199311-199708
W(LEATHER SEAT & SEAT HEATER),GRAY,TRIM1#
main71073-3F401-G0i199311-199708
LI.SPRUCE,TRIM6#
main71073-3F401-G0i199311-199708
W(LEATHER SEAT & SEAT HEATER),LI.SPRUCE,TRIM6#
main71073-3F410-A0i199303-199311
W(LEATHER SEAT),IVORY,TRIM0#
main71073-3F410-B0i199303-199311
W(LEATHER SEAT),GRAY,TRIM1#
main71073-3F410-G0i199303-199311
W(LEATHER SEAT),LI.SPRUCE,TRIM6#
main71073-3F411-A0i199311-199708
W(LEATHER SEAT),IVORY,TRIM0#
main71073-3F411-B0i199311-199708
W(LEATHER SEAT),GRAY,TRIM1#
main71073-3F411-G0i199311-199708
W(LEATHER SEAT),LI.SPRUCE,TRIM6#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71073-3F090-A0i199301-199303
W(LEATHER SEAT),IVORY,TRIM0#
main71073-3F090-B0i199301-199303
W(LEATHER SEAT),GRAY,TRIM1#
main71073-3F380-B0i199301-199708
SHADOW GRAY,TRIM1#
main71074-3A780-A0i199301-199311
IVORY,TRIM0#
main71074-3A780-A0i199301-199311
W(LEATHER SEAT & SEAT HEATER),IVORY,TRIM0#
main71074-3A780-B0i199301-199311
GRAY,TRIM1#
main71074-3A780-B0i199301-199311
W(LEATHER SEAT & SEAT HEATER),GRAY,TRIM1#
main71074-3A780-G0i199301-199311
LI.SPRUCE,TRIM6#
main71074-3A780-G0i199301-199311
W(LEATHER SEAT & SEAT HEATER),LI.SPRUCE,TRIM6#
main71074-3A781-A0i199311-199708
IVORY,TRIM0#
main71074-3A781-A0i199311-199708
W(LEATHER SEAT & SEAT HEATER),IVORY,TRIM0#
main71074-3A781-B0i199311-199708
GRAY,TRIM1#
main71074-3A781-B0i199311-199708
W(LEATHER SEAT & SEAT HEATER),GRAY,TRIM1#
main71074-3A781-G0i199311-199708
W(LEATHER SEAT & SEAT HEATER),LI.SPRUCE,TRIM6#
main71074-3A781-G0i199311-199708
LI.SPRUCE,TRIM6#
main71074-3F010-A0i199303-199311
W(LEATHER SEAT),IVORY,TRIM0#
main71074-3F010-B0i199303-199311
W(LEATHER SEAT),GRAY,TRIM1#
main71074-3F010-G0i199303-199311
W(LEATHER SEAT),LI.SPRUCE,TRIM6#
main71074-3F011-A0i199311-199708
W(LEATHER SEAT),IVORY,TRIM0#
main71074-3F011-B0i199311-199708
W(LEATHER SEAT),GRAY,TRIM1#
main71074-3F011-G0i199311-199708
W(LEATHER SEAT),LI.SPRUCE,TRIM6#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-30830i199301-199508
main71511-3A020i199508-199708
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71512-30470i199301-199508
main71512-30490i199508-199708
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-30770i199301-199708
main71551-30850i199301-199303
W(LEATHER SEAT)
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71551-30770i199301-199708
main71551-30850i199301-199303
W(LEATHER SEAT)
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71610-30602i199301-199708
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71620-30342i199301-199708
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71630-3A040i199301-199303
main71630-3A041i199303-199708
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71640-30890i199301-199303
main71640-30891i199303-199708
71705BOARD SUB-ASSY, FRONT SEATBACK, RH
main71705-30440-B0i199301-199401
GRAY,TRIM1#
main71705-30460-A0i199301-199708
IVORY,TRIM0#
main71705-30460-A0i199301-199708
W(LEATHER SEAT),IVORY,TRIM0#
main71705-30460-B0i199301-199708
GRAY,TRIM1#
main71705-30460-B0i199301-199401
W(LEATHER SEAT),GRAY,TRIM1#
main71705-30460-G0i199301-199708
LI.SPRUCE,TRIM6#
main71705-30460-G0i199301-199708
W(LEATHER SEAT),LI.SPRUCE,TRIM6#
71706BOARD SUB-ASSY, FRONT SEATBACK, LH
main71705-30440-B0i199301-199401
GRAY,TRIM1#
main71705-30460-A0i199301-199708
W(LEATHER SEAT),IVORY,TRIM0#
main71705-30460-A0i199301-199708
IVORY,TRIM0#
main71705-30460-B0i199301-199401
W(LEATHER SEAT),GRAY,TRIM1#
main71705-30460-B0i199301-199708
GRAY,TRIM1#
main71705-30460-G0i199301-199708
LI.SPRUCE,TRIM6#
main71705-30460-G0i199301-199708
W(LEATHER SEAT),LI.SPRUCE,TRIM6#
71910AHEADREST ASSY, FRONT SEAT
main71910-30700-A0i199301-199311
W(LEATHER SEAT),IVORY,TRIM0#
main71910-30700-A0i199301-199311
IVORY,TRIM0#
main71910-30700-B0i199301-199311
SHADOW GRAY,TRIM1#
main71910-30700-B0i199301-199311
W(LEATHER SEAT),SHADOW GRAY,TRIM1#
main71910-30700-G2i199301-199311
LI.SPRUCE,TRIM6#
main71910-30700-G2i199301-199311
W(LEATHER SEAT),LI.SPRUCE,TRIM6#
main71910-30740-B0i199301-199708
SHADOW GRAY,TRIM1#
main71910-30890-A0i199311-199708
IVORY,TRIM0#
main71910-30890-A0i199311-199708
W(LEATHER SEAT),IVORY,TRIM0#
main71910-30890-B0i199311-199708
MI.GRAY,TRIM1#
main71910-30890-B0i199311-199708
W(LEATHER SEAT),MI.GRAY,TRIM1#
main71910-30890-G0i199311-199708
SPRUCE,TRIM6#
main71910-30890-G0i199311-199708
W(LEATHER SEAT),SPRUCE,TRIM6#
71920AHEADREST ASSY, FRONT SEAT, LH
main71910-30700-A0i199301-199311
IVORY,TRIM0#
main71910-30700-A0i199301-199311
W(LEATHER SEAT),IVORY,TRIM0#
main71910-30700-B0i199301-199311
W(LEATHER SEAT),SHADOW GRAY,TRIM1#
main71910-30700-B0i199301-199311
SHADOW GRAY,TRIM1#
main71910-30700-G2i199301-199311
W(LEATHER SEAT),LI.SPRUCE,TRIM6#
main71910-30700-G2i199301-199311
LI.SPRUCE,TRIM6#
main71910-30740-B0i199303-199708
SHADOW GRAY,TRIM1#
main71910-30890-A0i199311-199708
IVORY,TRIM0#
main71910-30890-A0i199311-199708
W(LEATHER SEAT),IVORY,TRIM0#
main71910-30890-B0i199311-199708
W(LEATHER SEAT),MI.GRAY,TRIM1#
main71910-30890-B0i199311-199708
MI.GRAY,TRIM1#
main71910-30890-G0i199311-199708
W(LEATHER SEAT),SPRUCE,TRIM6#
main71910-30890-G0i199311-199708
SPRUCE,TRIM6#
main71920-30530-B0i199301-199303
SHADOW GRAY,TRIM1#
71931SUPPORT, FRONT SEAT HEADREST
main71930-12070-A0i199301-199708
W(LOCK),IVORY,TRIM0#
main71930-12070-B2i199301-199708
W(LOCK),GRAY,TRIM1#
main71930-12070-G0i199301-199708
W(LOCK),LI.SPRUCE,TRIM6#
main71931-12040-A0i199301-199708
W/O(LOCK),IVORY,TRIM0#
main71931-12040-B2i199301-199708
W/O(LOCK),GRAY,TRIM1#
main71931-12040-G0i199301-199708
W/O(LOCK),LI.SPRUCE,TRIM6#
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
main72750-30160i199301-199708
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72750-30210i199301-199708
9011908079
main90119-08079
9016840006
main90168-40006
9046818071
main90468-18071

22 parts on this diagram · 4 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
