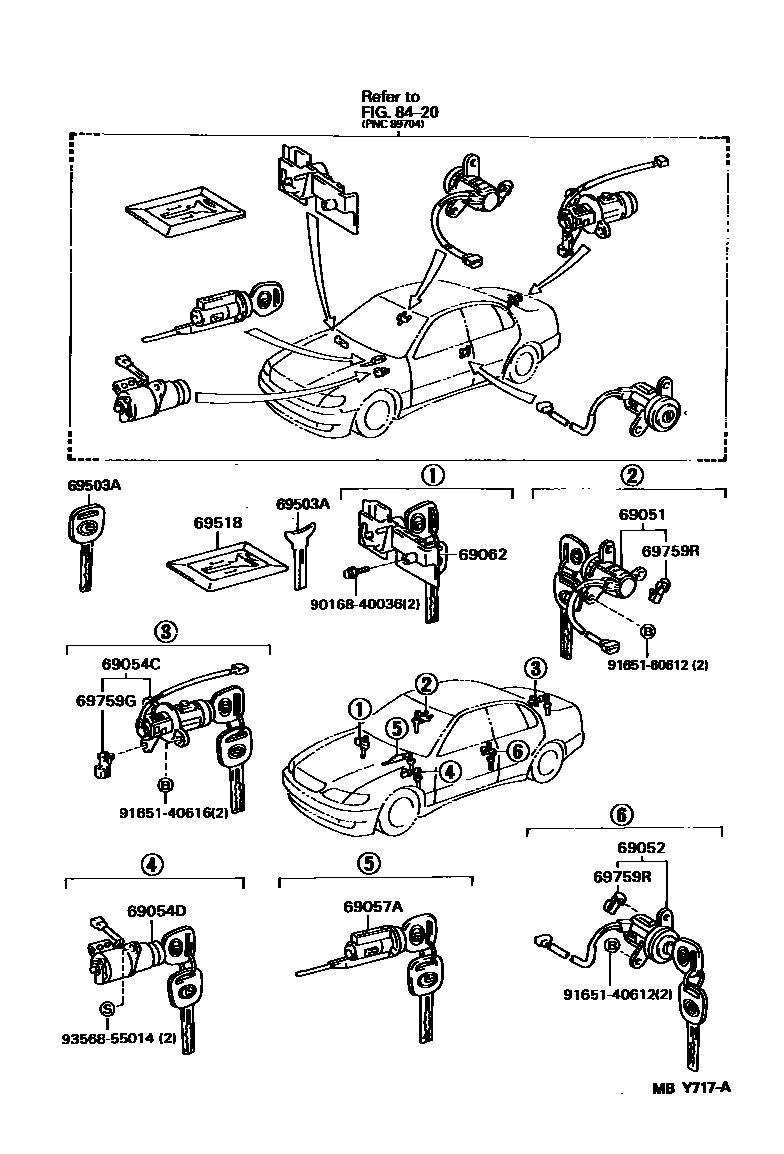

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-30230iJZS147199301-199708

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-30200iJZS147199301-199708

69054CCYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-30290iJZS147199301-199708

69054DCYLINDER & KEY SET, LUGGAGE OPENER CANCEL

main69053-30040iJZS147199301-199708

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-30140iJZS147199301-199708

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-30160iJZS147199301-199708

69503AKEY, BLANK

main90999-00173iJZS147199301-199708

MASTER KEY,CARD TYPE

main90999-00221iJZS147199301-199708

SUB KEY,W(*68)

69518CARD, SPARE KEY

main69518-50011iJZS147199301-199708

69759GSNAP, LUGGAGE DOOR LOCK CYLINDER

main69759-24080iJZS147199301-199708

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-24100iJZS147; JZS147..4FC199301-199708

0RANGE; ORANGE

main69759-24110iJZS147199301-199708

PINK

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

9016840036

main90168-40036

9165140612

main91651-40612

9165140616

main91651-40616

9165160612

main91651-60612

9356855014

main93568-55014

16 parts on this diagram · 1 diagram in section
