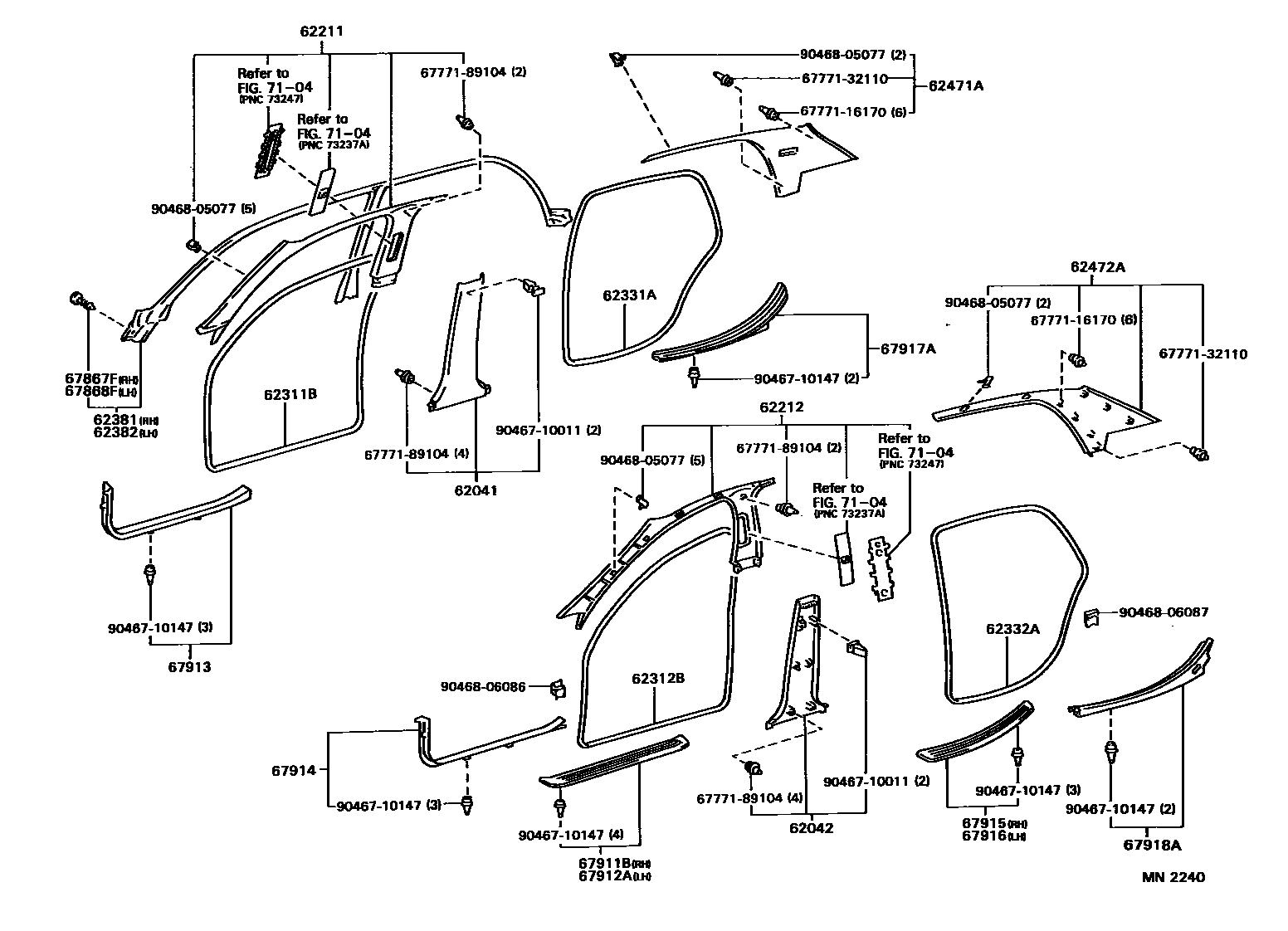

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62041PANEL SUB-ASSY, CENTER PILLAR GARNISH, LOWER RH

main62041-30090-A0iJZS147199301-199508

IVORY,TRIM0#

main62041-30090-B0iJZS147199301-199508

GRAY,TRIM1#

main62041-30090-G0iJZS147199301-199508

LI.SPRUCE,TRIM6#

main62041-30092-A0iJZS147199508-199708

IVORY,TRIM0#

main62041-30092-B0iJZS147199508-199708

MD.GRAY,TRIM1#

main62041-30092-G0iJZS147199508-199708

SPRUCE,TRIM6#

62042PANEL SUB-ASSY, CENTER PILLAR GARNISH, LOWER LH

main62042-30090-A0iJZS147199301-199508

IVORY,TRIM0#

main62042-30090-B0iJZS147199301-199508

GRAY,TRIM1#

main62042-30090-G0iJZS147199301-199508

LI.SPRUCE,TRIM6#

main62042-30092-A0iJZS147199508-199708

IVORY,TRIM0#

main62042-30092-B0iJZS147199508-199708

MD.GRAY,TRIM1#

main62042-30092-G0iJZS147199508-199708

SPRUCE,TRIM6#

62211GARNISH, FRONT PILLAR, RH

main62210-30150-A0iJZS147199301-199708

IVORY,TRIM0#

main62210-30150-B0iJZS147199301-199708

SHADOW GRAY,TRIM1#

main62210-30150-G0iJZS147199301-199708

LI.SPRUCE,TRIM6#

62212GARNISH, FRONT PILLAR, LH

main62220-30150-A0iJZS147199301-199708

IVORY,TRIM0#

main62220-30150-B0iJZS147199301-199708

SHADOW GRAY,TRIM1#

main62220-30150-G0iJZS147199301-199708

LI.SPRUCE,TRIM6#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-30150-B0iJZS147199301-199303

SHADOW GRAY,TRIM1#

main62311-30150-E0iJZS147199301-199303

SABLE,TRIM0#

main62311-30150-G0iJZS147199301-199303

LI.SPRUCE,TRIM6#

main62311-30200-B0iJZS147199303-199708

SHADOW GRAY,TRIM1#

main62311-30200-E0iJZS147199303-199708

SABLE,TRIM0#

main62311-30200-G0iJZS147199303-199708

LI.SPRUCE,TRIM6#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-30140-B0iJZS147199301-199303

SHADOW GRAY,TRIM1#

main62312-30140-E0iJZS147199301-199303

SABLE,TRIM0#

main62312-30140-G0iJZS147199301-199303

LI.SPRUCE,TRIM6#

main62312-30190-B0iJZS147199303-199708

SHADOW GRAY,TRIM1#

main62312-30190-E0iJZS147199303-199708

SABLE,TRIM0#

main62312-30190-G0iJZS147199303-199708

LI.SPRUCE,TRIM6#

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-30120-B0iJZS147199301-199708

SHADOW GRAY,TRIM1#

main62331-30120-E0iJZS147199301-199708

SABLE,TRIM0#

main62331-30120-G0iJZS147199301-199708

LI.SPRUCE,TRIM6#

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-30120-B0iJZS147199301-199708

SHADOW GRAY,TRIM1#

main62332-30120-E0iJZS147199301-199708

SABLE,TRIM0#

main62332-30120-G0iJZS147199301-199708

LI.SPRUCE,TRIM6#

62381WEATHERSTRIP, ROOF SIDE RAIL, FRONT RH

main62381-30100iJZS147199301-199708

62382WEATHERSTRIP, ROOF SIDE RAIL, FRONT LH

main62382-30100iJZS147199301-199708

62471AGARNISH, ROOF SIDE, INNER RH

main62470-30370-A0iJZS147199301-199708

IVORY,TRIM0#

main62470-30370-B0iJZS147199301-199708

SHADOW GRAY,TRIM1#

main62470-30370-G0iJZS147199301-199708

LI.SPRUCE,TRIM6#

62472AGARNISH, ROOF SIDE, INNER LH

main62480-30330-A0iJZS147199301-199708

IVORY,TRIM0#

main62480-30330-B0iJZS147199301-199708

SHADOW GRAY,TRIM1#

main62480-30330-G0iJZS147199301-199708

LI.SPRUCE,TRIM6#

67867FRETAINER, DOOR WEATHERSTRIP, RH

main67867-50020iJZS147199301-199708

67868FRETAINER, DOOR WEATHERSTRIP, LH

main67867-50020iJZS147199301-199708

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-30050iJZS147199301-199708

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-30060iJZS147199301-199708

67913PLATE, FRONT DOOR SCUFF, RH

main67913-30190-A0iJZS147199301-199708

IVORY,TRIM0#

main67913-30190-B0iJZS147199301-199708

GRAY,TRIM1#

main67913-30190-G0iJZS147199301-199708

LI.SPRUCE,TRIM6#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-30190-A0iJZS147199301-199708

IVORY,TRIM0#

main67914-30190-B0iJZS147199301-199708

GRAY,TRIM1#

main67914-30190-G0iJZS147199301-199708

LI.SPRUCE,TRIM6#

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-30040iJZS147199301-199708

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67916-30040iJZS147199301-199708

67917APLATE, REAR DOOR SCUFF, RH

main67917-30140-A0iJZS147199301-199708

IVORY,TRIM0#

main67917-30140-B0iJZS147199301-199708

GRAY,TRIM1#

main67917-30140-G0iJZS147199301-199708

LI.SPRUCE,TRIM6#

67918APLATE, REAR DOOR SCUFF, LH

main67918-30120-A0iJZS147199301-199708

IVORY,TRIM0#

main67918-30120-B0iJZS147199301-199708

GRAY,TRIM1#

main67918-30120-G0iJZS147199301-199708

LI.SPRUCE,TRIM6#

7104

6777116170WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-16170

6777132110WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-32110

6777189104WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-89104

9046710011

main90467-10011

9046710147

main90467-10147

9046805077

main90468-05077

9046806086

main90468-06086

9046806087

main90468-06087

31 parts on this diagram · 1 diagram in section
