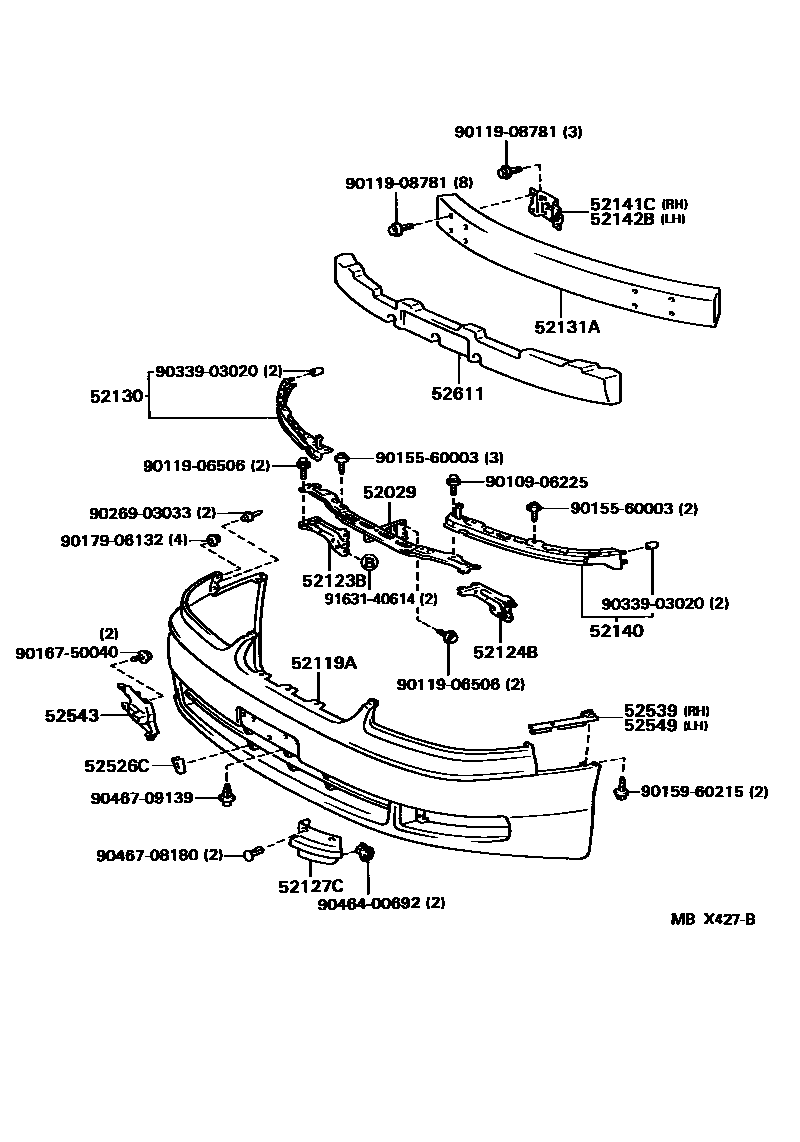

FRONT BUMPER & BUMPER STAY

52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

main52029-30050iJZS147199301-199708

52119ACOVER, FRONT BUMPER

main52119-30927iJZS147..USA199301-199708

main52119-30928iJZS147..CND199301-199708

52123BPLATE, FRONT BUMPER REINFORCEMENT, RH

main52123-30060iJZS147199301-199708

52124BPLATE, FRONT BUMPER REINFORCEMENT, LH

main52124-30050iJZS147199301-199708

52127CCOVER, FRONT BUMPER HOLE

main52127-30900iJZS147199301-199708

52130BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, RH

main52130-30020iJZS147199301-199708

52131AREINFORCEMENT, FRONT BUMPER

main52131-30130iJZS147199301-199708

52140BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, LH

main52140-30020iJZS147199301-199708

52141CARM, FRONT BUMPER, RH

main52141-30230iJZS147199301-199708

52142BARM, FRONT BUMPER, LH

main52142-30240iJZS147199301-199708

52526CRETAINER, FRONT BUMPER, LOWER

main52526-30080×6iJZS147199301-199708

52539RETAINER, FRONT BUMPER SIDE, NO.3 RH

main52539-30030iJZS147199301-199708

52543SEAL, FRONT BUMPER SIDE, RH

main52543-30070iJZS147199301-199708

52549RETAINER, FRONT BUMPER SIDE, NO.3 LH

main52549-30030iJZS147199301-199708

52611ABSORBER, FRONT BUMPER ENERGY

main52611-30140iJZS147199301-199708

9010906225

main90109-06225

9011906506

main90119-06506

9011908781

main90119-08781

9015560003

main90155-60003

9015960215

main90159-60215

9016750040

main90167-50040

9017906132

main90179-06132

9026903033

main90269-03033

9033903020

main90339-03020

9046400692

main90464-00692

9046708180

main90467-08180

9046709139

main90467-09139

9163140614

main91631-40614

28 parts on this diagram · 1 diagram in section
