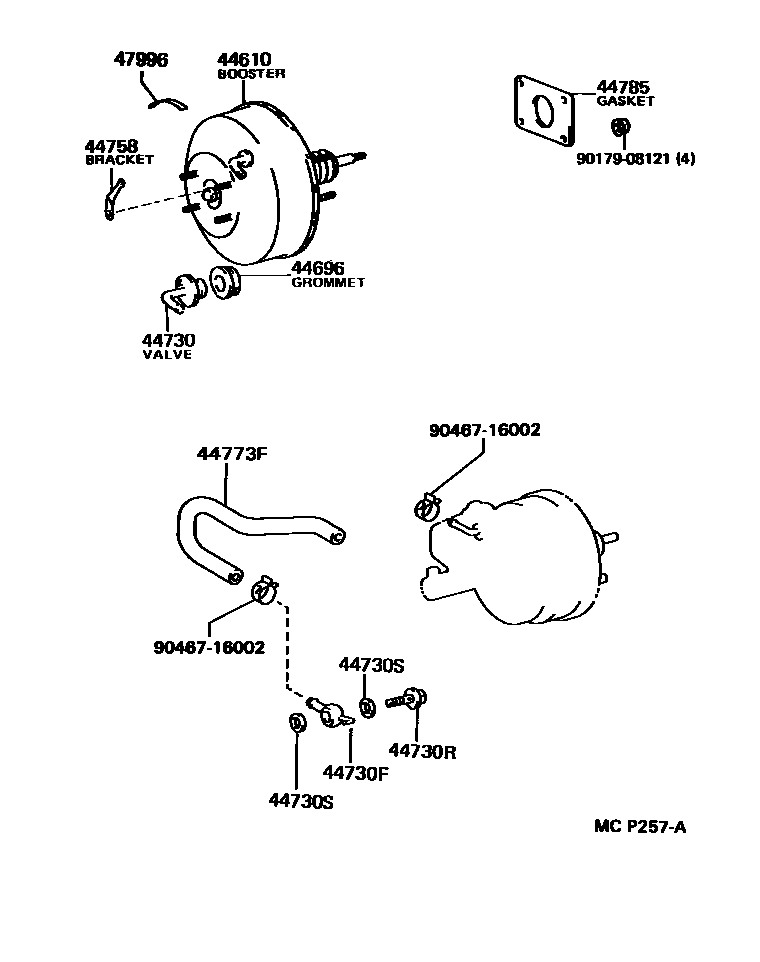

BRAKE BOOSTER & VACUUM TUBE

44610BOOSTER ASSY, BRAKE

main44610-3A020199301-199708

44696GROMMET, CHECK VALVE

main90480-24015199301-199708

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-30050199301-199708

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90405-09160199301-199708

44730RBOLT, UNION(FOR VACUUM HOSE UNION)

main90401-12012199301-199708

44730SGASKET(FOR VACUUM HOSE UNION)

main90430-12005199301-199708

44758BRACKET, VACUUM CHECK VALVE

main44758-30170199301-199708

44773FHOSE, UNION TO CHECK VALVE

main44773-30530199301-199708

44785GASKET, BRAKE BOOSTER

main44785-30030199301-199708

47996LABEL, BRAKE BLEED NOTICE

main47996-50010199301-199708

9017908121

main90179-08121

9046716002

main90467-16002

12 parts on this diagram · 1 diagram in section
