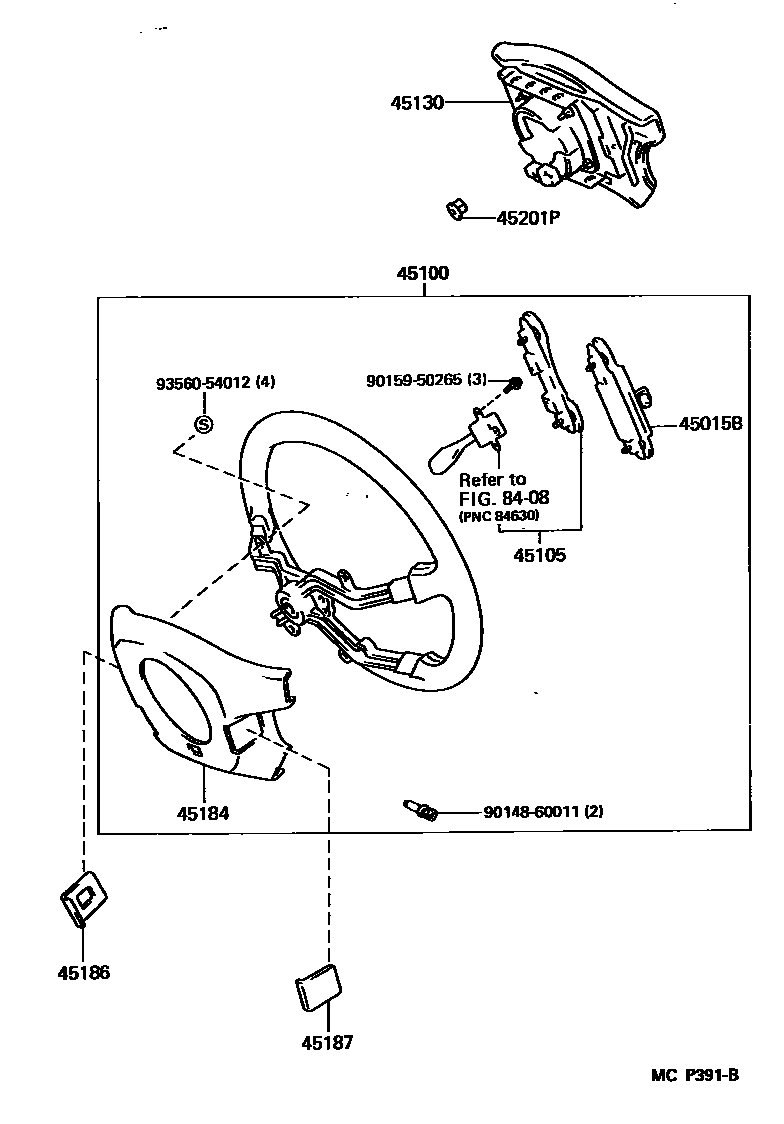

STEERING WHEEL

45015BPLATE SUB-ASSY, HORN BUTTON CONTACT, NO.2

main45015-30030199301-199708

45100WHEEL ASSY, STEERING

main45100-30630-B0199301-199408

main45100-30630-E0199301-199408

main45100-30630-G0199301-199408

main45100-30640-B2199301-199508

main45100-30641-B2199508-199708

main45100-30670-B0199408-199508

main45100-30670-E0199408-199508

main45100-30670-G0199408-199508

main45100-30671-B0199508-199708

main45100-30671-E0199508-199708

main45100-30671-G0199508-199708

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-30210199301-199708

45130BUTTON ASSY, HORN

main45130-30450-B0199301-199508

main45130-30450-E0199301-199508

main45130-30450-G0199301-199508

main45130-30451-B0199508-199708

main45130-30451-E0199508-199708

main45130-30451-G0199508-199708

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-30240-B0199301-199508

main45184-30240-E0199301-199508

main45184-30240-G0199301-199508

main45184-30241-B0199508-199708

main45184-30241-E0199508-199708

main45184-30241-G0199508-199708

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-30020-B0199301-199708

main45186-30020-E0199301-199708

main45186-30020-G0199301-199708

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-30020-B0199301-199708

main45187-30020-E0199301-199708

main45187-30020-G0199301-199708

45201PNUT, STEERING WHEEL SET

main90179-12071199306-199708

main90179-12086199301-199306

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

9014860011

main90148-60011

9015950265

main90159-50265

9356054012

main93560-54012

12 parts on this diagram · 1 diagram in section
