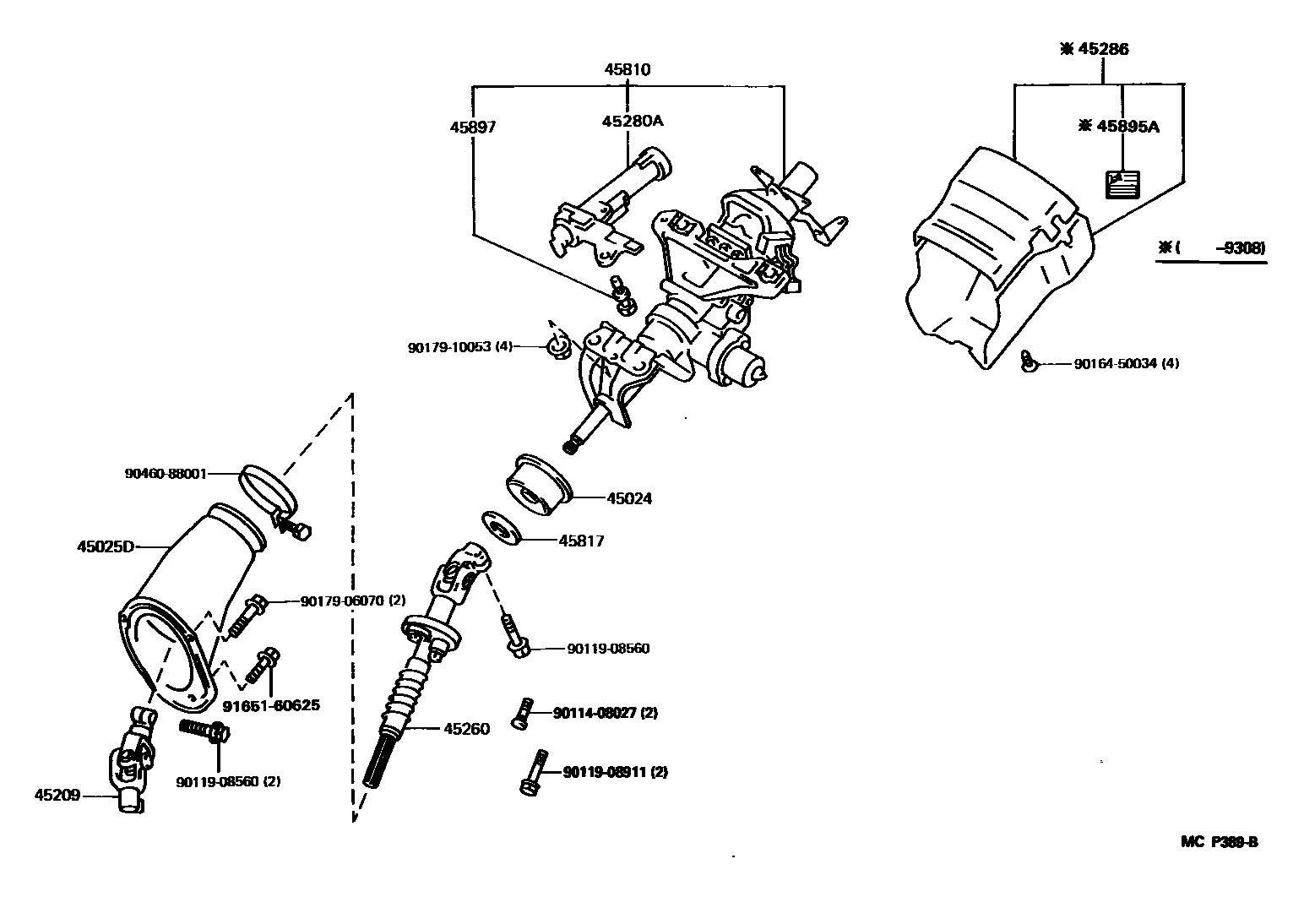

STEERING COLUMN & SHAFT

45024COVER SUB-ASSY, STEERING COLUMN, LOWER

main45026-30010iJZS147199301-199508

main45026-30030iJZS147199508-199708

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-30260iJZS147199301-199708

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-22020iJZS147199301-199708

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-30020iJZS147199301-199708

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-30590iJZS147199301-199708

45286COVER, STEERING COLUMN

main45287-30957-B0iJZS147199301-199308

GRAY,TRIM1#

main45287-30957-E0iJZS147199301-199308

SABLE,TRIM0#

main45287-30957-G0iJZS147199301-199308

SPRUCE GRAY,TRIM6#

main45287-30962-B0iJZS147199308-199708

GRAY,TRIM1#

main45287-30962-E1iJZS147199308-199708

SABLE,TRIM0#

main45287-30962-G0iJZS147199308-199708

SPRUCE GRAY,TRIM6#

45810GEAR ASSY, TILT STEERING, W/MOTOR

main45810-30100iJZS147199301-199708

45817STOPPER, STEERING SHAFT THRUST

main45817-22030iJZS147199301-199708

45895APLATE, TILT STEERING CAUTION

main45895-30140iJZS147199301-199308

45897BOLT, STEERING LOCK SET

main45897-12020×2iJZS147199301-199708

9011408027

main90114-08027

9011908560

main90119-08560

9011908911

main90119-08911

9016450034

main90164-50034

9017906070

main90179-06070

9017910053

main90179-10053

9046088001

main90460-88001

9165160625

main91651-60625

18 parts on this diagram · 1 diagram in section
